AC charging piles offer high charging power. In contrast, DC charging piles can provide higher charging power, but expensive equipment costs make it difficult to promote. AC charging station is different, its equipment cost is cheaper, and through the management of voltage, current and other parameters, the charging power can be increased.
AC charging stations generally provide conventional charging and fast charging—two charging methods. People can use a specific charging card in the charging pile provided by the human-computer interaction interface. Through the corresponding charging operation, the charging pile display can show the charging amount, cost, charging time, and other data.

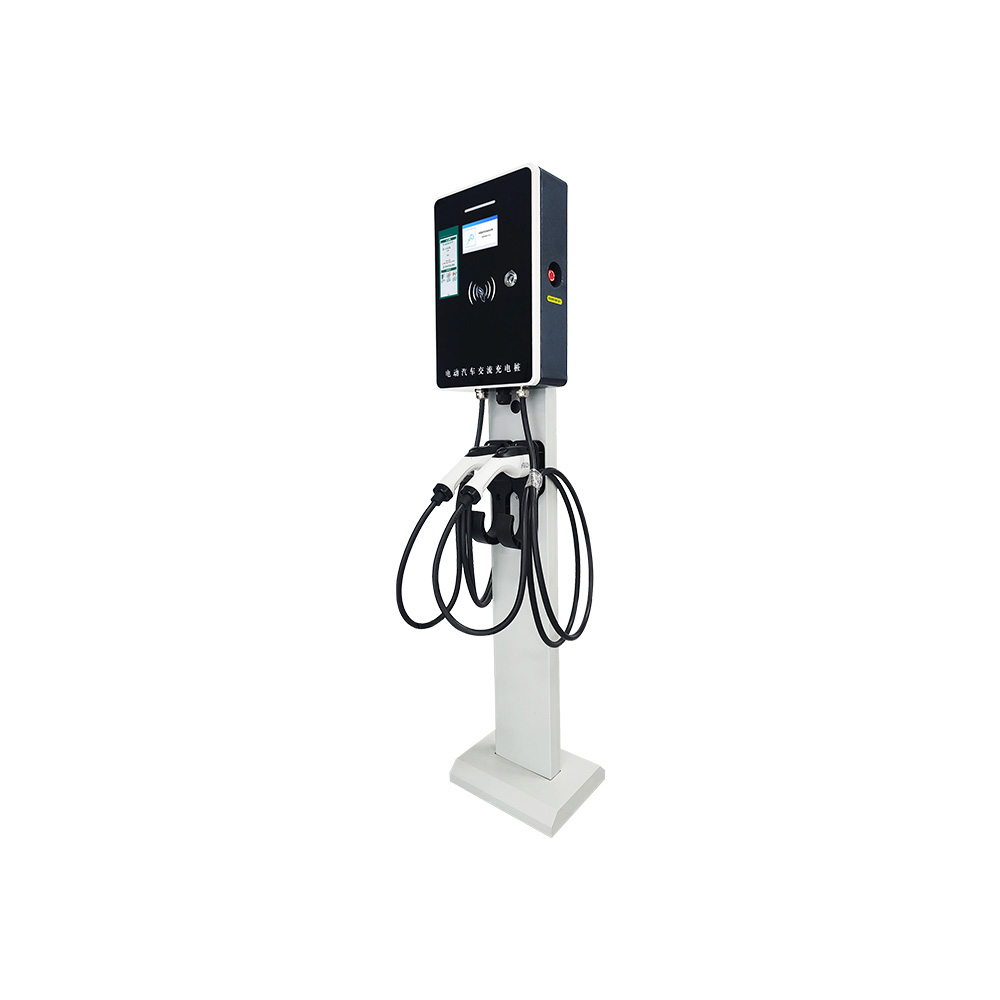

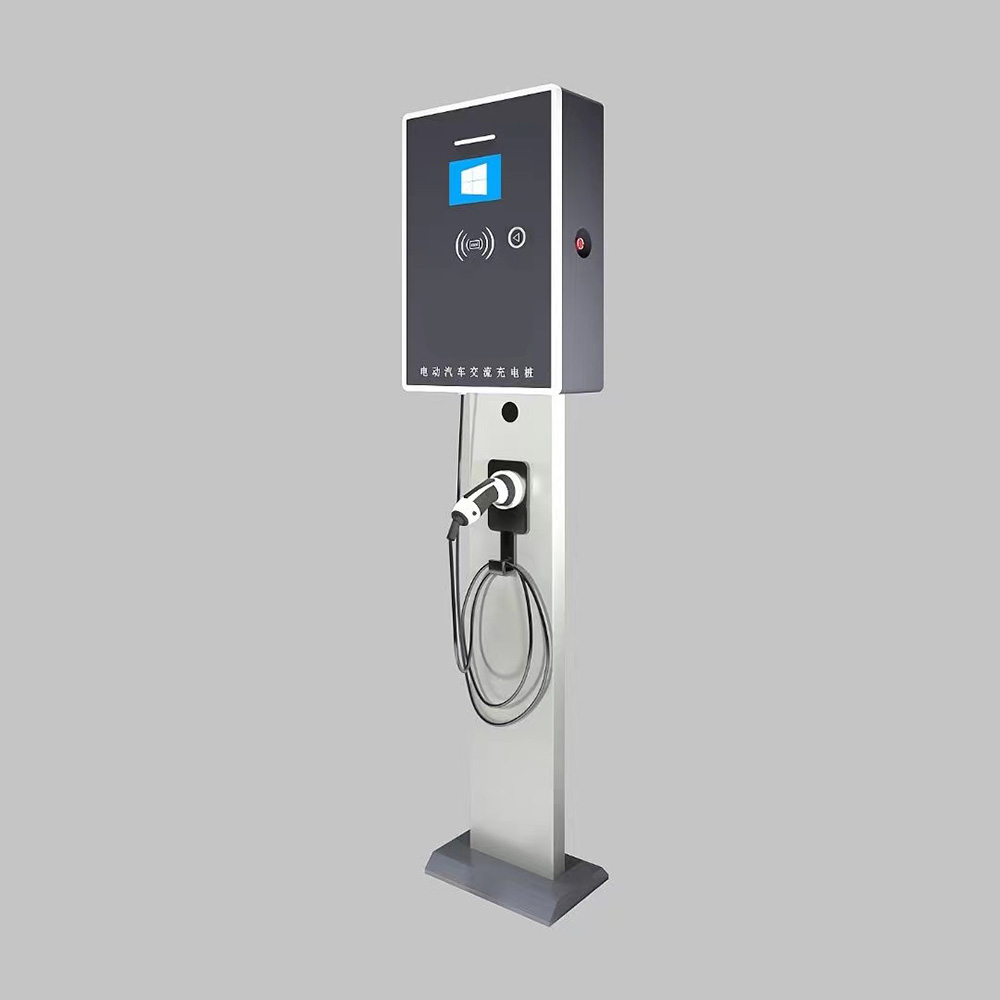

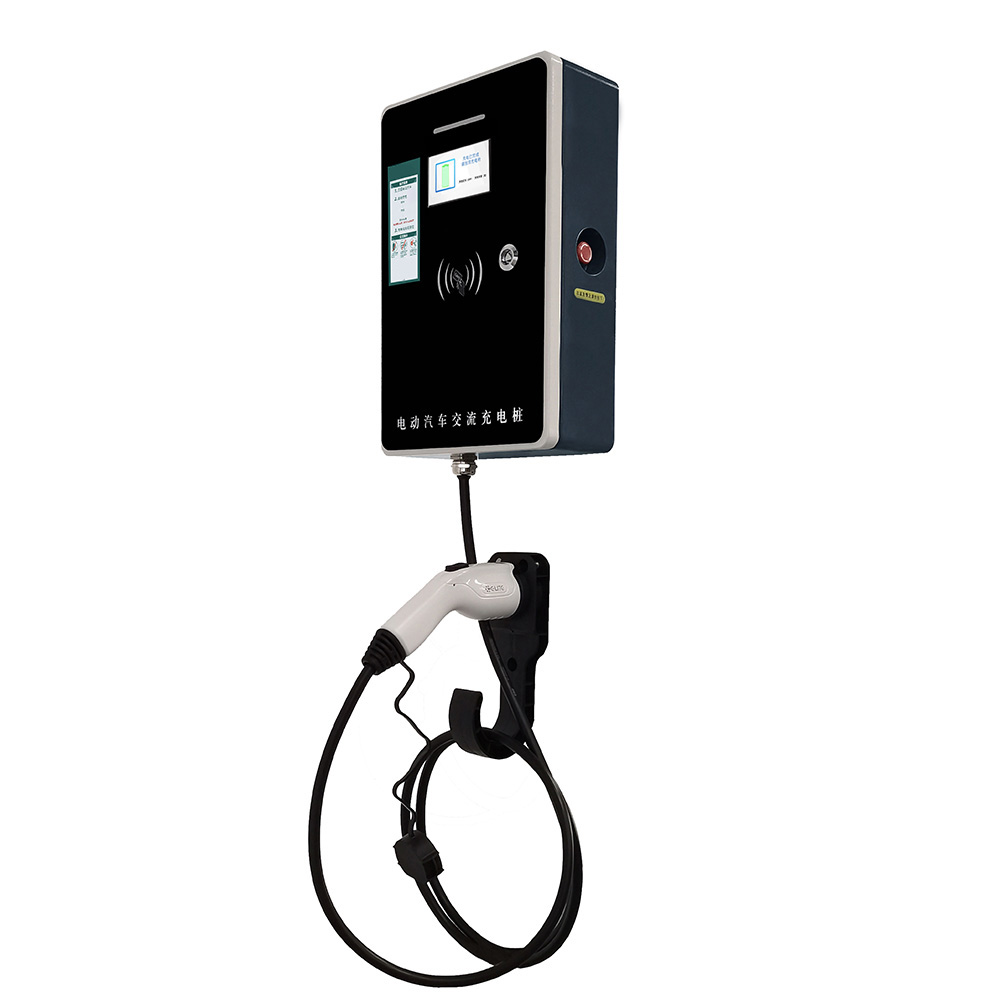

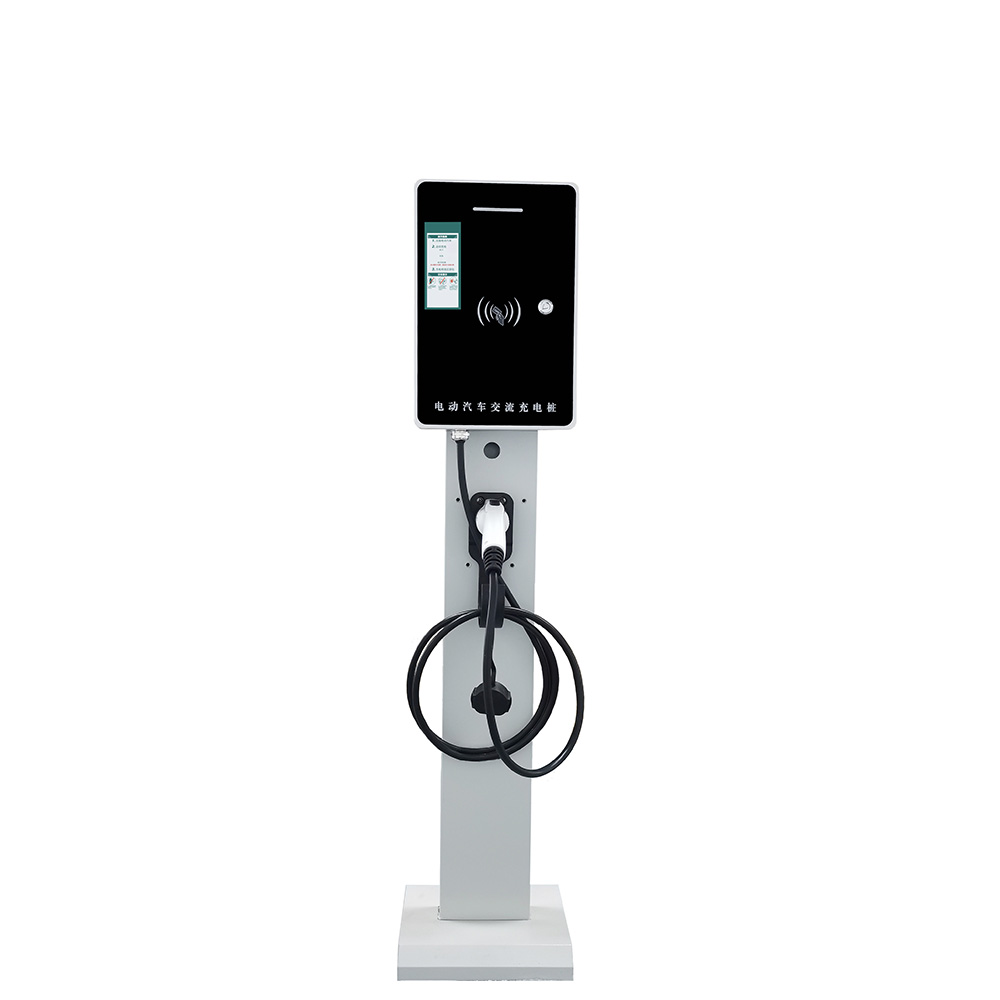

| 7KW AC Double Gun (wall and floor) charging pile | ||
| Unit type | AC-3.5KW/7KW | |
| Technical Parameters | ||
| AC Input | Voltage range (V) | 220±15% |
| Frequency range (Hz) | 45~66 | |
| AC Output | Voltage range (V) | 220 |
| Output Power (KW) | 3.5/7kw | |
| Maximum current (A) | 16/32A | |
| Charging interface | 1/2 | |
| Configure Protection Information | Operation Instruction | Power, Charge, Fault |
| Machine display | No / 4.3-inch display | |
| Charging operation | Swipe the card or scan the code | |
| Metering mode | Hourly rate | |
| Communication | Ethernet (Standard Communication Protocol) | |
| Heat dissipation control | Natural Cooling | |
| Protection level | IP65 | |
| Leakage protection (mA) | 30 | |
| Equipment Other Information | Reliability (MTBF) | 50000 |
| Size (W*D*H) mm | 270*110*1365 (Landing) / 270*110*400 (Wall mounted) | |
| Installation mode | Landing type / Wall mounted type | |
| Routing mode | Up (down) into line | |
| Working Environment | Altitude (m) | ≤2000 |
| Operating temperature (℃) | -20~50 | |
| Storage temperature (℃) | -40~70 | |
| Average relative humidity | 5%~95% | |
| Optional | 4G Wireless Communication | Charging gun 5m |
AC charging piles are widely used in homes, offices, public parking lots, urban roads, and other places, providing convenient and fast charging services for electric vehicles. With the popularization of electric vehicles, the application range will gradually expand.
