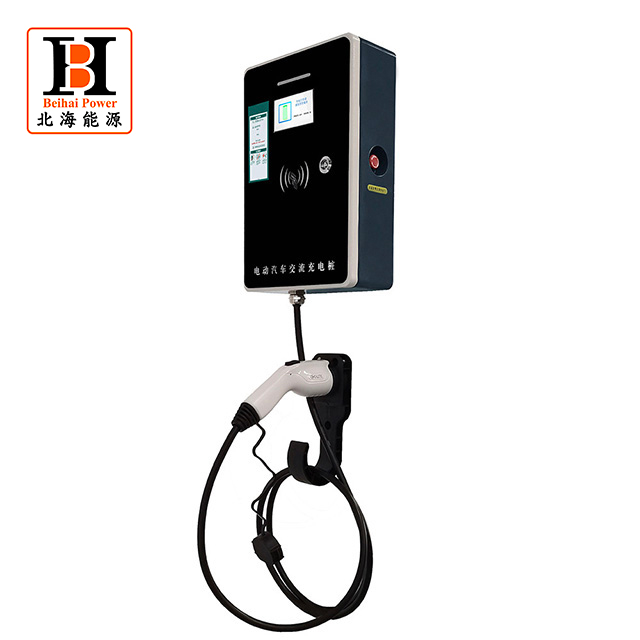

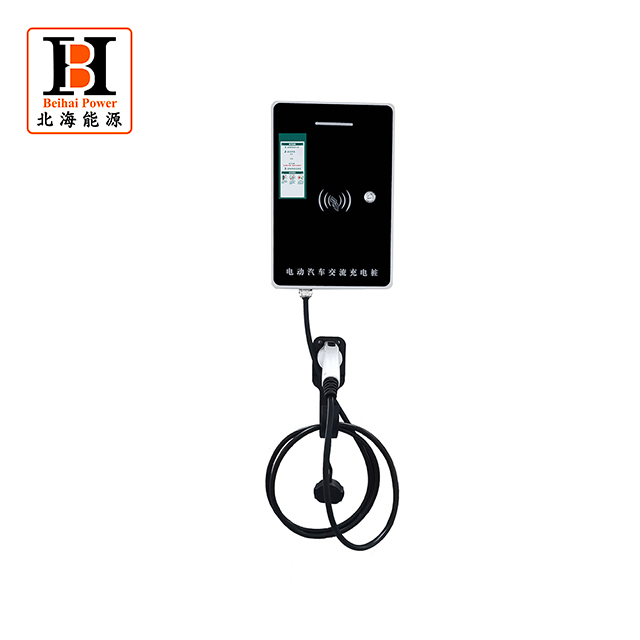

Wholesale AC 7KW Wall Hanging Charging Pile Manufacturer, Factory
Wholesale AC 7KW Wall Hanging Charging Pile Manufacturer, Factory
1 / 2
Wholesale AC 7KW Wall Hanging Charging Pile Manufacturer, Factory
Wholesale AC 7KW Wall Hanging Charging Pile Manufacturer, Factory

Wholesale AC 7KW Wall Hanging Charging Pile Manufacturer, Factory

7KW single and double gun AC charging pile is a charging equipment developed to meet the charging needs of new energy vehicles, and is used in conjunction with electric vehicle chargers to provide charging services for electric vehicles. The product is easy to install, small footprint, easy to operate, stylish appearance, suitable for private parking garages, public parking lots, residential parking lots, enterprise parking lots and other types of open-air and indoor parking lots.
Send Inquiry

Product Description

i
Product Description
The AC 7kW charging pile is suitable for charging stations that provide AC charging for electric vehicles. The pile mainly consists of human-computer interaction unit, control unit, metering unit and safety protection unit. It can be wall-mounted or installed outdoors with mounting columns, and supports payment by credit card or cell phone, which is characterized by high degree of intelligence, easy installation and operation, and simple operation and maintenance. It is widely used in bus groups, highways, public parking lots, commercial centers, residential communities and other electric vehicle rapid charging places.

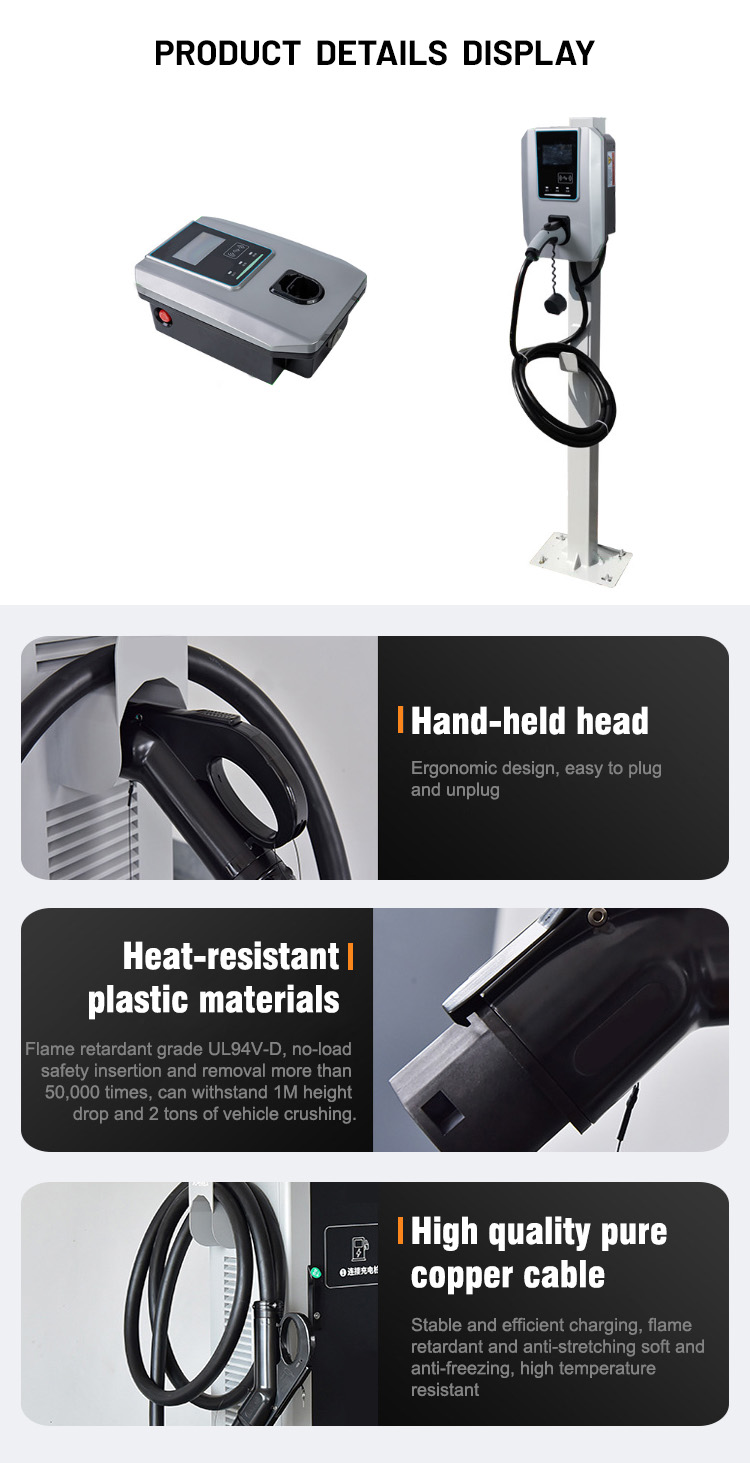

AC 7kW Charging Pile Details
★
Product Features
1. Worry-free Charging Supporting 220V voltage input, it can prioritize to solve the problem of charging pile can't be charged normally due to long power supply distance, low voltage, voltage fluctuation and so on in remote areas.
2. Installation Flexibility The charging pile covers a small area and is light in weight. There is no special requirement for power supply, it is more suitable for installation on the ground in the site with limited space and power distribution, and a worker can realize rapid installation in 30 minutes.
3. Stronger Anti-collision Charging pile with IK10 strengthened anti-collision design, can withstand a high 4 meters, heavy 5KG object impact effective construction of common stock collision caused by equipment damage, can greatly reduce the cost of maintenance and improve service life.
4. 9 Heavy Protection IP54, over-undervoltage, national six, leakage, disconnection, abnormal status, BMS abnormal, emergency stop, and product liability insurance.
5. High Efficiency & Intelligence Intelligent algorithm module efficiency greater than 98%, intelligent temperature control, self-service equalization, constant power charging, low power consumption, and efficient maintenance.
Charging Pile Features
📋
Product Specification
Model Name HDRCDZ-B-32A-7KW-1
AC Nominal Input Voltage(V) 220±15% AC
Frequency(Hz) 45-66 Hz
AC Nominal Output Voltage(V) 220AC
Power(KW) 7KW
Current 32A
Charging Port 1
Cable Length 3.5M
Configure and Protect Information LED Indicator Green/yellow/red color for different status
Screen 4.3 Inch industrial screen
Charging Operation Swiping Card
Energy Meter MID certified
Communication Mode Ethernet network
Cooling Method Air cooling
Protection Grade IP 54
Earth Leakage Protection 30 mA
Other Information Reliability(MTBF) 50000H
Installation Method Column or wall hanging
Environmental Index Working Altitude <2000M
Operating Temperature -20ºC to 60ºC
Working Humidity 5%~95% without condensation
Product Appliance
?
FAQ
What is the output power of this charging pile?
The charging pile provides a nominal AC output of 7kW with a 32A current, making it ideal for rapid charging of standard electric vehicles.
Can this unit be installed outdoors?
Yes, it features an IP54 protection grade and an IK10 anti-collision design, making it durable for both indoor and outdoor environments like public parking lots and commercial centers.
What payment methods are supported?
The system is highly intelligent and supports convenient payment options through credit cards or mobile phone applications.
Is it difficult to install?
Not at all. It is designed for flexibility and can be wall-mounted or installed on a column. A professional worker can typically complete the installation in about 30 minutes.
What safety protections are included?
It includes 9 layers of protection, such as over-undervoltage protection, leakage protection, emergency stop, and BMS abnormal detection, ensuring a worry-free charging experience.
How do I know the charging status?
The unit is equipped with a 4.3-inch industrial screen and LED indicators (Green/Yellow/Red) to provide clear, real-time status updates during the charging process.
