Product Description

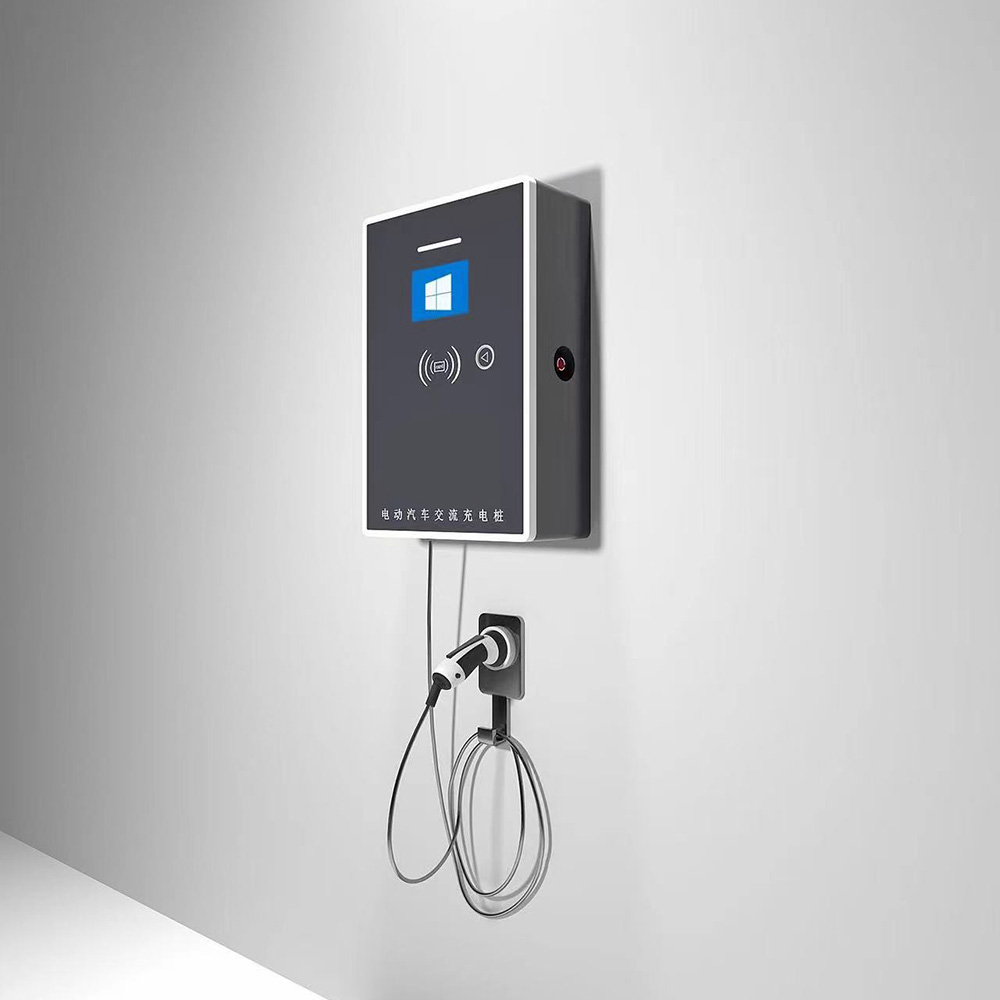

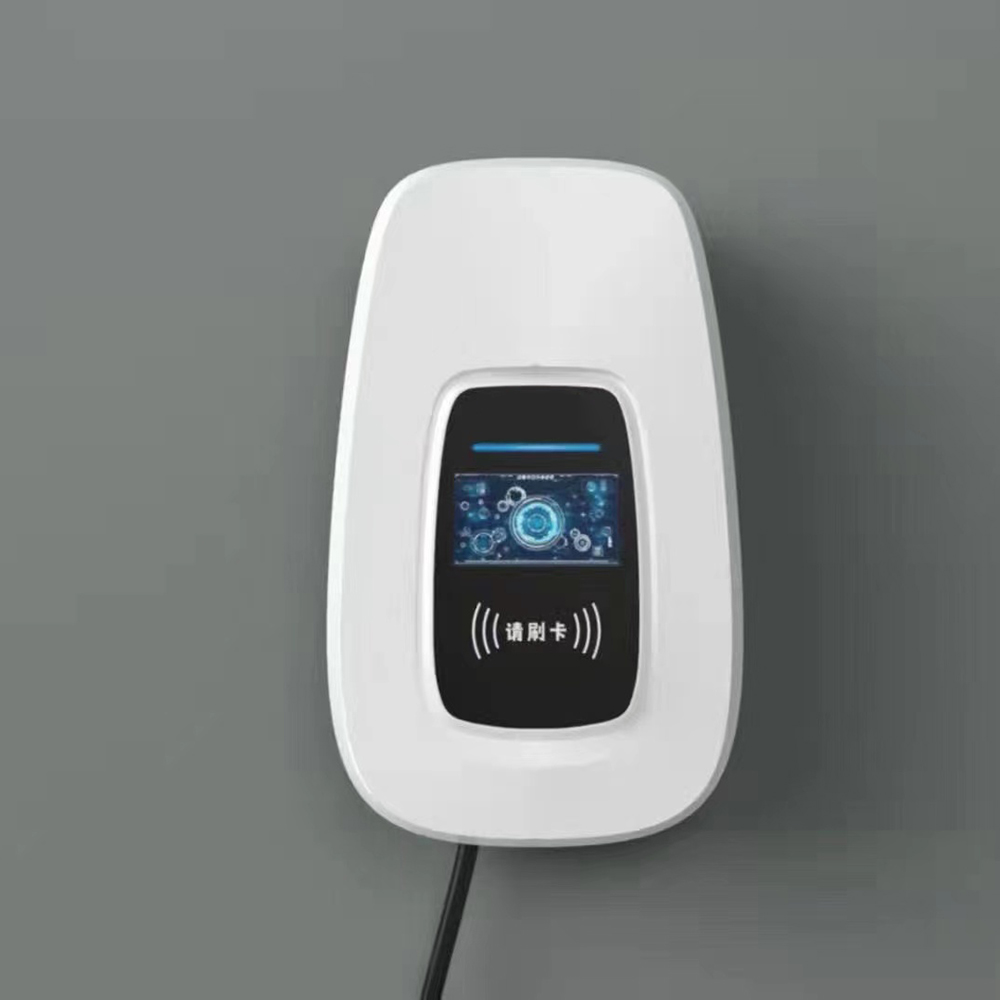

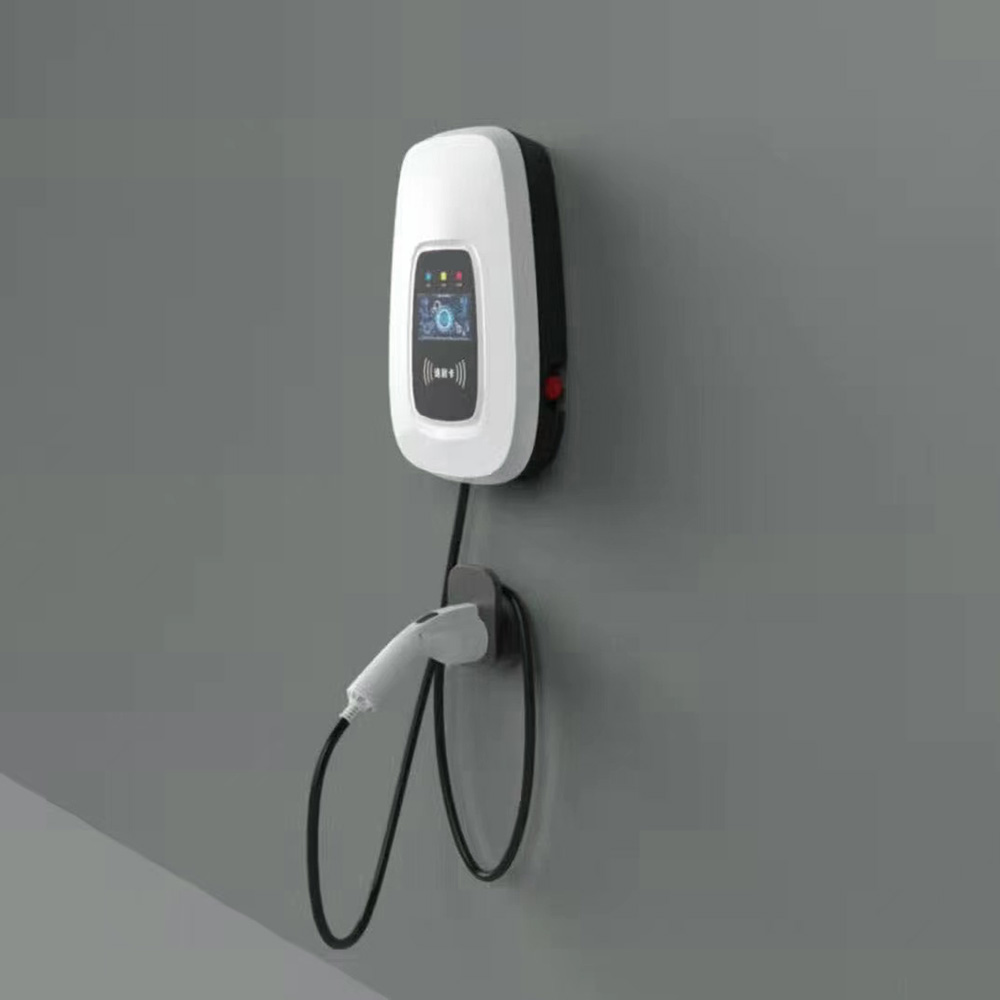

The wall-mounted 7KW AC charger is a charging device designed for home users. The 7KW charging power is able to meet the daily home charging needs without overburdening the home power grid, making the charging post both economical and practical. The wall-mounted design allows the charger to be easily installed in home garages, car parks or on outdoor walls, saving space and making charging more convenient. Equipped with intelligent control functions, it can automatically recognize the battery status and charging demand of the EV, intelligently adjusting parameters to ensure safety and efficiency. It is an ideal choice for home users with its moderate power, convenient installation, high safety, and smart features.
Product Parameters
| Equipment Models |
BHAC-7KW |
| Technical Parameters |
| AC Input |
Voltage range (V) |
220 ± 15% |
| Frequency range (Hz) |
45~66 |
| AC Output |
Voltage range (V) |
220 |
| Output Power (KW) |
7 |
| Maximum current (A) |
32 |
| Interface |
Charging interface |
1 |
| Configuration & Protection |
| Instructions |
Operation Instruction |
Power, Charge, Fault |
| Display |
Man-machine display |
No / 4.3-inch display |
| Operation |
Charging operation |
Swipe card or scan code |
| Metering |
Metering mode |
Hourly rate |
| Communication |
Communication |
Ethernet (Standard Protocol) |
| Safety |
Protection level |
IP65 |
| Leakage |
Leakage protection (mA) |
30 |
| Working Environment |
| Temperature |
Operating temperature |
-20℃ ~ 50℃ |
| Humidity |
Average relative humidity |
5% ~ 95% |
| Optional |
4G Wireless, 5m Charging gun, Floor mounting bracket |
Applications
Home Charging
Perfect for residential homes to provide AC power to EVs with on-board chargers.

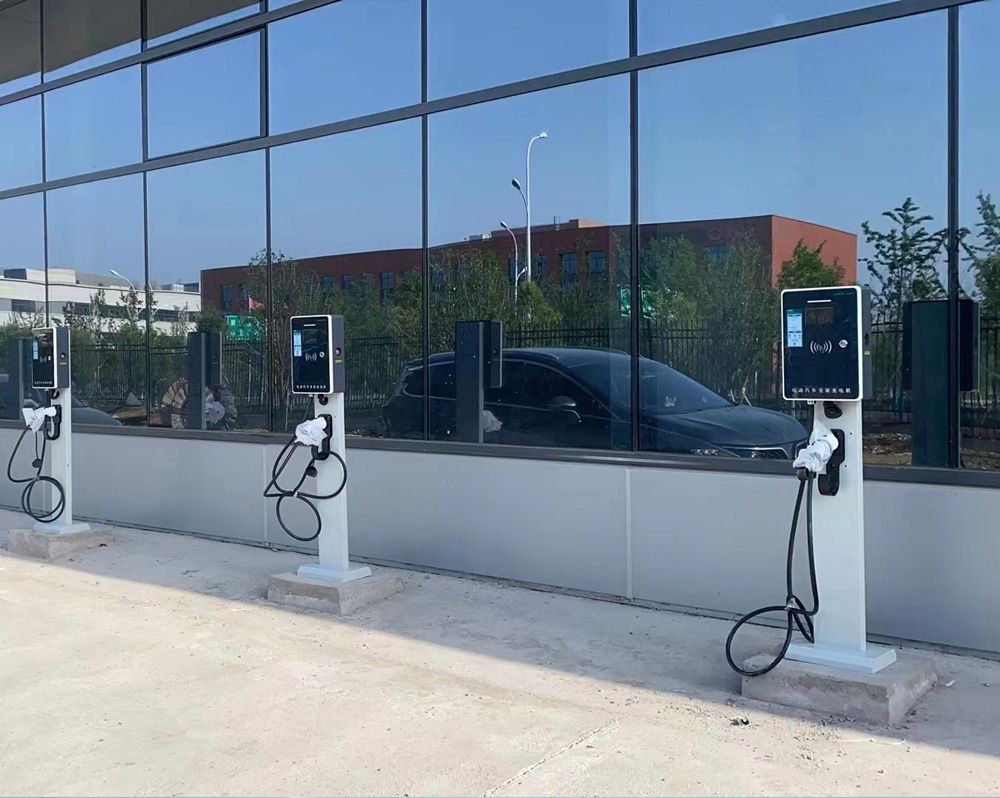

Commercial Car Parks
Ideal for installation in commercial parking lots to serve visiting EV owners.
Public Charging Stations
Suitable for bus stops, public squares, and motorway service areas.
Hospitality & Retail
Convenient for shopping malls, hotels, and urban public areas.
Scenic Spots
Facilitates tourists charging their vehicles, improving the overall travel experience.
Frequently Asked Questions
Is the 7KW charger suitable for outdoor installation?
Yes, the charger features an IP65 protection rating, making it highly resistant to dust and water, suitable for both indoor and outdoor wall-mounted installations.
How do I start the charging process?
Users can start charging by swiping a designated card or scanning a QR code, depending on the specific configuration of the unit.
What safety protections are included?
The charger includes 30mA leakage protection, intelligent battery status recognition, and automatic adjustment of charging parameters to ensure a safe process.
Can this charger be mounted on the floor?

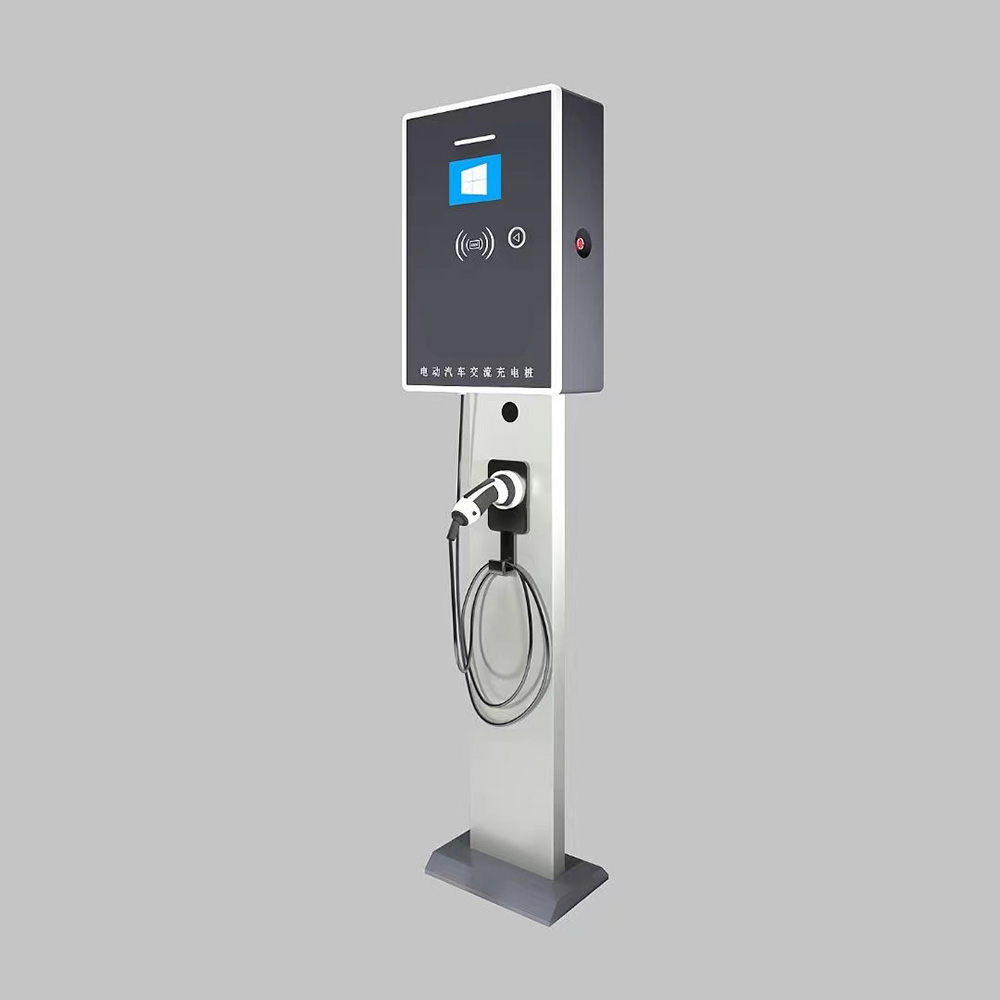

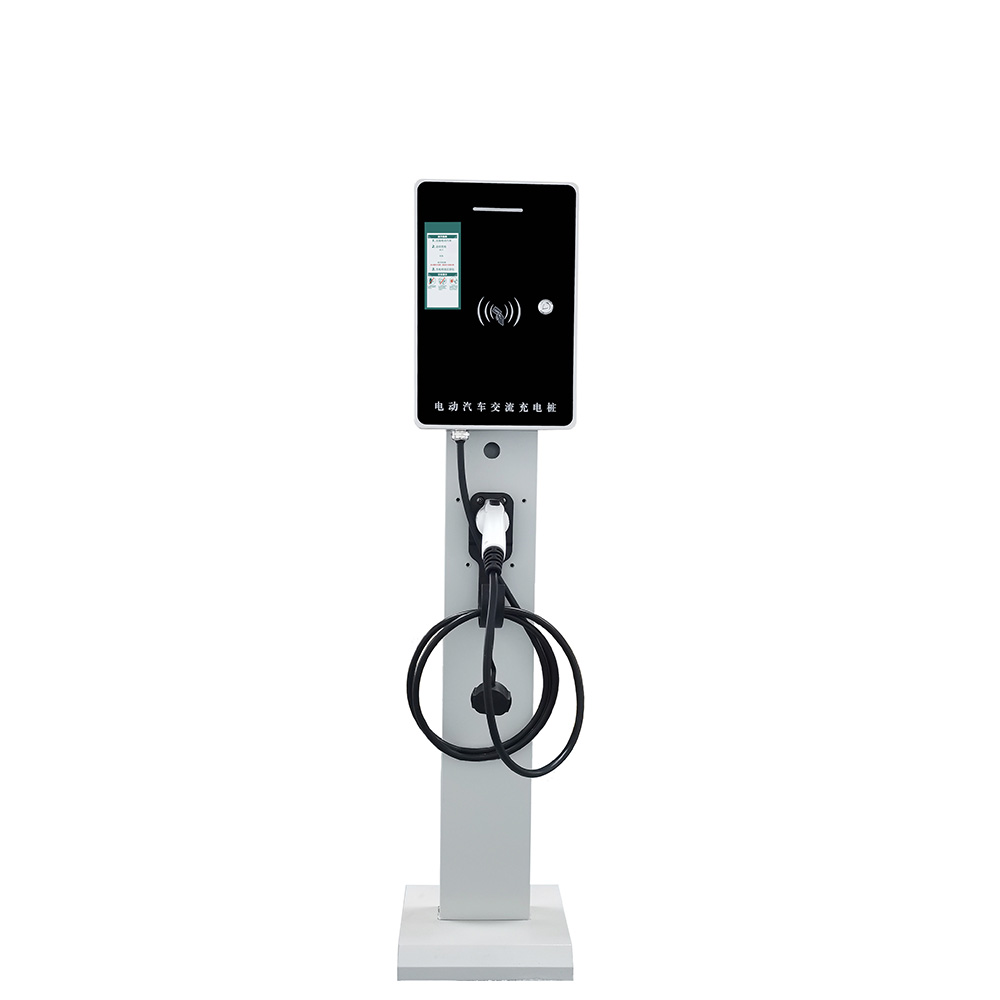

While designed primarily as a wall-mounted unit, a floor mounting bracket is available as an optional accessory for ground installation.
What is the operating temperature range?
The device is designed to operate reliably in environments ranging from -20°C to 50°C.
Does it support smart communication?
Yes, it supports standard Ethernet communication protocols, and 4G wireless communication is available as an optional feature.
