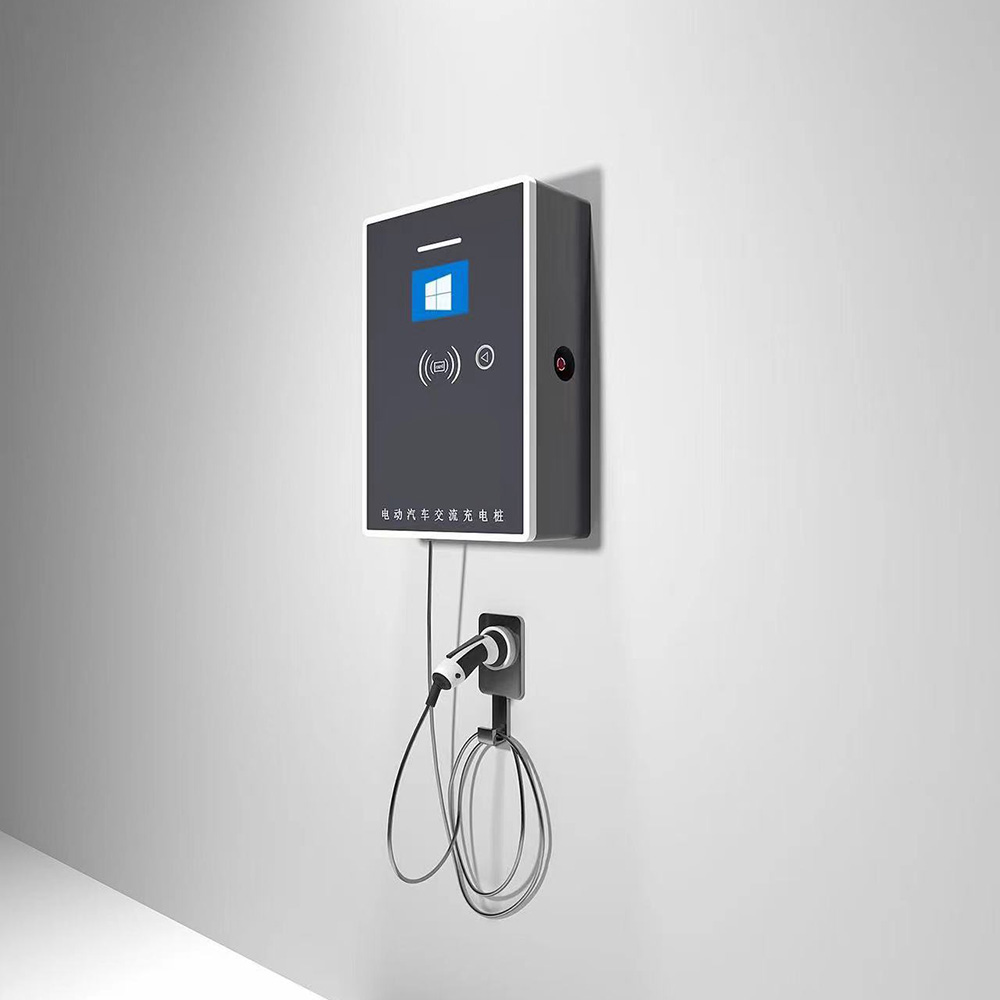

China Wall-mounted Type2 7KW EV Charger AC Charing Station For Home Manufacturers, Suppliers
China Wall-mounted Type2 7KW EV Charger AC Charing Station For Home Manufacturers, Suppliers
China Wall-mounted Type2 7KW EV Charger AC Charing Station For Home Manufacturers, Suppliers
China Wall-mounted Type2 7KW EV Charger AC Charing Station For Home Manufacturers, Suppliers
China Wall-mounted Type2 7KW EV Charger AC Charing Station For Home Manufacturers, Suppliers
1 / 5
China Wall-mounted Type2 7KW EV Charger AC Charing Station For Home Manufacturers, Suppliers
China Wall-mounted Type2 7KW EV Charger AC Charing Station For Home Manufacturers, Suppliers
China Wall-mounted Type2 7KW EV Charger AC Charing Station For Home Manufacturers, Suppliers
China Wall-mounted Type2 7KW EV Charger AC Charing Station For Home Manufacturers, Suppliers
China Wall-mounted Type2 7KW EV Charger AC Charing Station For Home Manufacturers, Suppliers

China Wall-mounted Type2 7KW EV Charger AC Charing Station For Home Manufacturers, Suppliers

The principle of using 7KW AC charging pile is mainly based on electric energy conversion and transmission technology. Specifically, this kind of charging pile inputs household 220V AC power into the interior of the charging pile, and through internal rectification, filtering and other processing, converts the AC power into DC power suitable for charging electric vehicles. Then, through the charging ports (including plugs and sockets) of the charging pile, the electric energy is transmitted to the battery of the electric vehicle, thus realising the charging of the electric vehicle.
Send Inquiry

Product Description

Product Description
The principle of using 7KW AC charging pile is mainly based on electric energy conversion and transmission technology. Specifically, this kind of charging pile inputs household 220V AC power into the interior of the charging pile, and through internal rectification, filtering and other processing, converts the AC power into DC power suitable for charging electric vehicles. Then, through the charging ports (including plugs and sockets) of the charging pile, the electric energy is transmitted to the battery of the electric vehicle, thus realising the charging of the electric vehicle.
In this process, the control module of the charging pile plays a key role. It is responsible for monitoring and controlling the operating status of the charging pile, communicating and interacting with the electric vehicle, and adjusting the output parameters, such as voltage and current, according to the charging demand of the electric vehicle. At the same time, the control module also monitors various parameters in the charging process in real time, such as battery temperature, charging current, charging voltage, etc., to ensure the safety and reliability of the charging process.
advantage
Product Parameters

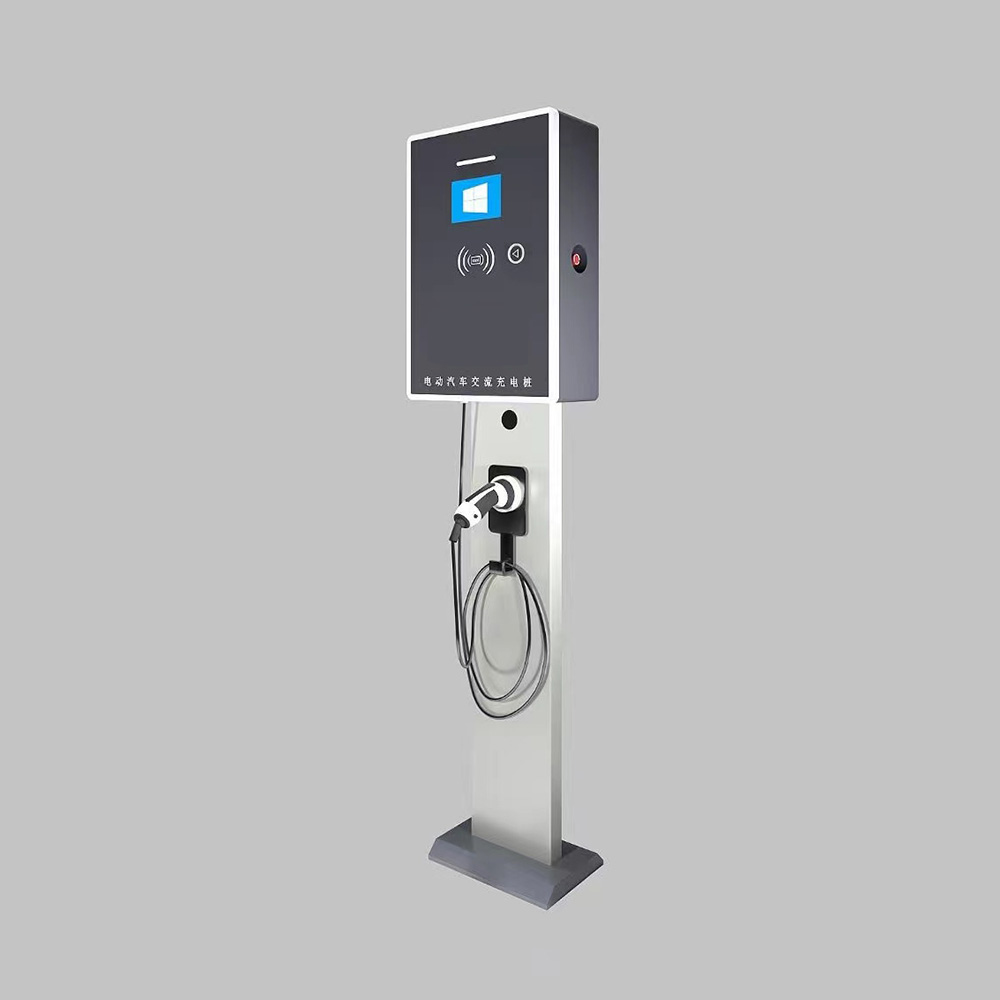

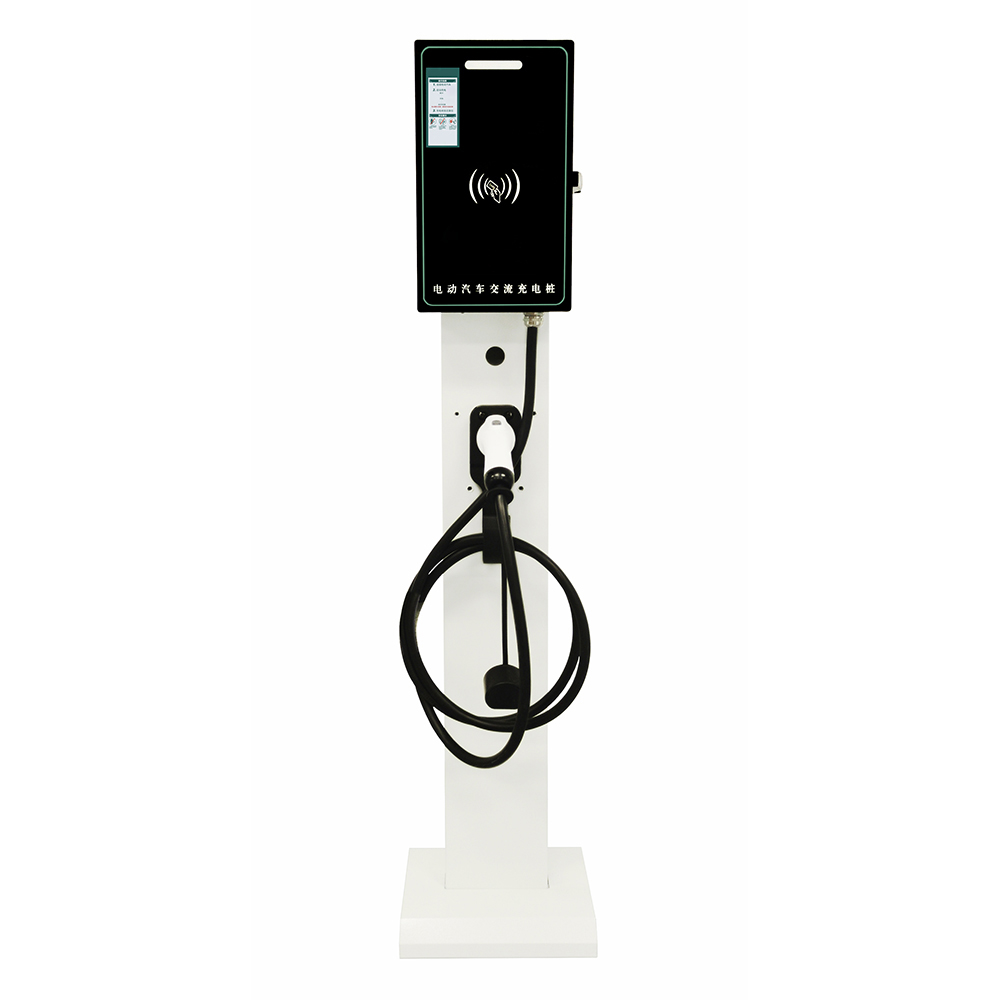

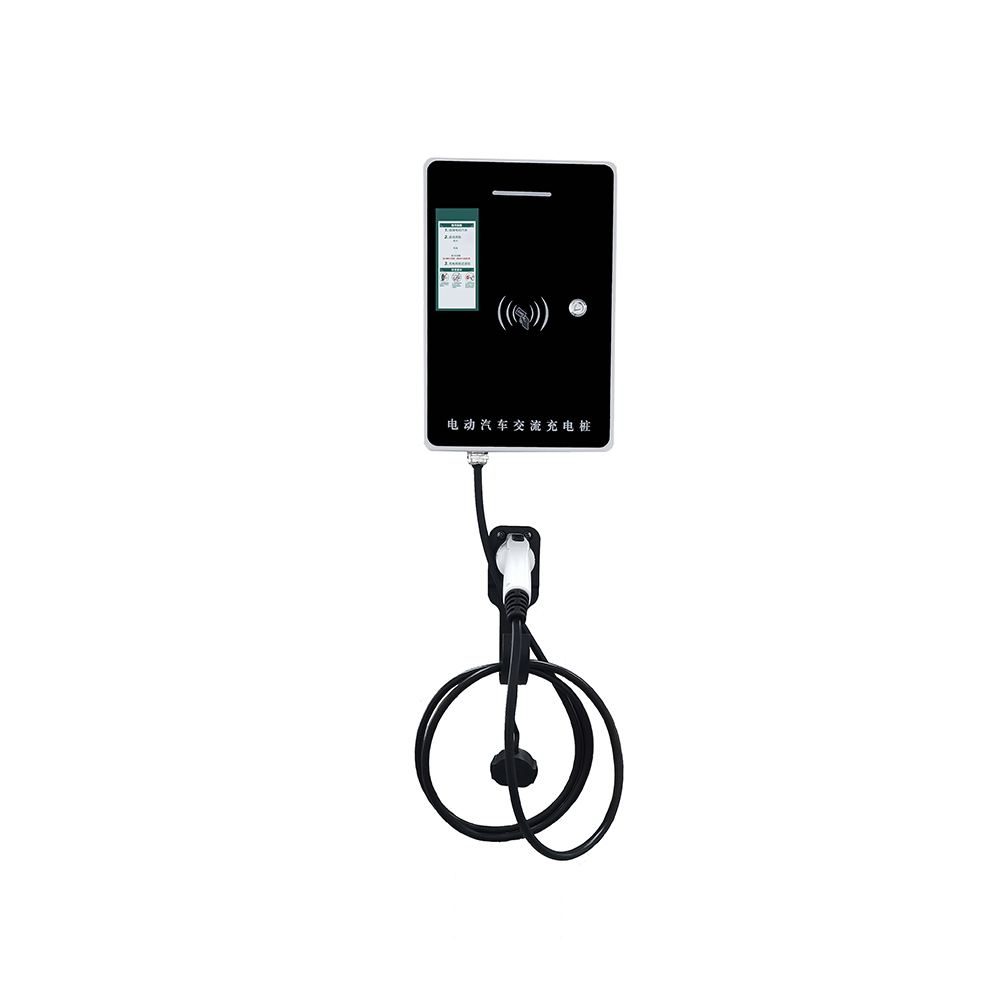

7KW AC Single port (wall-mounted and floor-mounted) charging pile
Equipment Models BHAC-7KW
Technical parameters
AC input Voltage range (V) 220±15%
Frequency range (Hz) 45~66
AC output Voltage range (V) 220
Output Power (KW) 7
Maximum current (A) 32
Charging interface 1
Configure Protection Operation Instruction Power, Charge, Fault
Man-machine display No/4.3-inch display
Charging operation Swipe the card or scan the code
Metering mode Hourly rate
Communication Ethernet(Standard Protocol)
Heat dissipation Natural Cooling
Protection level IP65
Leakage protection(mA) 30
Equipment Other Information
General Info Reliability (MTBF) 50000
Size (W*D*H) mm 270*110*1365 (Landing) / 270*110*400 (Wall)
Installation mode Landing type / Wall mounted type
Routing mode Up (down) into line
Working Env Altitude (m) ≤2000
Operating temp(℃) -20~50
Storage temp(℃) -40~70
Relative humidity 5%~95%
Optional 4G Wireless Communication / 5m Charging gun / Floor bracket
Product Feature
PRODUCT DETAILS DISPLAY

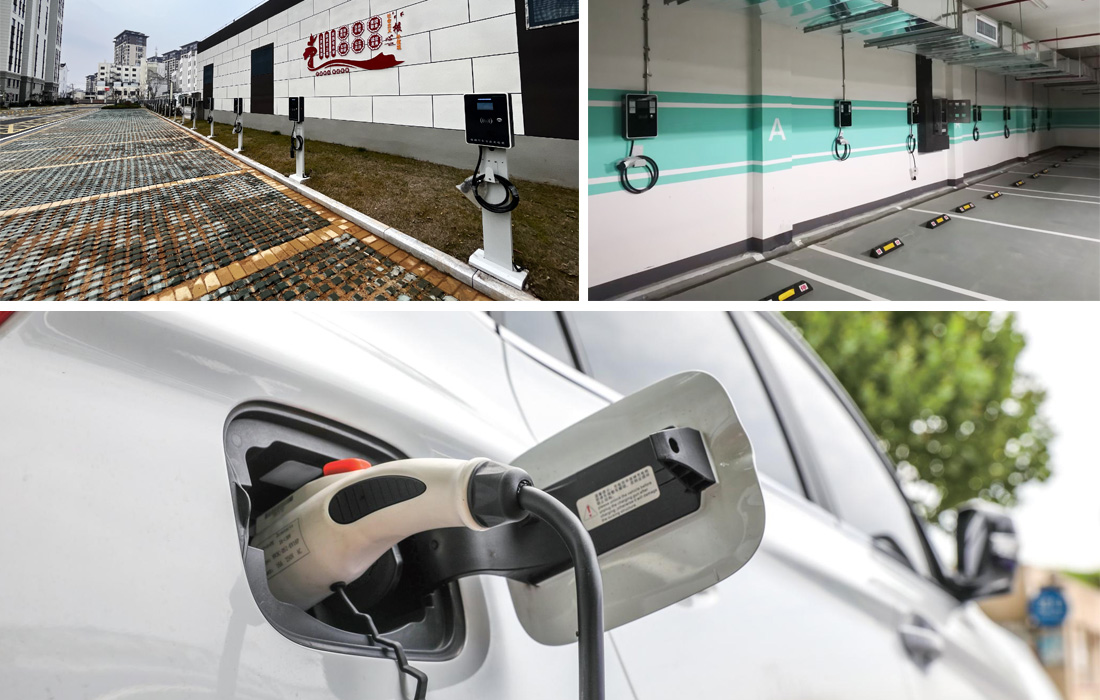

Application
Ac charging piles are widely used in homes, offices, public parking lots, urban roads and other places, and can provide convenient and fast charging services for electric vehicles. With the popularization of electric vehicles and the continuous development of technology, the application range of AC charging piles will gradually expand.
appliance
advantages of AC chargers
Frequently Asked Questions
What is the charging speed of this 7KW AC charging pile?
The 7KW AC charger typically provides about 30-45 kilometers of range per hour of charging, depending on the vehicle's onboard charger efficiency.
Is it safe to install the charger outdoors?
Yes, the device features an IP65 protection rating, which means it is completely protected against dust and can withstand low-pressure water jets from any direction.
Can I install this charger in my private garage?
Absolutely. It supports wall-mounted installation, making it ideal for residential garages or private parking spaces using a standard 220V AC supply.
What kind of electric vehicles are compatible with this pile?
It is compatible with all electric vehicles and plug-in hybrids that adhere to standard AC charging protocols.
What safety protections are included?
The unit includes comprehensive protection features such as leakage protection (30mA), over-voltage, under-voltage, and natural cooling to manage heat dissipation.
How do I start the charging process?
The device supports convenient operation modes, including swiping a dedicated RFID card or scanning a code via a mobile app to initiate charging.
