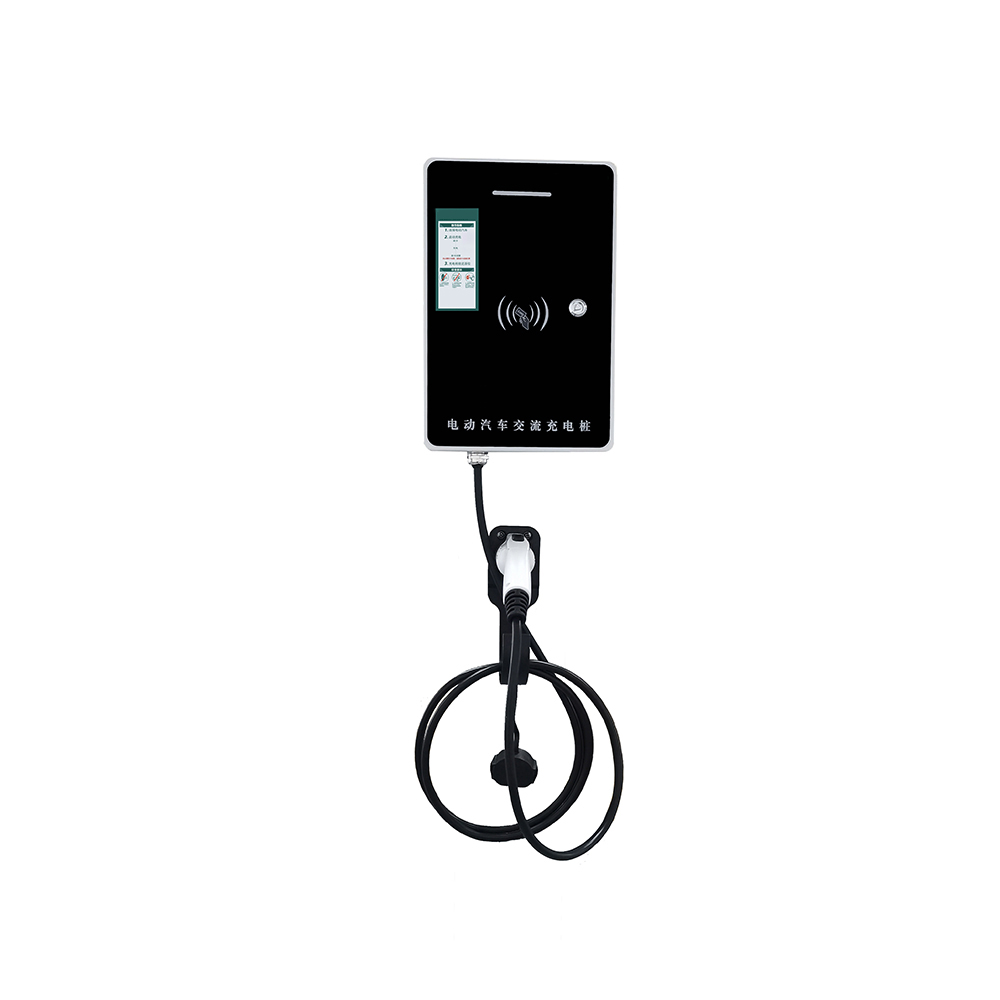

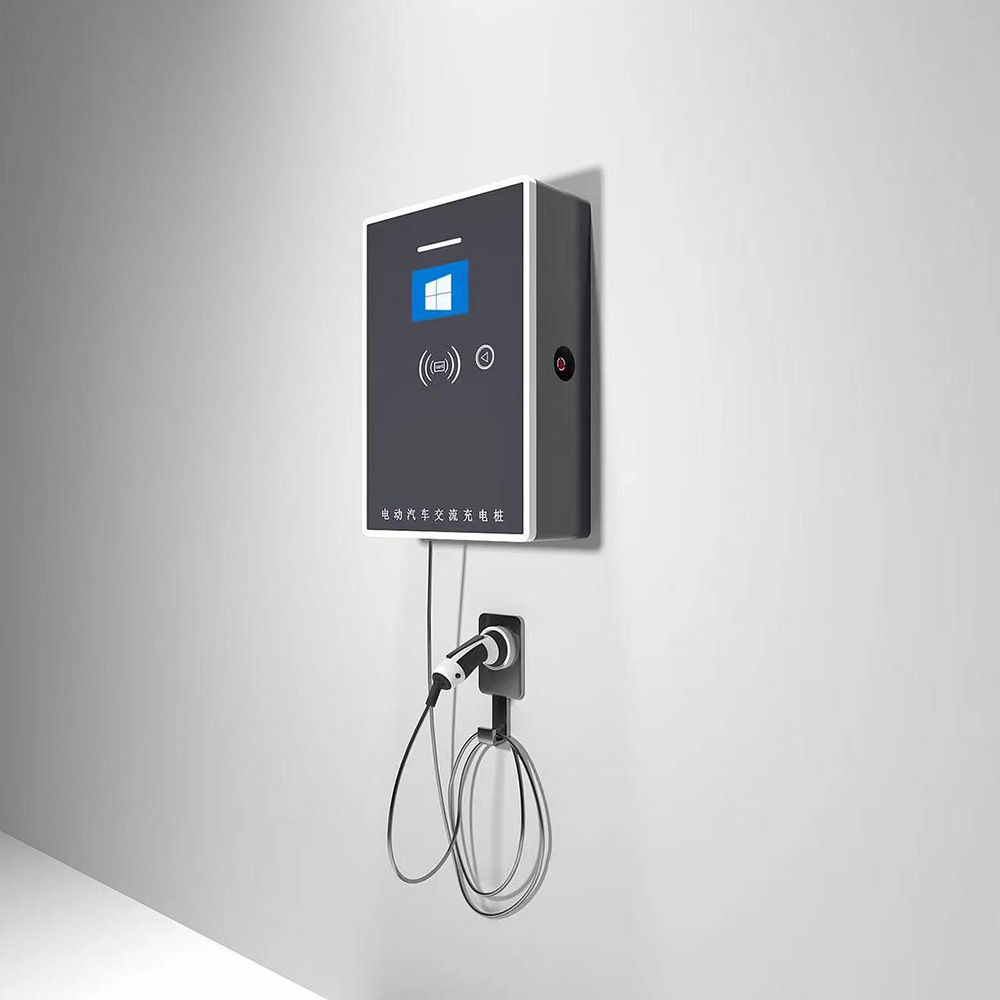

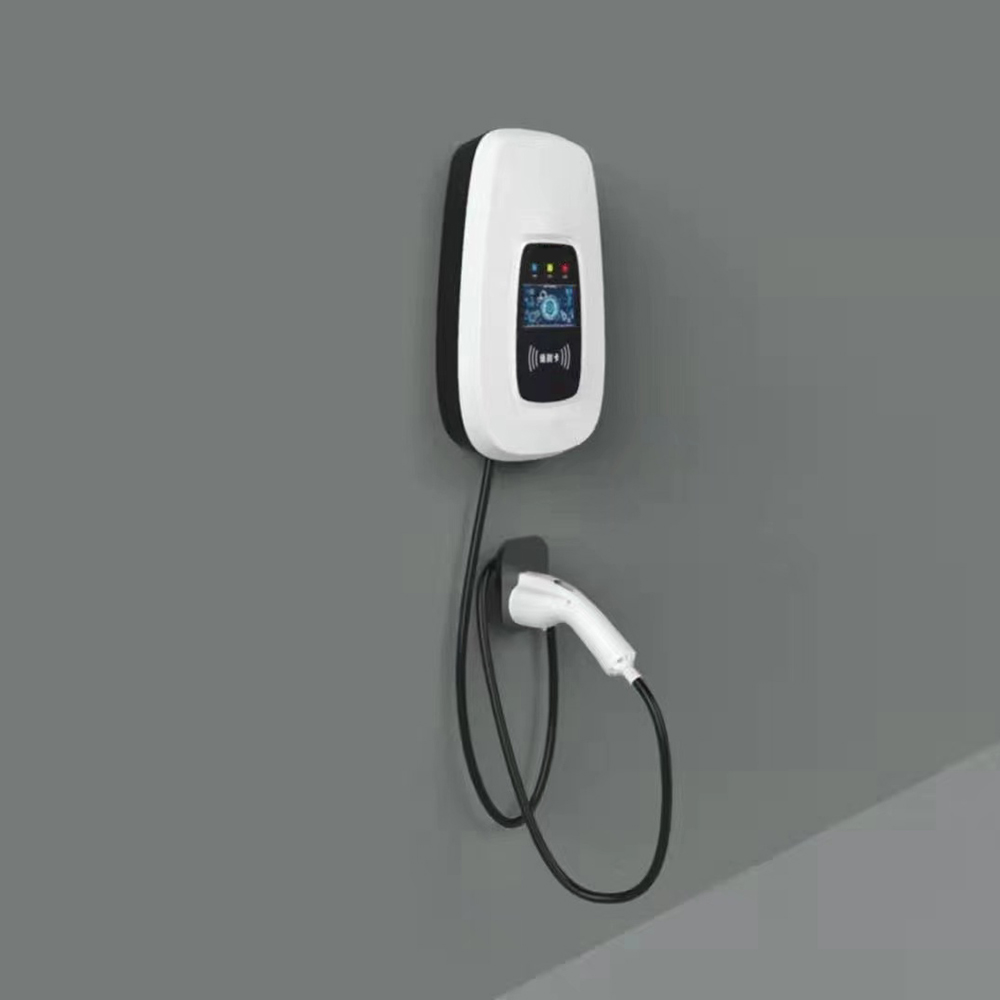

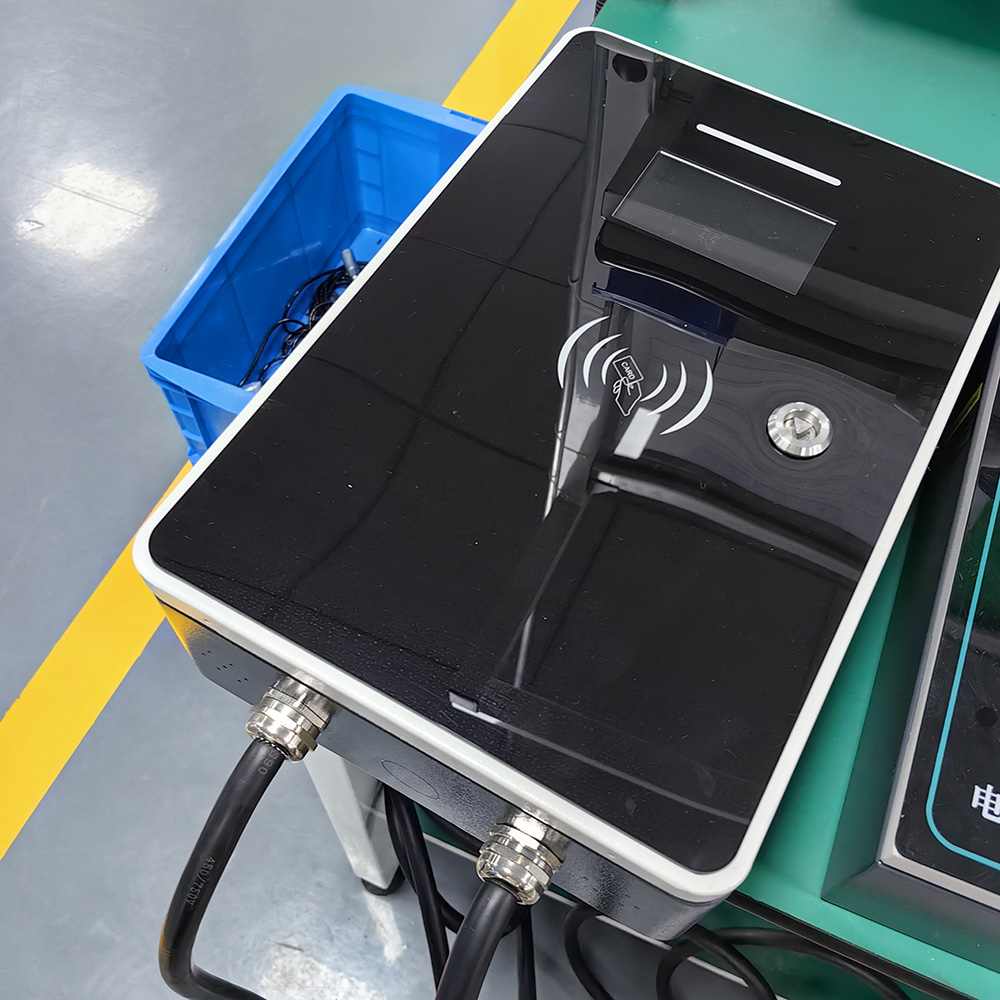

The 7KW charging pile belongs to the national standard AC pile, which can charge the electric car with its own on-board charger. The power is actually controlled by the charger, and the output current of the charging pile is 32A when it is about 7KW power.
The advantage of 7KW AC charging pile is that the charging speed is slower, but relatively stable, suitable for use at home, office and other places. Because of its lower power, it also has less impact on the load of the power grid, which is helpful for the stability of the power system. In addition, the 7kw charging pile has a longer service life, lower maintenance costs and higher reliability.
| 7KW AC Dual Port (Wall and Floor) Charging Pile | ||
|---|---|---|
| Unit Type | BHAC-B-32A-7KW | |
| Technical Parameters | ||
| AC Input | Voltage range (V) | 220±15% |
| Frequency range (Hz) | 45~66 | |
| AC Output | Voltage range (V) | 220 |
| Output Power (KW) | 7 | |
| Maximum current (A) | 32 | |
| Charging interface | 1/2 | |
| Configure Protection Information | Operation Instruction | Power, Charge, Fault |
| Machine display | No/4.3-inch display | |
| Charging operation | Swipe the card or scan the code | |
| Metering mode | Hourly rate | |
| Communication | Ethernet (Standard Communication Protocol) | |
| Heat dissipation control | Natural Cooling | |
| Protection level | IP65 | |
| Leakage protection (mA) | 30 | |
| Equipment Other Information | Reliability (MTBF) | 50000 |
| Size (W*D*H) mm | 270*110*1365 (Landing) / 270*110*400 (Wall mounted) | |
| Installation mode | Landing type / Wall mounted type | |
| Routing mode | Up (down) into line | |
| Working Environment | Altitude (m) | ≤2000 |
| Operating temperature(℃) | -20~50 | |
| Storage temperature(℃) | -40~70 | |
| Average relative humidity | 5%~95% | |
| Optional | 4G Wireless Communication Or Charging gun 5m | |
AC charging piles are widely used in homes, offices, public parking lots, urban roads and other places, and can provide convenient and fast charging services for electric vehicles. With the popularization of electric vehicles and the continuous development of technology, the application range of AC charging piles will gradually expand.
