✓ Product Description

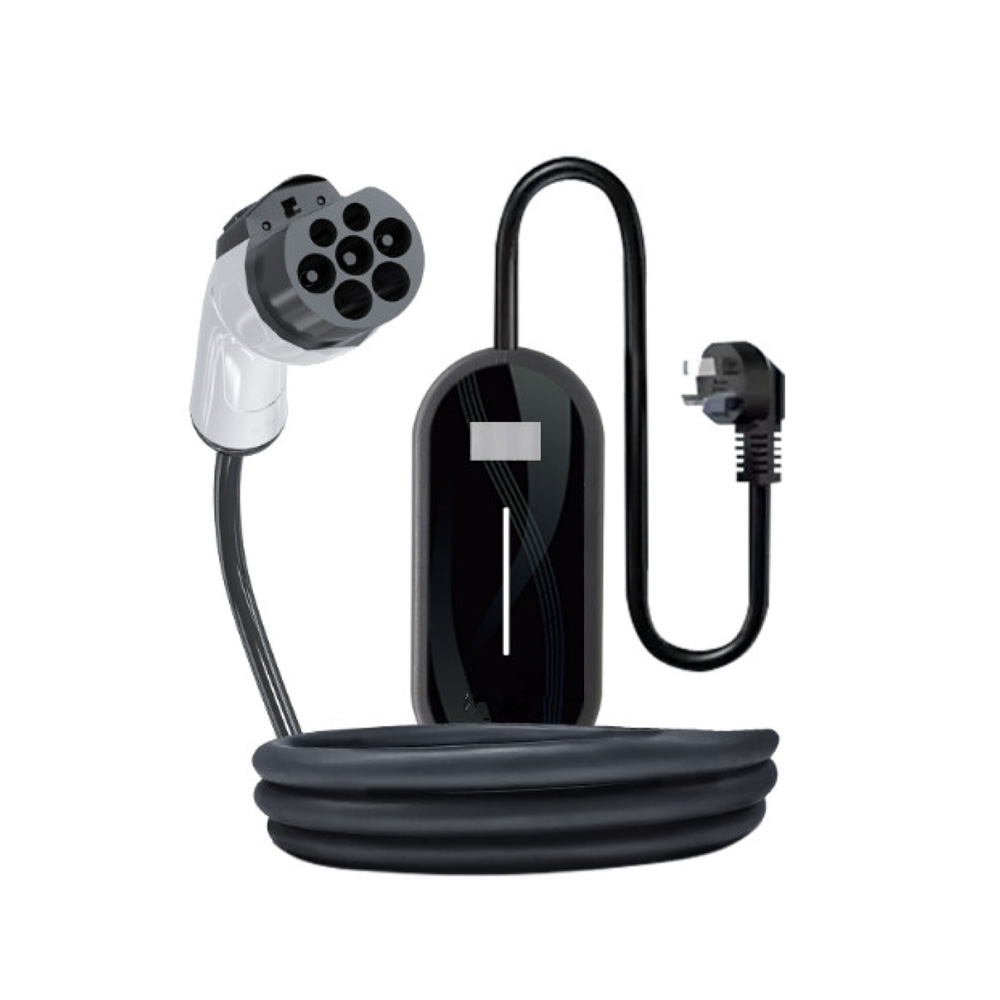

The BHPC-007 portable EV charger is not only highly functional but also aesthetically pleasing. Its sleek and compact design allows for easy storage and transportation, fitting snugly into the trunk of any vehicle. The 5m TPU cable provides sufficient length for convenient charging in various scenarios, whether it's at a campsite, a roadside rest area, or in a home garage.
The charger's compatibility with multiple international standards makes it a truly global product. It can be used with a wide range of electric vehicles, eliminating the need for users to worry about compatibility issues when traveling abroad. The LED charging status indicator and LCD display offer clear and intuitive information about the charging process, such as the current charging power, remaining time, and battery level.
Furthermore, the integrated leakage protection device is a crucial safety feature. It constantly monitors the electrical current and shuts off the power immediately in case of any abnormal leakage, safeguarding both the user and the vehicle from potential electrical hazards. The durable housing and high protection ratings ensure that the unit can withstand harsh outdoor conditions, from extreme temperatures to heavy rain and dust, providing reliable charging services wherever you go.
⚙ Product Parameters
| Model |
BHPC-007 |
| AC Power Output Rating |
Max 11KW |
| AC Power Input Rating |
AC 110V~240V |
| Current Output |
16A/32A (Single-Phase) |
| Power Wiring |
3 Wires-L1, PE, N |
| Connector Type |
SAE J1772 / IEC 62196-2 / GB/T |
| Charging Cable |
TPU 5m |
| EMC Compliance |
EN IEC 61851-21-2: 2021 |
| Ground Fault Detection |
20 mA CCID with auto retry |
| Ingress Protection |
IP67, IK10 |
| Electrical Protection |
Over current, Short circuit, Under voltage, Leakage, Over temperature, Lightning protection |
| RCD Type |
Type A AC 30mA + DC 6mA |
| Operating Temperature |
-25ºC ~ +55ºC |
| Operating Humidity |
0-95% non-condensing |
| Certifications |
CE / TUV / RoHS |
| LCD Display / LED Indicator |
Yes / Yes |
| Dimensions |
400*380*80mm |
| Gross Weight |
5KG |
? Frequently Asked Questions
What are your terms of payment?
We accept L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
Do you test all your chargers before shipping?
Yes, all major components are tested before assembly and each charger undergoes full functional testing before being shipped.
Can I order samples and how long does it take?
Yes, samples are available. It usually takes 7-10 days for production and an additional 7-10 days for express delivery.
How long does it take to fully charge a car?
The charging time depends on the car's battery capacity and the OBC (on-board charger) power. Formula: Hours = Battery (kWh) / Power (lowest of OBC or Charger). For example, a 40kWh battery with a 7kW OBC and 22kW charger takes approximately 5.7 hours (40/7).
Is this charger suitable for outdoor use in rain?
Yes, the charger features an IP67 ingress protection rating and IK10 impact resistance, meaning it is highly durable and can withstand heavy rain, dust, and harsh outdoor conditions.
What safety protections are integrated into the device?
The charger includes comprehensive protection: over-current, short circuit, under-voltage, leakage (Type A + DC 6mA), over-temperature, and lightning protection.
