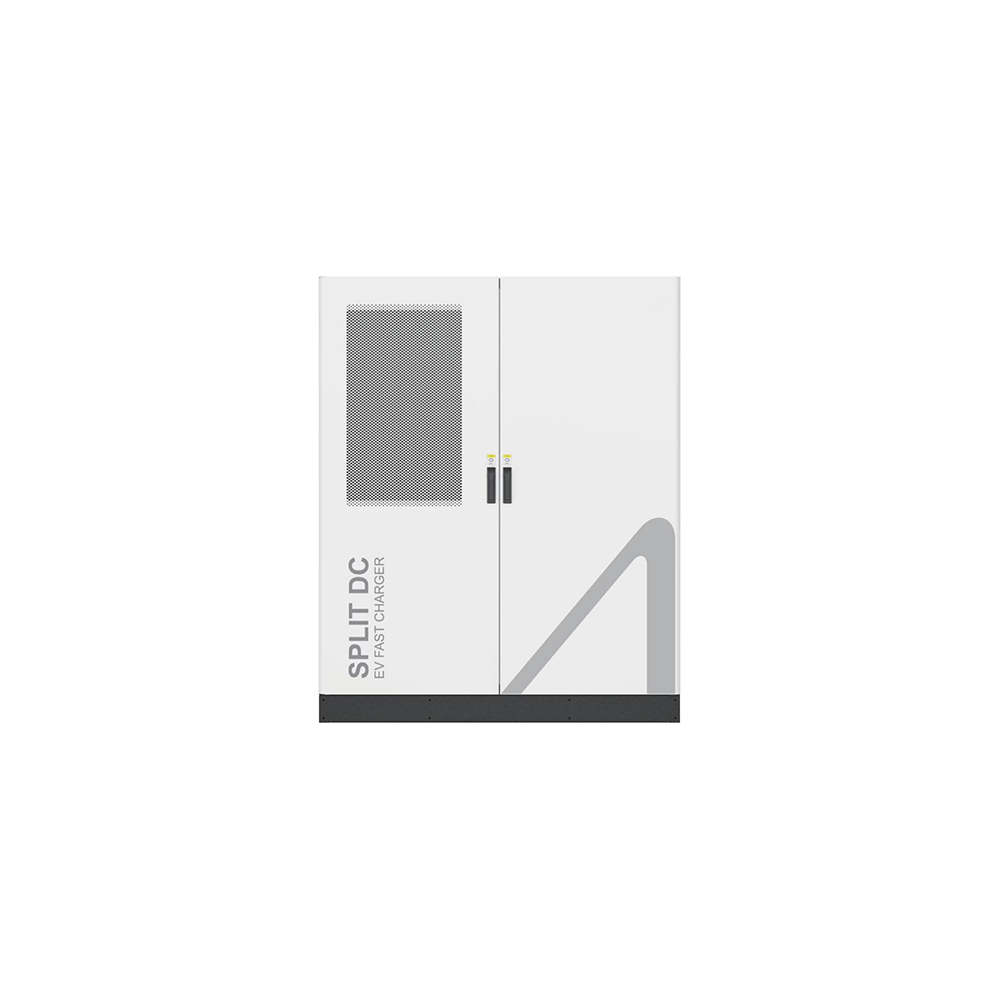

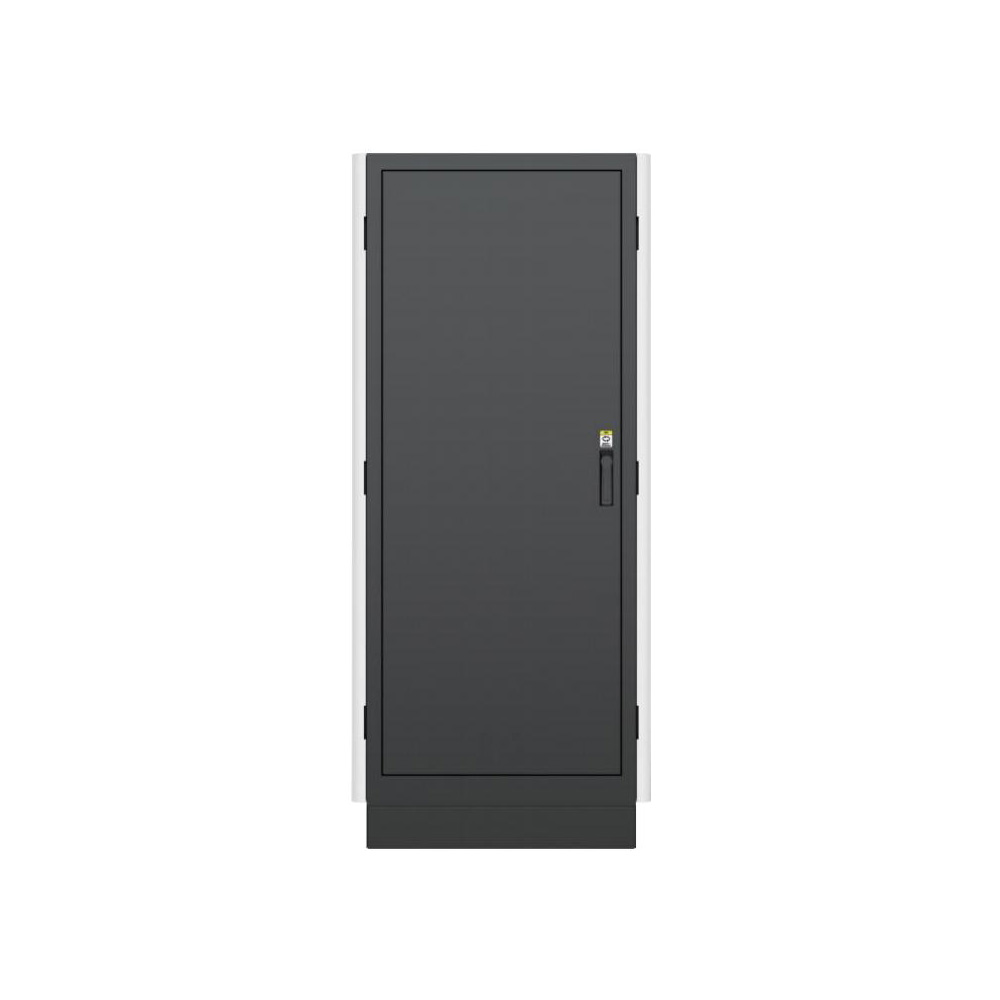

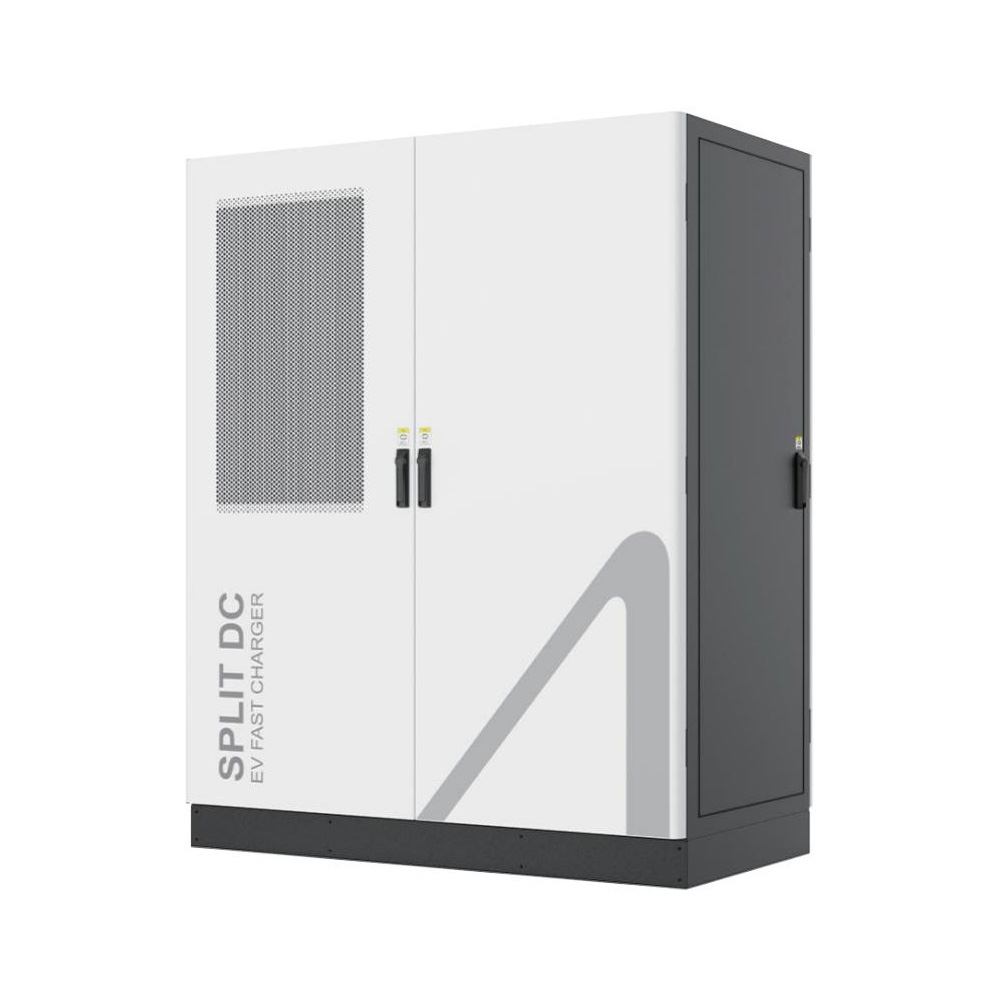

Wholesale 480kw Main Cabinet Split Type Fast DC Electric Car Charger New Energy Electric Vehicle Charging Pile EV Car Charging Station with Multi-Guns Manufacturers, Factory

1 / 5

Wholesale 480kw Main Cabinet Split Type Fast DC Electric Car Charger New Energy Electric Vehicle Charging Pile EV Car Charging Station with Multi-Guns Manufacturers, Factory

• Conﬁgurable output power settings • It can be equipped with 12 single-gun charging piles or 6 dual-gun charging piles • Parallel charging • Easy to maintain

Send Inquiry

Product Description

⚡ The rectifier cabinet can be configured with 12 single-gun charging terminals or 6 double-gun charging terminals, which can meet the charging needs of 12 vehicles at the same time. The charging terminal configuration is flexible and can be applied to various scenarios. It is suitable for supporting automobile enterprises, commercial real estate, government enterprises, gas stations, public fast charging stations, etc. It can charge electric vehicles of various types and capacities, including passenger cars, buses, sanitation vehicles, heavy trucks, etc.

📊 480kW MAIN CABINET SPECIFICATIONS

Category	Specifications	Data Parameters
Appearance structure	Dimensions (L x D x H)	1500mm x 800mm x 1850mm
	Weight	550kg
	Maximum carrying capacity	6 dual gun charging stations or 12 single gun charging stations
Electrical indicators	Parallel Charge Mode (Optional)	40 kW per Port
	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Input frequency	50/60Hz
	Output Voltage	200 - 1000VDC
	Output current	0 to 1200A
	Rated power	480kW
	Efficiency	≥94% at nominal output power
	Power factor	>0.98
	Communication protocol	OCPP 1.6J
Functional design	Display	Customize according to requirements
	Communication	Ethernet – Standard \|\| 3G/4G Modem (Optional)
	Power Electronics Cooling	Air Cooled
Work environment	Operating temperature	-30℃ to 55℃
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Ingress Protection	IP54 \|\| IK10
	Altitude	<2000m
Safety design	Safety standard	GB/T, CCS2, CCS1, CHAdeMO, NACS
Safety design	Safety protection	Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc.

❓ Frequently Asked Questions

1. How many vehicles can the 480kW main cabinet charge simultaneously?

The system can be configured to charge up to 12 vehicles at once using 12 single-gun terminals, or 6 vehicles using 6 double-gun terminals.

2. What types of electric vehicles are compatible with this charging station?

It is designed to support a wide range of electric vehicles, including passenger cars, buses, sanitation vehicles, and heavy-duty trucks.

3. What are the key safety protection features?

The unit includes comprehensive safety mechanisms such as overvoltage protection, lightning protection, overcurrent protection, leakage protection, and waterproof protection.

4. What communication protocols does the charger support for management?

The equipment supports the standard OCPP 1.6J protocol, ensuring compatibility with most charging station management systems.

5. Can this charging station operate in extreme weather conditions?

Yes, it is designed for durability with an IP54 protection rating and can operate in temperatures ranging from -30℃ to 55℃.

6. What charging standards is the system compatible with?

The system supports multiple global standards including GB/T, CCS1, CCS2, CHAdeMO, and NACS.
