Product Description

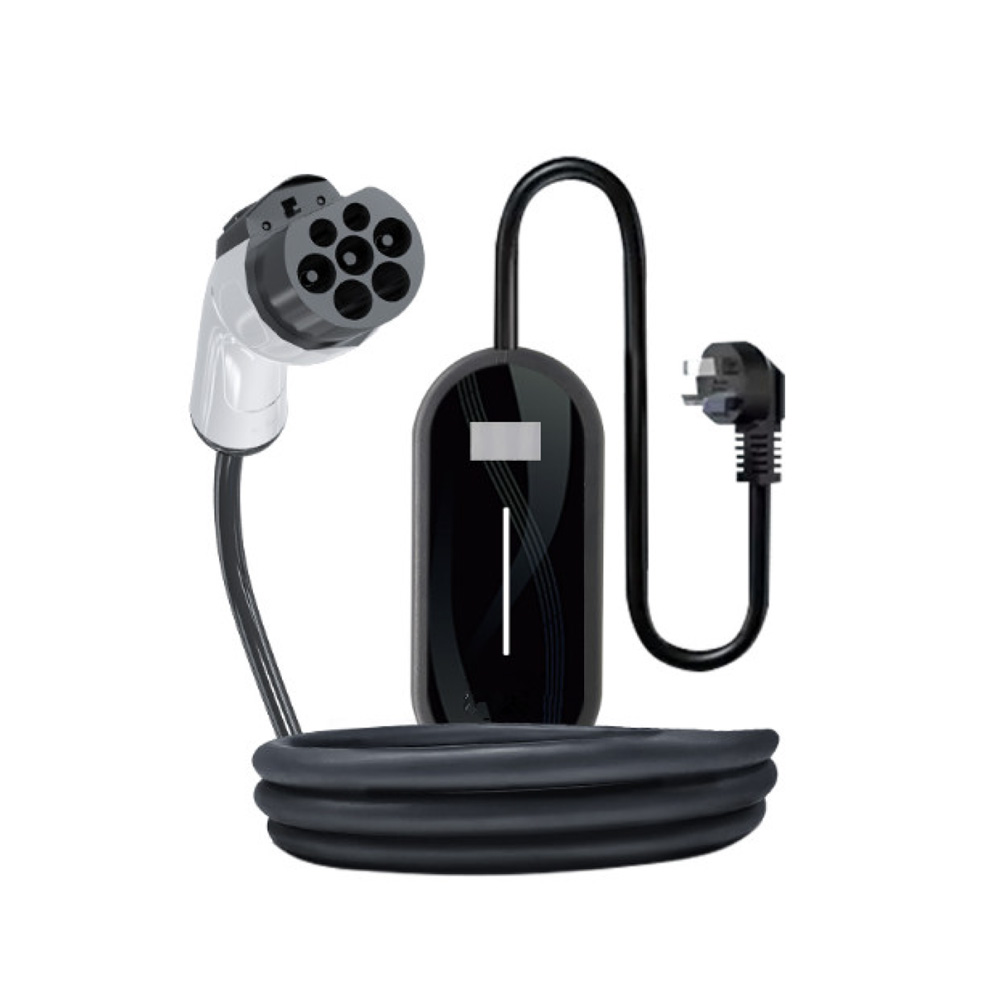

The BHPC-022 portable EV charger is not only highly functional but also aesthetically pleasing. Its sleek and compact design allows for easy storage and transportation, fitting snugly into the trunk of any vehicle. The 5m TPU cable provides sufficient length for convenient charging in various scenarios, whether it's at a campsite, a roadside rest area, or in a home garage.
◈ The charger's compatibility with multiple international standards makes it a truly global product. It can be used with a wide range of electric vehicles, eliminating the need for users to worry about compatibility issues when traveling abroad. The LED charging status indicator and LCD display offer clear and intuitive information about the charging process, such as the current charging power, remaining time, and battery level.
◈ Furthermore, the integrated leakage protection device is a crucial safety feature. It constantly monitors the electrical current and shuts off the power immediately in case of any abnormal leakage, safeguarding both the user and the vehicle from potential electrical hazards. The durable housing and high protection ratings ensure that the BHPC-022 can withstand harsh outdoor conditions, from extreme temperatures to heavy rain and dust, providing reliable charging services wherever you go.
Product Parameters
| Model | BHPC-022 |
| AC Power Output Rating | Max 22.5KW |
| AC Power Input Rating | AC 110V~240V |
| Current Output | 16A/32A (Single-Phase) |
| Power Wiring | 3 Wires-L1, PE, N |
| Connector Type | SAE J1772 / IEC 62196-2 / GB/T |
| Charging Cable | TPU 5m |
| EMC Compliance | EN IEC 61851-21-2: 2021 |
| Ground Fault Detection | 20 mA CCID with auto retry |
| Ingress Protection | IP67, IK10 |
| Electrical Protection |
• Over current protection
• Short circuit protection
• Under voltage protection
• Leakage protection
• Over temperature protection
• Lightning protection
|
| RCD Type | Type A AC 30mA + DC 6mA |
| Operating Temperature | -25ºC ~ +55ºC |
| Operating Humidity | 0-95% non-condensing |
| Certifications | CE / TUV / RoHS |
| LCD Display | Yes |
| LED Indicator Light | Yes |
| Button On/OFF | Yes |
| External Package | Customizable / Eco-Friendly Cartons |
| Package Dimension | 400*380*80mm |
| Gross Weight | 3KG |
Frequently Asked Questions
What types of electric vehicles is the BHPC-022 compatible with?
The BHPC-022 is compatible with a wide range of international standards, including SAE J1772, IEC 62196-2, and GB/T, making it suitable for almost all modern electric vehicles globally.
Can I use this portable charger in rainy weather?
Yes, the charger features an IP67 ingress protection rating, which means it is highly resistant to heavy rain, dust, and harsh outdoor conditions.
What safety protections are integrated into the device?
The device includes a comprehensive safety suite: leakage protection (RCD Type A + DC 6mA), over-current, short circuit, under-voltage, over-temperature, and lightning protection.
How long is the included charging cable?
The charger comes with a high-quality 5-meter TPU cable, providing sufficient length for flexible charging at home, campsites, or roadside areas.
Does the charger show real-time charging data?
Yes, it is equipped with both an LCD display and LED indicators that provide real-time information on charging power, battery level, remaining time, and system status.
What is the maximum charging output of this unit?
The BHPC-022 offers a maximum AC power output rating of 22.5KW, supporting both 16A and 32A current outputs.
