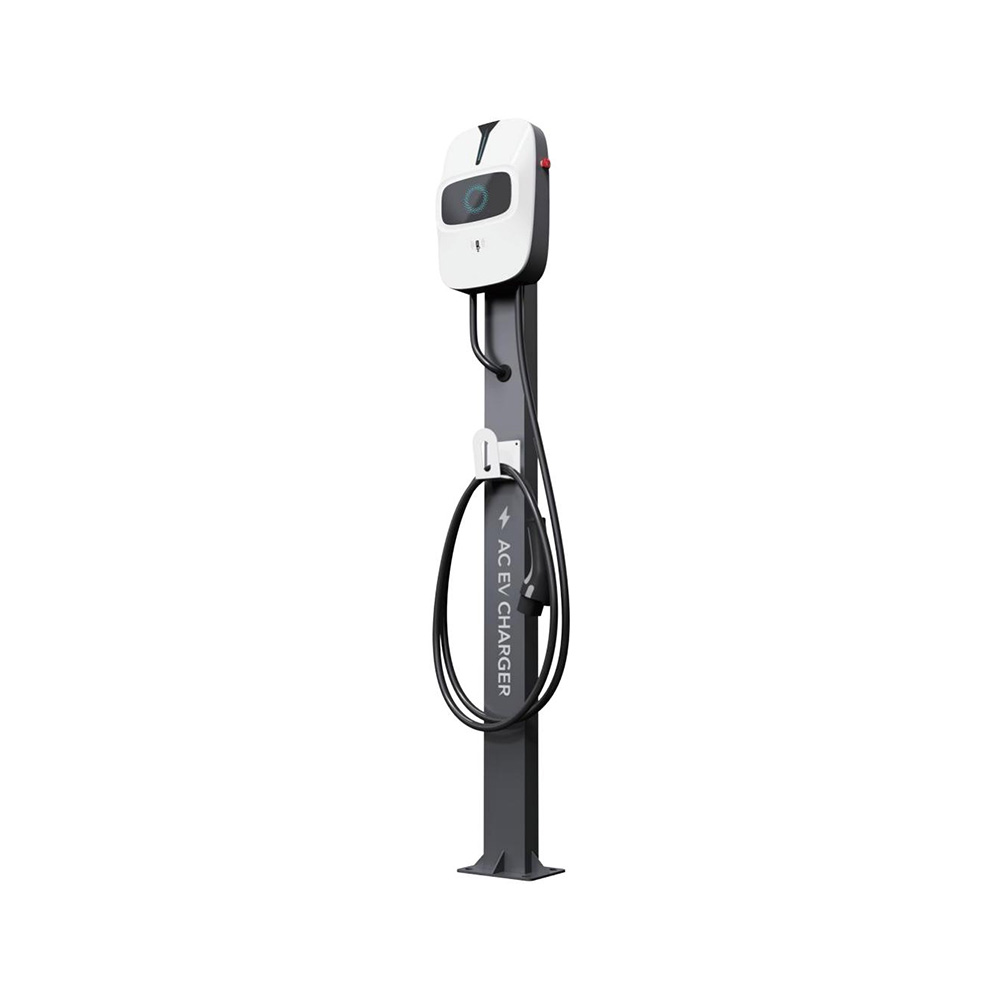

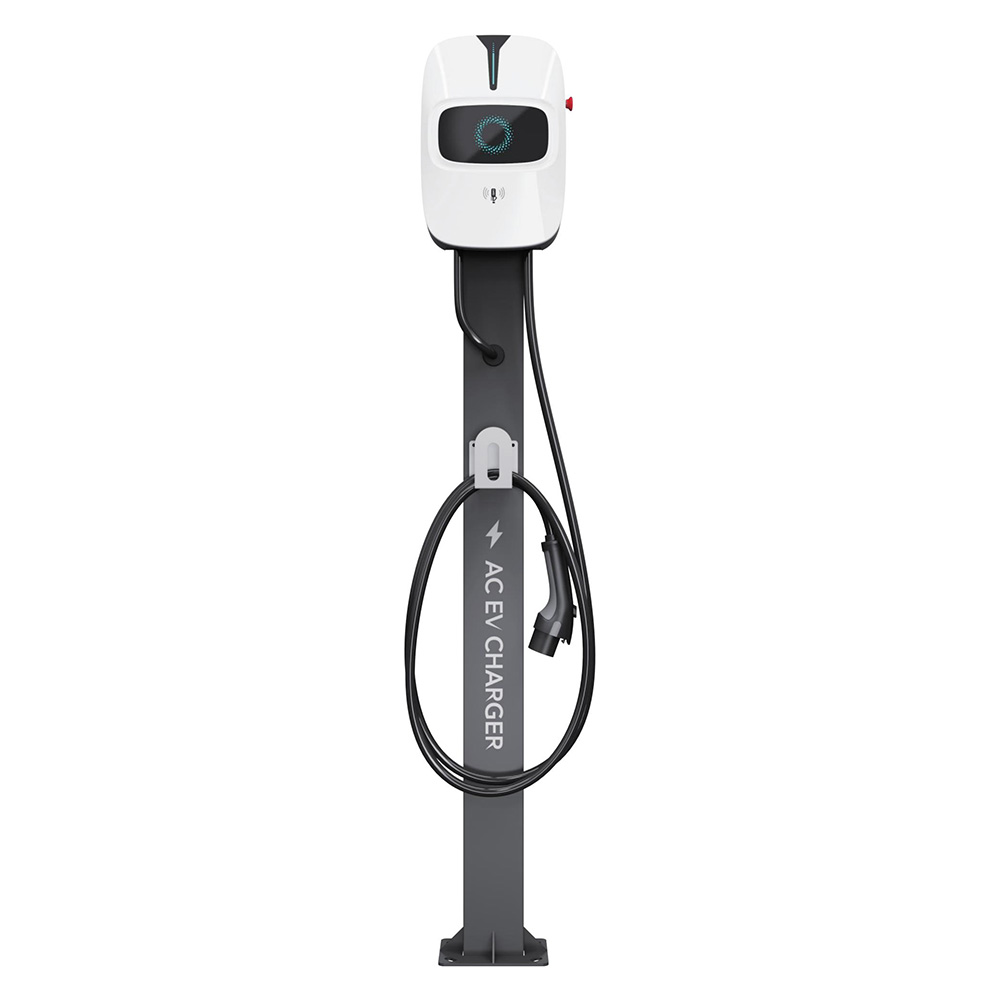

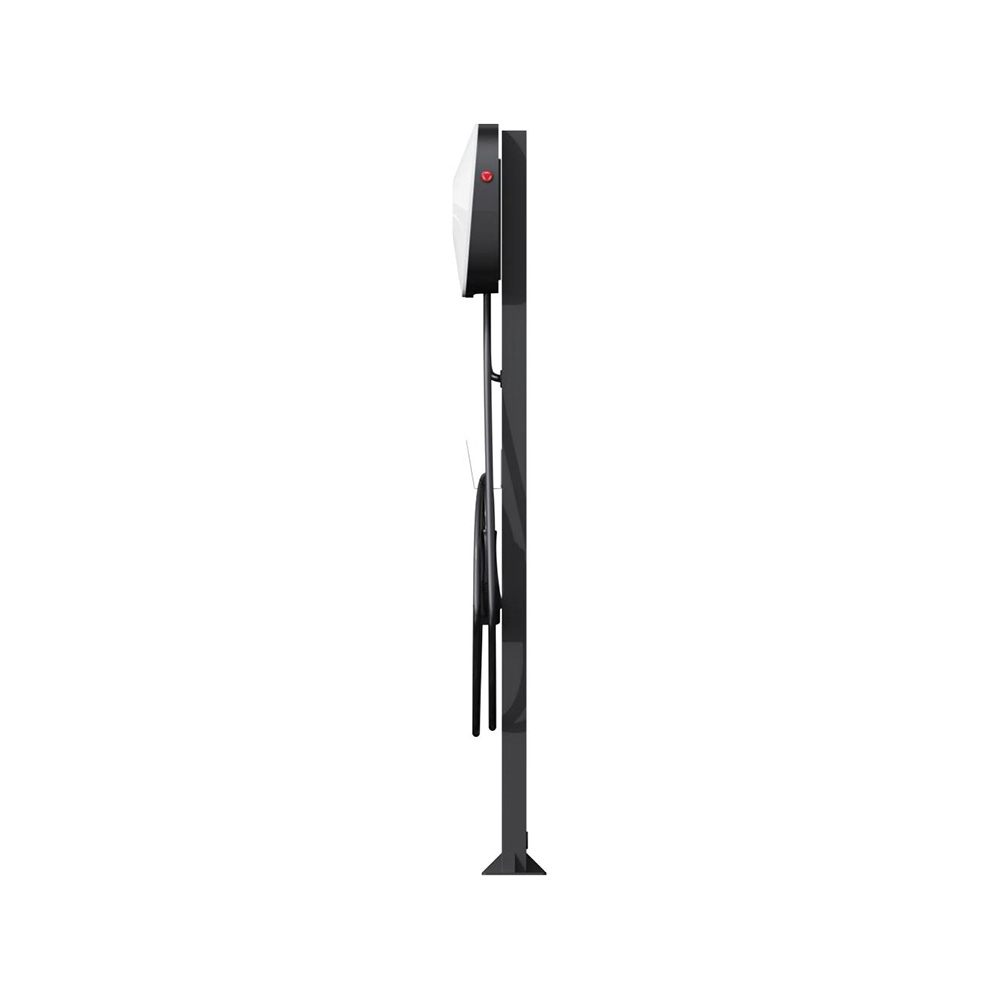

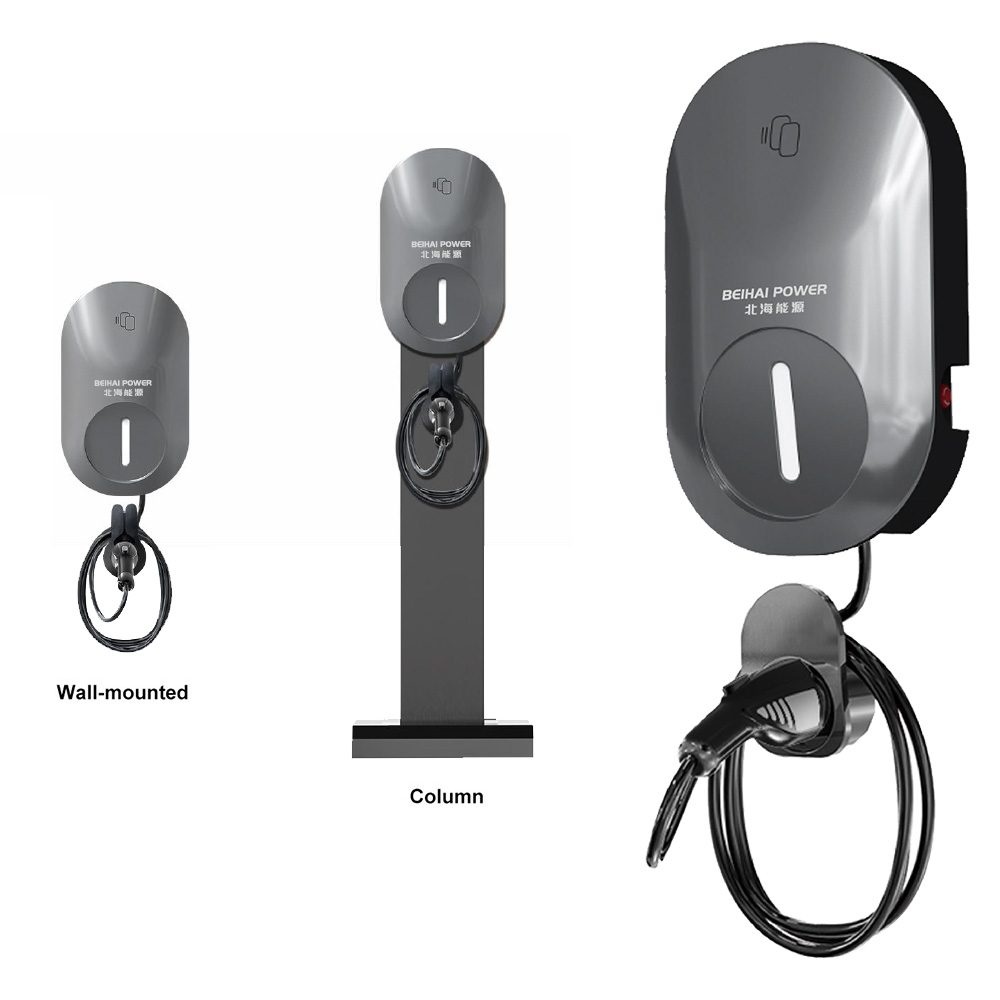

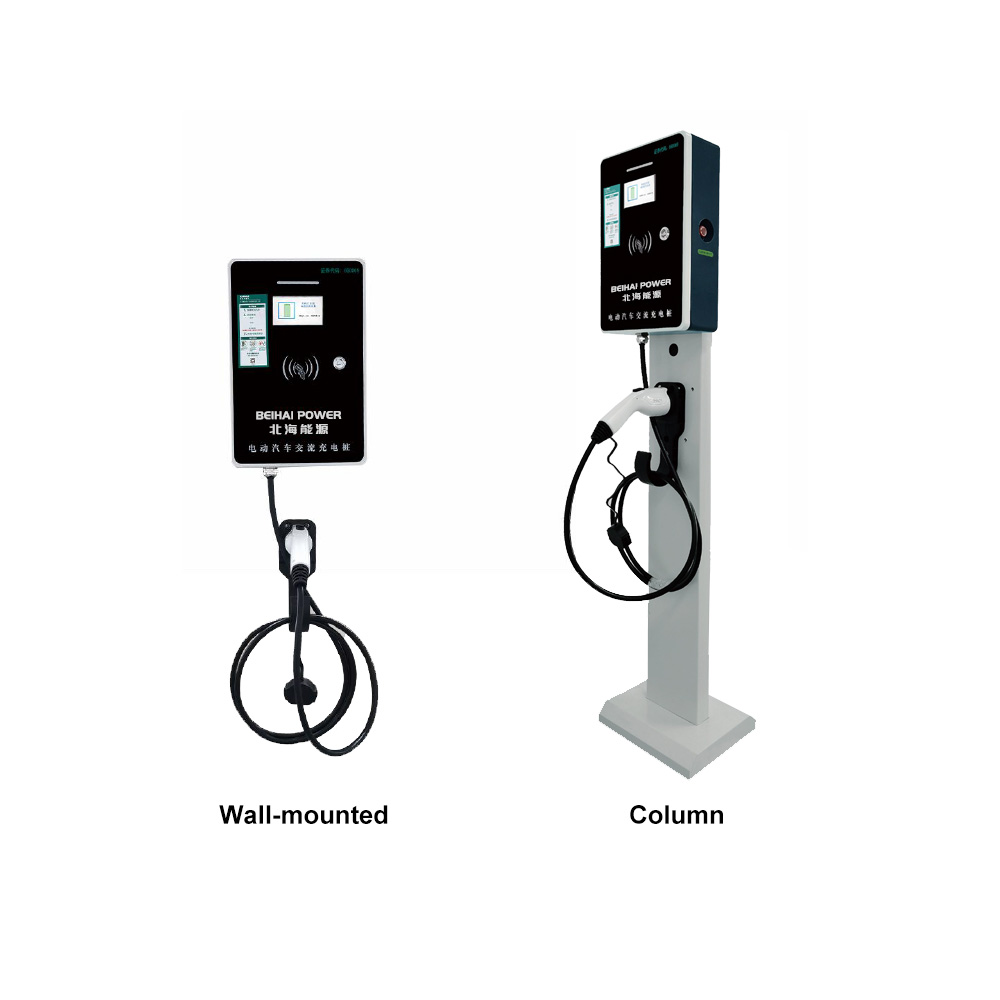

The 7kW AC charging pile is a low-power electric vehicle charging device, primarily suitable for large, medium, and small electric vehicle charging stations in various public places with electric parking lots. It offers two versatile installation methods: wall-mounted and column-mounted, providing flexible deployment for different architectural requirements.
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance Structure | Dimensions (L x D x H) | Pillar: 235mm x 93mm x 350mm | Wall: 235mm x 93mm x 1510mm |
| Weight | 5.4kg | |
| Length of charging cable | 3.5m | |
| Electrical Indicators | Connectors | Type1 || Type2 || GBT |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) | |
| Input frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC | |
| Output current | 0 to 400A | |
| Rated power | 7KW, 14KW, 11KW, 22KW | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | 0.98 | |
| Communication protocol | OCPP 1.6J | |
| Functional Design | Display | 7’’ LCD with touch screen |
| RFID system | ISO/IEC 14443A/B | |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet (Standard) || 3G/4G || Wifi | |
| Work Environment | Cooling | Air Cooled |
| Operating temperature | -30°C to 55°C | |
| Humidity | ≤ 95% RH (Working) || ≤ 99% RH (Storage, Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 | |
| Safety Design | Safety standard | GB/T, Type2, Type1, CHAdeMo, NACS |
| Safety protection | Overvoltage, lightning, overcurrent, leakage, and waterproof protection | |
| Emergency Stop | Emergency Stop Button Disables Output Power |
