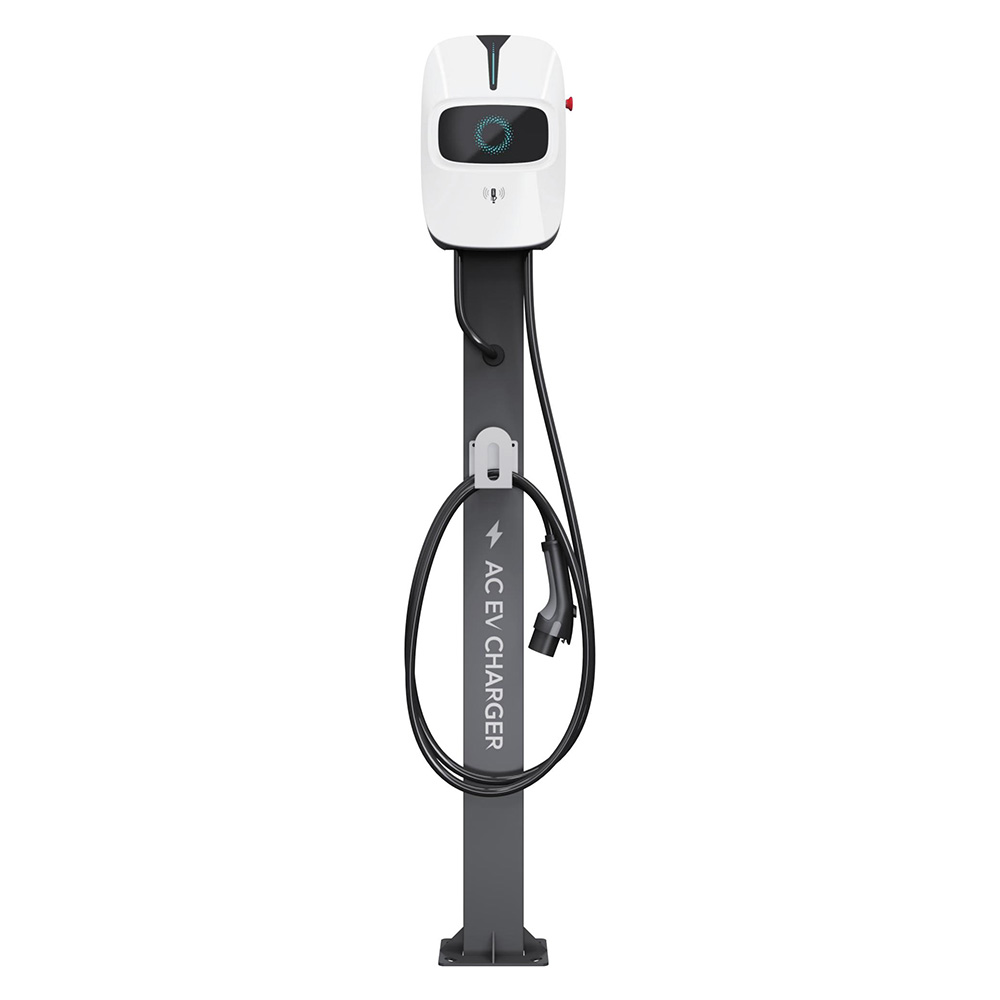

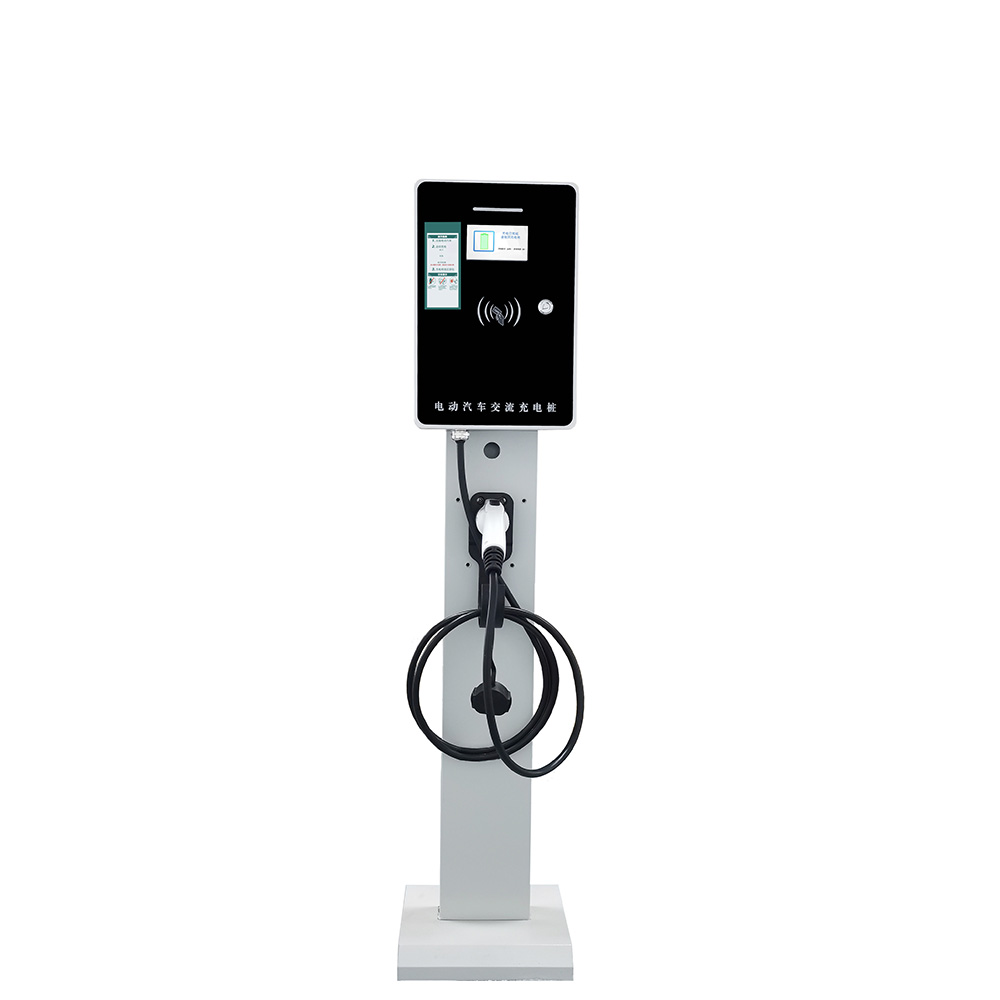

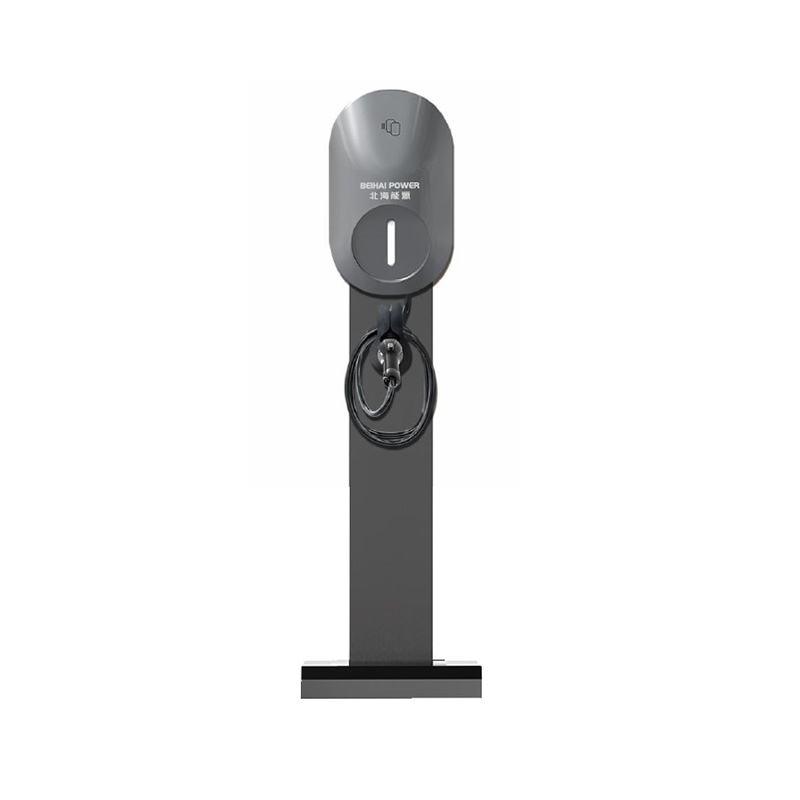

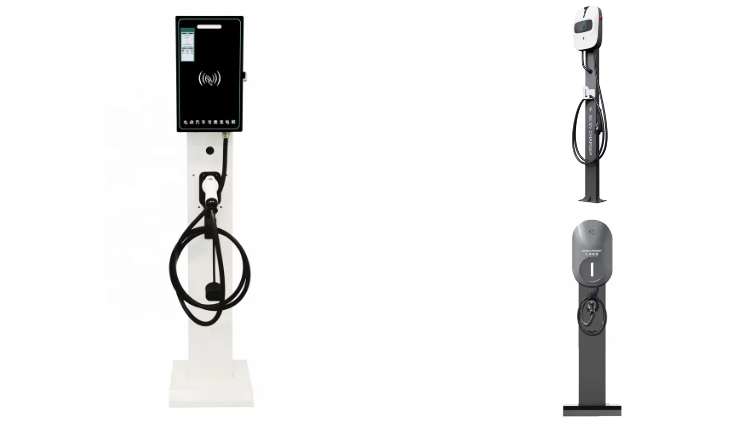

The high-performance Level 2 AC EV Charger, a robust floor-mounted charging station designed for New Energy Electric Vehicles. Operating at 380V and 32A, this powerful unit delivers a substantial 22kW of AC charging capability, significantly reducing charging times. Equipped with the widely adopted Type 2 connector, this AC EV Charging Pile offers reliable, efficient, and fast AC power replenishment. Crucially, the Type 2 standard (CCS2) makes it perfectly suited for both the European Union and the rapidly expanding EV markets across Southeast Asian countries, where this connector is increasingly becoming the regional norm. This makes it an ideal permanent charging solution for commercial, fleet, or residential applications requiring rapid electric vehicle charging in these key global regions.
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance Structure | Dimensions (L x D x H) | 270*110*1365 (Column) |
| Weight | 5.4kg | |
| Length of charging cable | 3.5m | |
| Electrical Indicators | Connectors | Type 1 || Type 2 || GBT |
| Input Voltage | 380 VAC | |
| Input frequency | 50/60Hz | |
| Output Voltage | 380 VDC | |
| Output current | 32A | |
| Rated power | 22KW | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | 0.98 | |
| Communication protocol | OCPP 1.6J | |
| Functional Design | Display | 7’’ LCD with touch screen |
| RFID system | ISO/IEC 14443A/B | |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet – Standard || 3G/4G || Wifi | |
| Work Environment | Cooling | Natural Cooled |
| Operating temperature | -30°C to 55°C | |
| Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP65 | |
| Safety Design | Safety standard | GB/T, Type 2, Type 1, CHAdeMo, NACS |
| Safety protection | Overvoltage, lightning, overcurrent, leakage, waterproof protection, etc. | |
| Emergency Stop | Emergency Stop Button Disables Output Power |
