📘Product Description
AC charging post, also known as a slow charger, is a device designed to provide charging services for electric vehicles. The AC charging post itself does not have a direct charging function; instead, it needs to be connected to an on-board charging machine (OBC) on the electric vehicle, which converts the AC power into DC power, and then charges the battery of the electric vehicle.
Due to the low power of OBCs, the charging speed of AC chargers is relatively slow. Generally speaking, it takes 6 to 9 hours or even longer to charge an electric vehicle (with a normal battery capacity). AC charging piles are simple in technology and structure, with relatively low installation costs and a variety of types to choose from, such as portable, wall-mounted and floor-mounted, etc., which are suitable for different scenarios and the price of AC charging piles is relatively more affordable.
⚙️Product Parameters
| Unit Type |
BHAC-22KW-2 |
| Technical Parameters |
| AC Input |
Voltage range (V) |
220±15% |
| Frequency range (Hz) |
45~66 |
| AC Output |
Voltage range (V) |
380 |
| Output Power (KW) |
22KW*2 |
| Maximum current (A) |
63 |
| Charging interface |
2 |
| Configuration & Protection |
| Operation |
Display |
Power, Charge, Fault / 4.3-inch display |
| Control |
Charging Operation |
Swipe card or scan code |
| Safety |
Protection Level |
IP65 / Leakage Protection 30mA |
| Installation |
Mode |

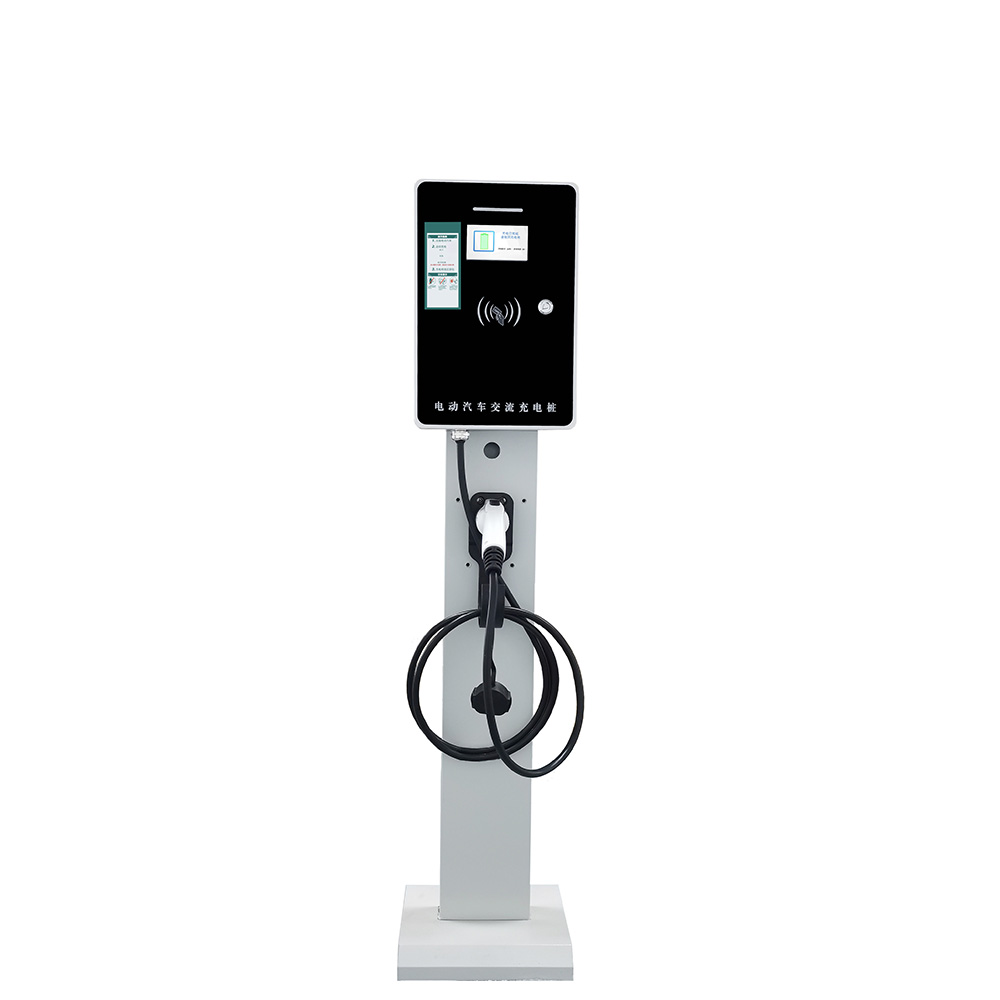

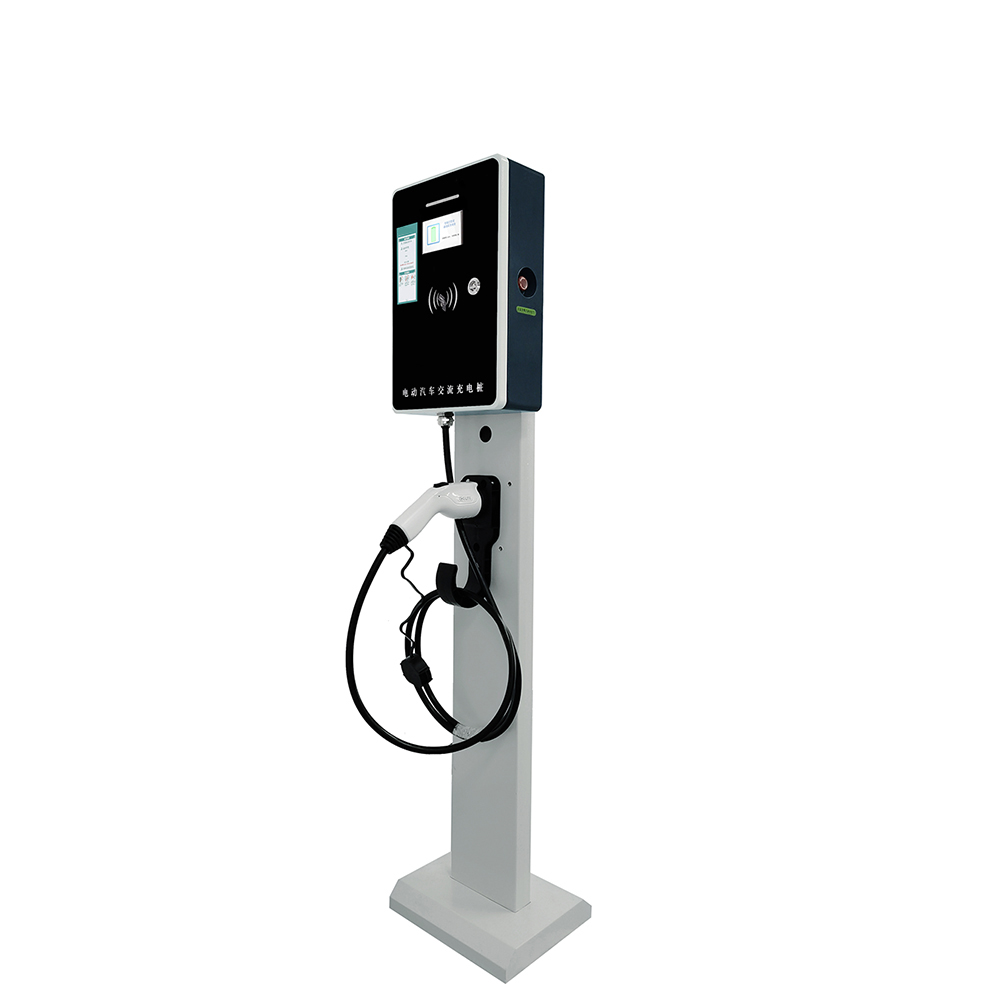

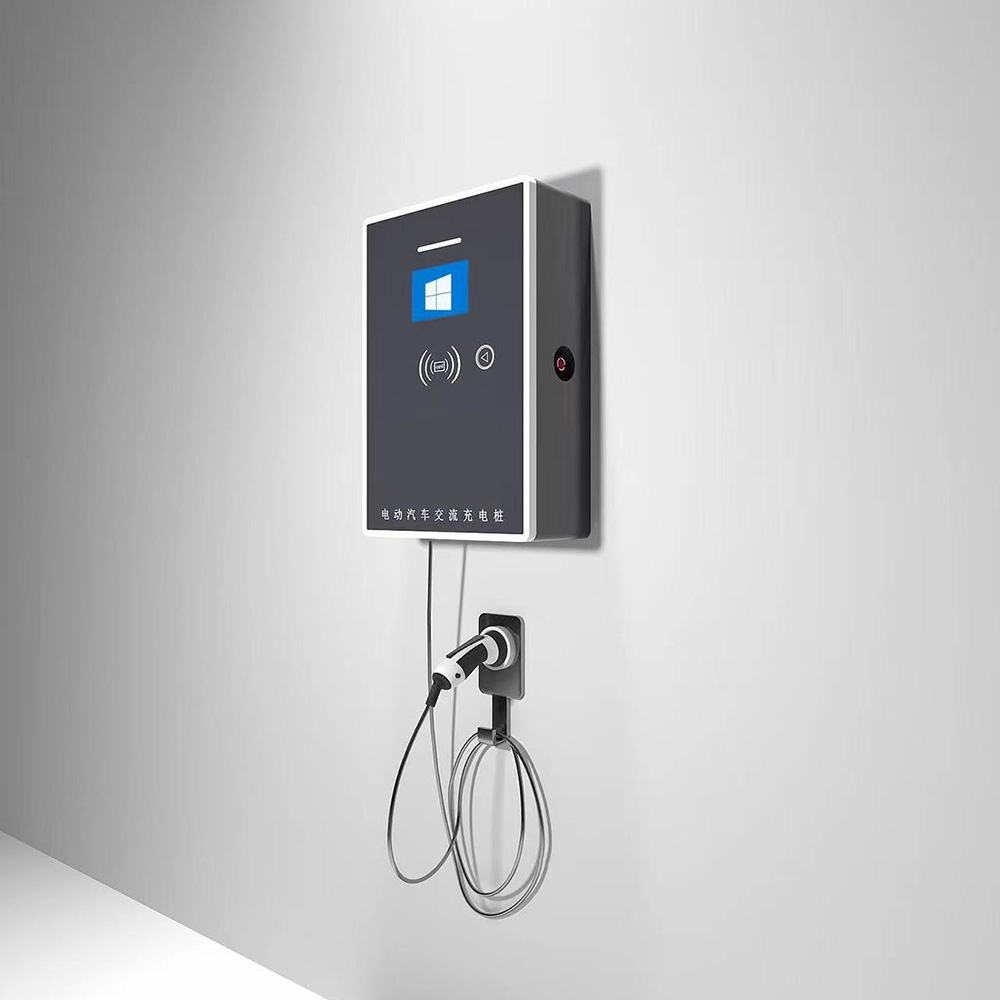

Landing type / Wall mounted type |
| Environment |
Operating Temp |
-20℃ ~ 50℃ |
⭐Product Features
1. Smaller power, flexible installation
Power ranges of 7kw, 11kw, and 22kw allow for flexible adaptation to various installation environments.
2. Safe and reliable
Equipped with multiple protections: over-voltage, under-voltage, overload, short-circuit, and leakage protection.
3. Human-computer interaction
Features a large LCD color touch screen with multiple modes: quantitative, timed, fixed amount, and intelligent charging.
4. Lower cost
Reduced manufacturing and installation costs make it ideal for family and small-scale commercial applications.
🚀Application Scenarios
AC charging piles are widely used in homes, offices, public parking lots, and urban roads. They provide convenient night-time and long-term parking charging services.
- Home Charging: Perfect for residential use with on-board chargers.
- Commercial Car Parks: Providing services for shopping malls, hotels, and office buildings.
- Public Charging Stations: Installation in bus stops and motorway service areas.
- Scenic Spots: Enhancing tourist experiences by providing EV charging support.
❓Frequently Asked Questions
How long does it take to fully charge using an AC pile?
Generally, it takes between 6 to 9 hours depending on the vehicle's battery capacity and the power of the on-board charger.
What is the difference between AC and DC charging?
AC charging is "slow charging" that relies on the car's internal converter, while DC charging is "fast charging" that delivers power directly to the battery.
Can these chargers be installed outdoors?
Yes, our AC charging stations feature an IP65 protection rating, making them highly resistant to dust and water for outdoor use.
What charging modes are available?
Users can choose from quantitative charging, timed charging, fixed amount charging, or intelligent full-power mode via the touch screen.
Is it safe to charge overnight?
Absolutely. The system monitors current in real-time and includes automatic protection against surges, leaks, and short circuits.
How do I start the charging process?
The charging process can be easily initiated by swiping a card or scanning a QR code on the machine's display.
