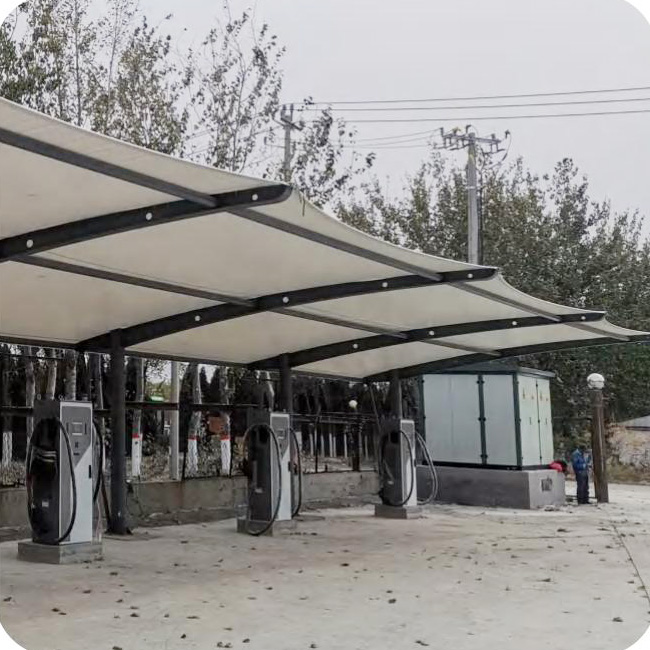

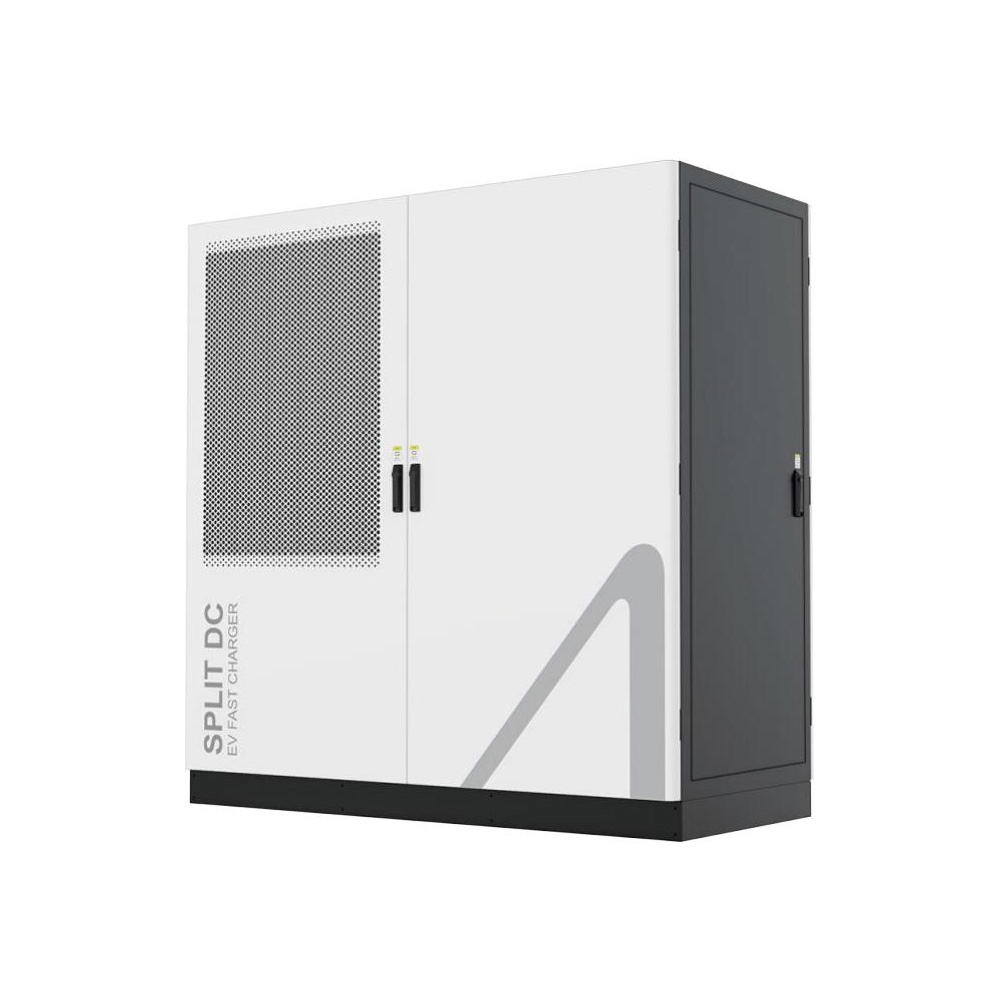

The rectifier cabinet can be configured with 12 single-gun charging stations or 6 double-gun charging piles, which can meet the charging needs of 12 vehicles at the same time. The charging terminal configuration is flexible and can be applied to various scenarios. It is suitable for supporting automobile enterprises, commercial real estate, government enterprises, gas stations, public fast charging stations, etc. It can charge electric vehicles of various types and capacities, including passenger cars, buses, sanitation vehicles, heavy trucks, etc.
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance Structure | Dimensions (L x D x H) | 1900mm x 900mm x 1950mm |
| Weight | 750kg | |
| Maximum Carrying Capacity | 6 dual gun charging stations or 12 single gun charging stations | |
| Electrical Indicators | Parallel Charge Mode (Optional) | 40 kW per Port |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) | |
| Input Frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC | |
| Output Current | 0 to 1200A | |
| Rated Power | 960kW | |
| Efficiency | ≥94% at nominal output power | |
| Power Factor | >0.98 | |
| Communication Protocol | OCPP 1.6J | |
| Functional Design | Display | Customize according to requirements |
| Communication | Ethernet Standard || 3G/4G Modem (Optional) | |
| Power Electronics Cooling | Air Cooled | |
| Work Environment | Operating Temperature | -30℃ to 55℃ |
| Working & Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Ingress Protection | IP54 || IK10 | |
| Altitude | <2000m | |
| Safety Design | Safety Standard | GB/T, CCS2, CCS1, CHAdeMo, NACS |
| Safety Protection | Overvoltage, lightning, overcurrent, leakage, waterproof protection, etc. |
