Product Description
An AC charging post, also known as a slow charger, is a device designed to provide charging services for electric vehicles. The AC charging post itself does not have a direct charging function; instead, it needs to be connected to an on-board charging machine (OBC) on the electric vehicle, which converts the AC power into DC power, and then charges the battery of the electric vehicle.
Due to the low power of OBCs, the charging speed of AC chargers is relatively slow. Generally speaking, it takes 6 to 9 hours or even longer to charge an electric vehicle (with a normal battery capacity). AC charging piles are simple in technology and structure, with relatively low installation costs and a variety of types to choose from, such as portable, wall-mounted and floor-mounted, etc., which are suitable for different scenarios and the price of AC charging piles is relatively more affordable.
AC charging posts are more suitable for installation in car parks in residential areas, as the charging time is longer and suitable for night-time charging. Owners can park their EVs near the charging post at night or during their free time to charge, which does not affect daily use and can make full use of the grid’s low hours for charging, reducing charging costs.
Product Parameters
| Unit Type |
BHAC-7KW/24KW |
| Technical Parameters |
| AC Input |
Voltage range (V) |
220±15% |
| Frequency range (Hz) |
45~66 |
| AC Output |
Voltage range (V) |
220 |
| Output Power (KW) |
7/24KW |
| Maximum current (A) |
32/63A |
| Charging interface |
1/2 |
| Protection Info |
Operation Instruction |
Power, Charge, Fault |
| Machine display |
No / 4.3-inch display |
| Charging operation |
Swipe the card or scan the code |
| Metering mode |
Hourly rate |
| Communication |
Ethernet (Standard Protocol) |
| Heat dissipation |
Natural Cooling |
| Protection level |
IP65 |
| Leakage protection |
30mA |
| Equipment Info |
Reliability (MTBF) |
50,000 hours |
| Size (W*D*H) mm |
270*110*1365 (Floor) / 270*110*400 (Wall) |
| Installation mode |
Floor-mounted / Wall-mounted |
| Routing mode |
Up / Down into line |
Product Feature
Application Scenarios
AC charging piles are widely used in homes, offices, public parking lots, urban roads and other places. They provide convenient and fast charging services suitable for long-term parking.
Home charging
Providing AC power to electric vehicles in residential homes via on-board chargers.
Commercial car parks
Installed in shopping malls and office buildings for visiting EV users.
Public Charging Stations
Located at bus stops and motorway service areas for public charging needs.
Scenic spots
Improving tourist experience by facilitating EV charging in leisure areas.

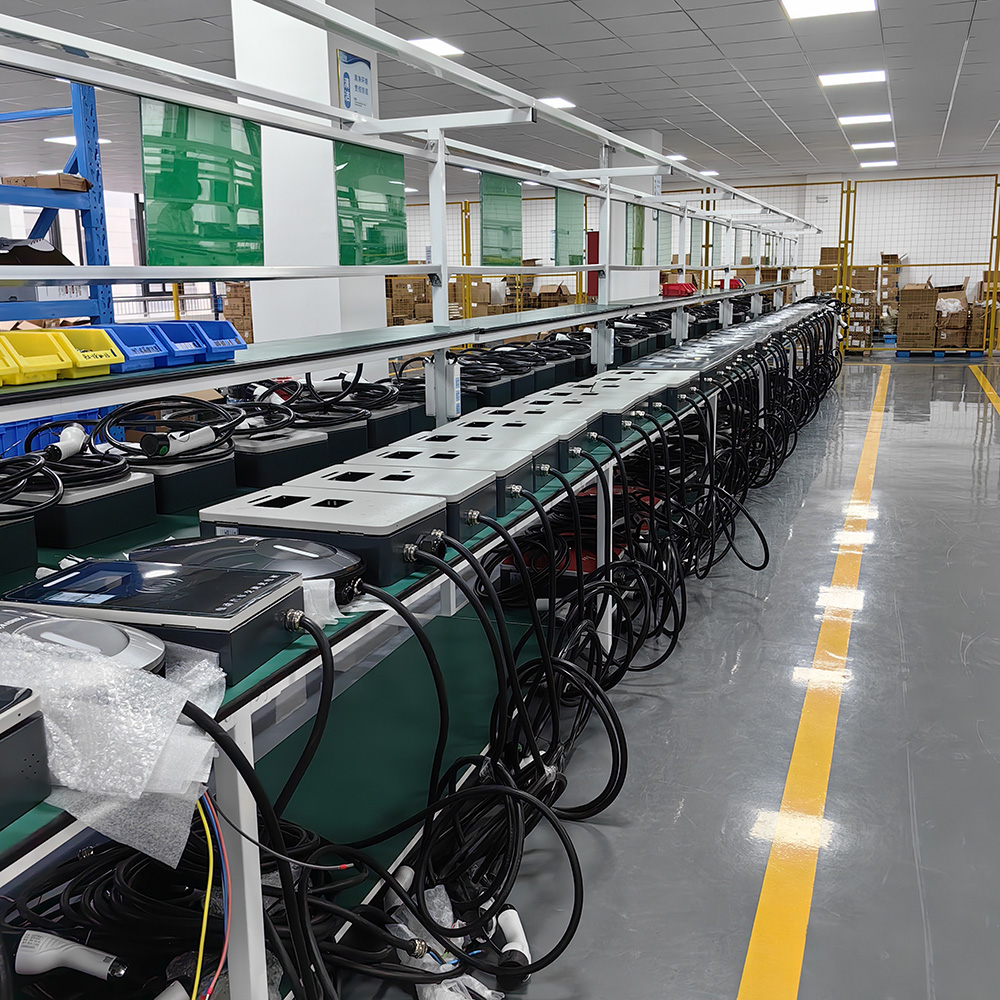

Production & Quality Control
Frequently Asked Questions
What is the difference between AC and DC charging?
AC charging provides alternating current to the vehicle's on-board charger, which converts it to DC. It is typically slower and better for overnight or long-term parking. DC charging provides power directly to the battery, allowing for much faster charging speeds.
How long does it take to fully charge my car?
For a standard 7KW AC charger, it generally takes between 6 to 9 hours to fully charge a typical electric vehicle battery, depending on the battery capacity and state of charge.
Can this charging pile be installed outdoors?
Yes, this charging pile has an IP65 protection rating, which means it is dust-tight and protected against water jets, making it suitable for both indoor and outdoor installations.
Is the 7KW charger compatible with all electric vehicles?
Most modern electric vehicles are compatible with standard AC charging interfaces. Our piles support standard communication protocols to ensure wide compatibility.
What installation options are available?
We offer flexible installation modes including wall-mounted (ideal for garages) and floor-mounted/landing type (ideal for open parking spaces).
Does the device include safety protections?
Absolutely. The device includes 30mA leakage protection, fault indicators, and natural cooling to ensure high reliability (MTBF of 50,000 hours).
