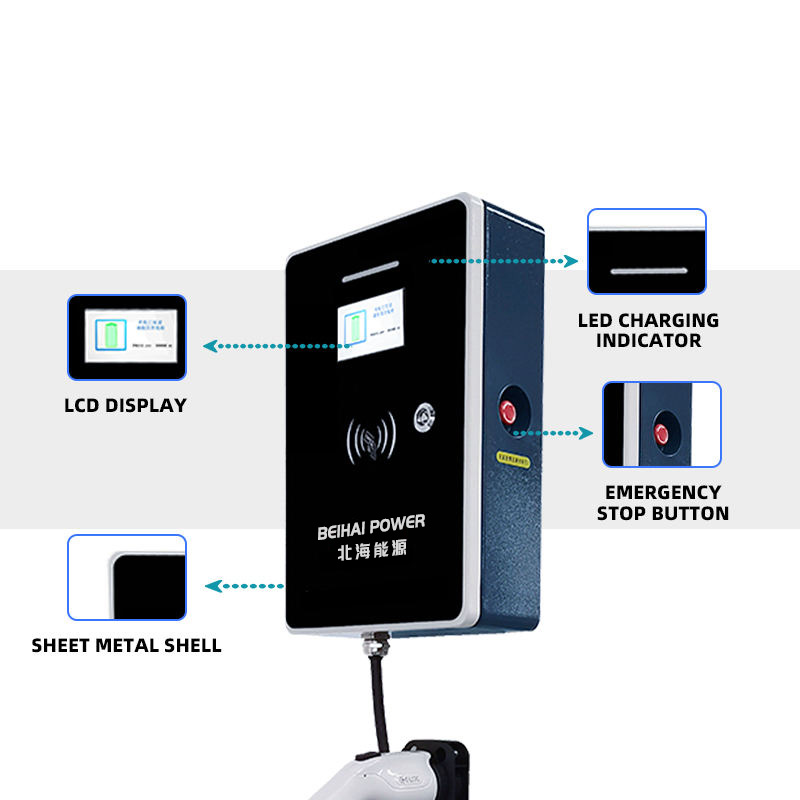

China Smart 22KW Wallbox EV Charger Type 2 Electric Vehicle Charging Pile Level 2 Wall-Mounted Charging Station 380V 32A AC Electric Car Charger Manufacturer, Factory

1 / 5

China Smart 22KW Wallbox EV Charger Type 2 Electric Vehicle Charging Pile Level 2 Wall-Mounted Charging Station 380V 32A AC Electric Car Charger Manufacturer, Factory

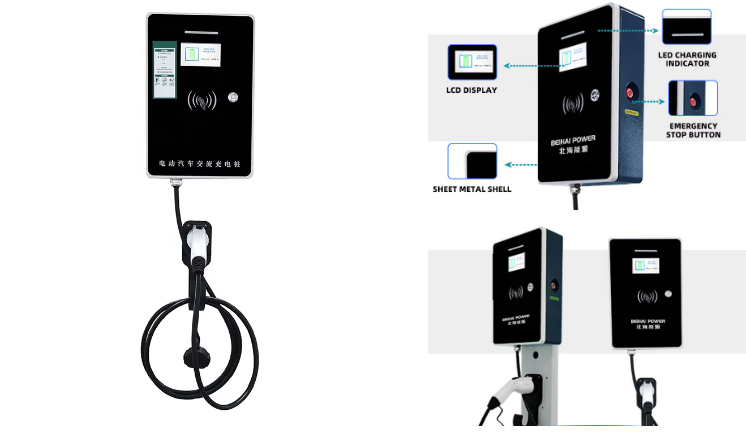

• Swipe card activation • RFID Reader • Both column-mounted and wall-mounted options are available • CE Certiﬁed

Send Inquiry

Product Description

This high-performance, Level 2 wall-mounted charging station delivers powerful and efficient AC charging for your electric car. Featuring a robust Type 2 connector and operating on a 380V, 32A power supply (typically three-phase), it provides rapid energy replenishment, making it ideal for both home and commercial installations. Its Smart capabilities ensure optimal charging management, connectivity, and safety features for a reliable and future-proof charging solution. Simply install this compact, wall-mounted unit and enjoy the convenience of high-speed Level 2 charging. Elevate your electric vehicle charging experience with the Smart EV Charger.

22kw AC Wall Mounted Charging Pile Parameters

Category	Specifications	Data Parameters
Appearance Structure	Dimensions (L x D x H)	270110400 (Wall)
	Weight	5.4kg
	Length of charging cable	3.5m
Electrical Indicators	Connectors	Type1 \|\| Type2 \|\| GBT
	Input Voltage	380 VAC
	Input frequency	50/60Hz
	Output Voltage	380 VDC
	Output current	32A
	Rated power	22KW
	Efficiency	≥94% at nominal output power
	Power factor	0.98
	Communication protocol	OCPP 1.6J
Functional Design	Display	7’’ LCD with touch screen
	RFID system	ISO/IEC 14443A/B
	Access Control	RFID: ISO/IEC 14443A/B \|\| Credit Card Reader (Optional)
	Communication	Ethernet – Standard \|\| 3G/4G \|\| Wifi
Work Environment	Power Electronics Cooling	Natural Cooled
	Operating temperature	-30°C to 55°C
	Working \|\| Storage Humidity	≤ 95% RH \|\| ≤ 99% RH (Non-condensing)
	Altitude	< 2000m
	Ingress Protection	IP65
Safety Design	Safety standard	GB/T, Type2, Type1, CHAdeMo, NACS
	Safety protection	Overvoltage, lightning, overcurrent, leakage, waterproof protection, etc
	Emergency Stop	Emergency Stop Button Disables Output Power

22kw AC Electric Car Charger (Wallbox) Features

High-Speed Three-Phase AC Charging Delivers a powerful 22KW output at 380V (3-Phase) and 32A, providing significantly faster Level 2 charging compared to standard single-phase units.

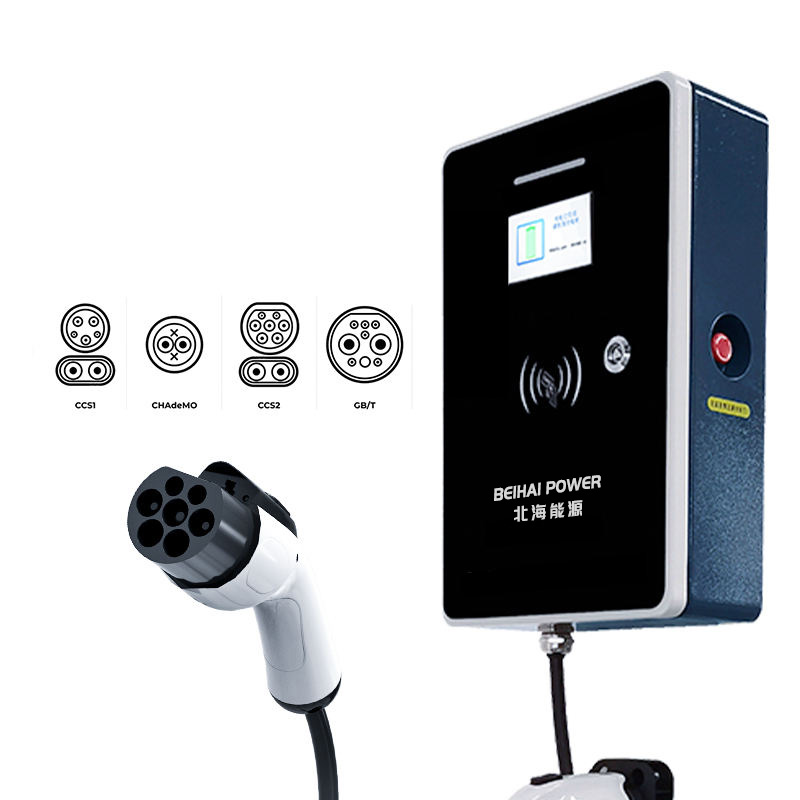

Universal Type 2 Connector Equipped with the industry-standard Type 2 (IEC 62196-2) charging inlet, ensuring broad compatibility with all Type 2-equipped electric vehicles.

Smart Connectivity and Management Includes Smart features incorporating Wi-Fi/Bluetooth/4G connectivity for remote control, schedule charging, power monitoring, and OCPP backend integration.

Durable Wall-Mounted Design Features a compact, wall-mounted form factor with a robust IP65 enclosure for weather resistance, suitable for both indoor and outdoor installations.

Comprehensive Safety Protection Built-in safeguards against overcurrent, overvoltage, leakage current (AC 30mA and DC 6mA), and over-temperature to ensure total user safety.

Frequently Asked Questions

Q1: Can this 22kW charger be used with a standard home socket? No, this unit requires a three-phase 380V power supply and professional installation to handle the high power output safely.

Q2: Is the Type 2 connector compatible with all electric vehicles? It is compatible with all EVs that use the IEC 62196-2 standard, which is the common standard for most modern electric vehicles in Europe and many other regions.

Q3: Can I install this charger outdoors in the rain? Yes, with an IP65 ingress protection rating, this charging station is designed to be waterproof and dustproof, making it perfectly safe for outdoor installations.

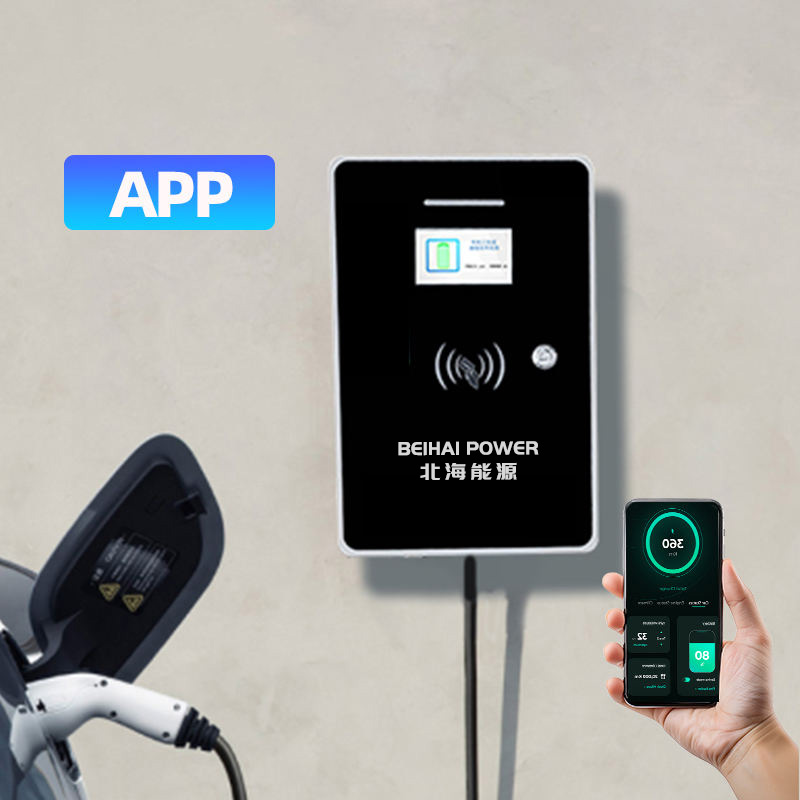

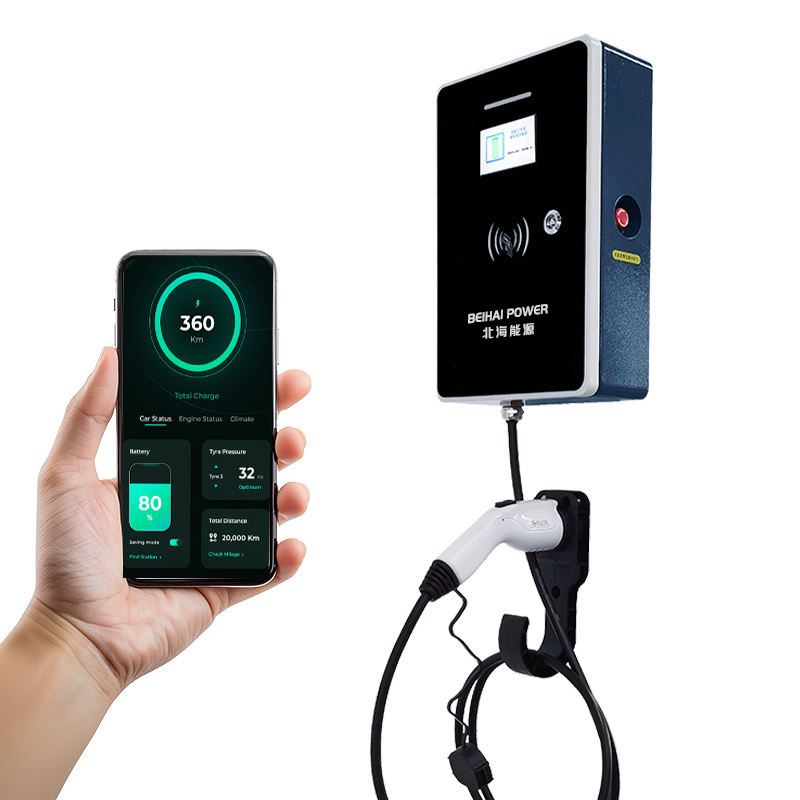

Q4: What are the benefits of the Smart features? Smart capabilities allow you to monitor your charging sessions remotely, schedule charging during off-peak hours to save costs, and manage the device via an app or web interface.

Q5: What happens in case of a power surge? The charger includes built-in lightning and overvoltage protection that will automatically trigger to protect both the internal components of the charger and your vehicle's battery.

Q6: Does it support remote firmware updates? Yes, via its OCPP 1.6J protocol and Wi-Fi/4G connectivity, the charger can support remote monitoring and system management.
