Product Description

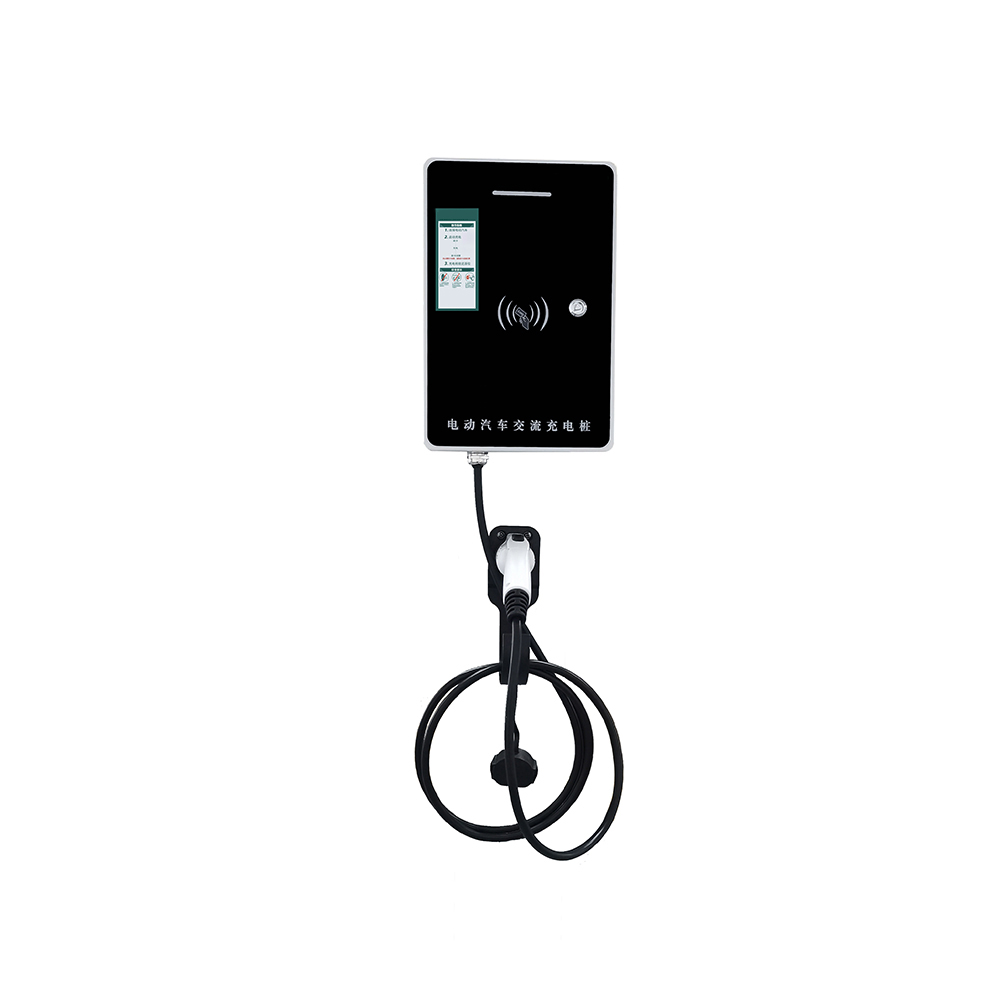

AC charging post, also known as a slow charger, is a device designed to provide charging services for electric vehicles. The AC charging post itself does not have a direct charging function; instead, it needs to be connected to an on-board charging machine (OBC) on the electric vehicle, which converts the AC power into DC power, and then charges the battery of the electric vehicle.
Due to the low power of OBCs, the charging speed of AC chargers is relatively slow. Generally speaking, it takes 6 to 9 hours or even longer to charge an electric vehicle (with a normal battery capacity). AC charging piles are simple in technology and structure, with relatively low installation costs and a variety of types to choose from, such as portable, wall-mounted and floor-mounted, etc., which are suitable for different scenarios and the price of AC charging piles is relatively more affordable, with the price of ordinary household models generally not being too high.
AC charging posts are more suitable for installation in car parks in residential areas, as the charging time is longer and suitable for night-time charging. In addition, some commercial car parks, office buildings and public places will also install AC charging piles to meet the charging needs of different users. Although the charging speed of AC charging station is relatively slow and it takes a long time to fully charge the battery of an electric vehicle, this does not affect its advantages in home charging and long-time parking charging scenarios. Owners can park their EVs near the charging post at night or during their free time to charge, which does not affect daily use and can make full use of the grid’s low hours for charging, reducing charging costs.
Product Parameters
| Unit Type |
BHAC-22KW-2 |
| Technical Parameters |
| AC Input |
Voltage range (V) |
220±15% |
| Frequency range (Hz) |
45~66 |
| AC Output |
Voltage range (V) |
380 |
| Output Power (KW) |
22KW*2 |
| Maximum current (A) |
63 |
| Charging interface |
2 |
| Protection Information |
Operation Instruction |
Power, Charge, Fault |
| Machine Display |
No/4.3-inch display |
| Charging Operation |
Swipe the card or scan the code |
| Metering Mode |
Hourly rate |
| Communication |
Ethernet (Standard Protocol) |
| Heat Dissipation |
Natural Cooling |
| Protection Level |
IP65 |
| Leakage protection (mA) |
30 |
| Other Information |
Reliability (MTBF) |
50,000 hours |
| Size (W*D*H) mm |
270*110*1365 (Floor) / 270*110*400 (Wall) |
| Installation Mode |
Floor / Wall mounted |
| Routing Mode |
Up/Down into line |
| Working Environment |
Altitude (m) |
≤2000 |
| Operating Temp (℃) |
-20 ~ 50 |
| Storage Temp (℃) |
-40 ~ 70 |
| Relative Humidity |
5%~95% |
Product Features
01
Smaller power, flexible installation: Common power levels of 7kW, 11kW, and 22kW allow for flexible installation adapted to various scenarios.
02
Slow charging speed: Optimized for long-term parking, typically taking 6-8 hours for a full charge, ideal for night-time or workplace charging.
03
Lower cost: Lower manufacturing and installation costs make it highly suitable for home and commercial use.
04
Safe and reliable: Features advanced monitoring for over-voltage, under-voltage, overload, short-circuit, and leakage protection.
05
Friendly human-computer interaction: Large LCD color touch screen with multiple modes (quantitative, timed, fixed amount, and full power charging).
Applications
AC charging piles are widely used in residential areas, office buildings, and public spaces to meet diverse charging needs:
Home Charging
Commercial Car Parks
Public Charging Stations
Charging Pile Operators
Scenic Spots
Urban Roads
Frequently Asked Questions
How long does it typically take to charge an EV with an AC charger?
Usually, it takes between 6 to 9 hours to fully charge a standard battery, making it ideal for overnight use.
What is the main difference between AC and DC charging?
AC charging is "slow charging" using the vehicle's onboard charger, while DC is "fast charging" providing power directly to the battery.
Can these units be installed outdoors?
Yes, with an IP65 protection level, our charging stations are designed to withstand dust and water, making them suitable for outdoor parking lots.
What are the available installation options?
AC charging posts are highly flexible and can be installed as wall-mounted units or floor-standing (landing type) pillars.
Does the charging station include safety protections?
Absolutely. It includes comprehensive protections for leakage, over-voltage, under-voltage, overload, and short-circuits to ensure safety.
How can users start the charging process?
Users can easily initiate charging by swiping an authorized RFID card or scanning a code through the interaction interface.
