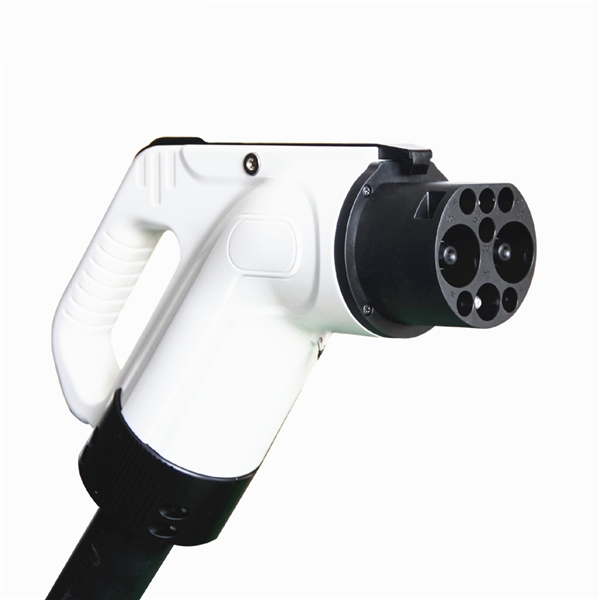

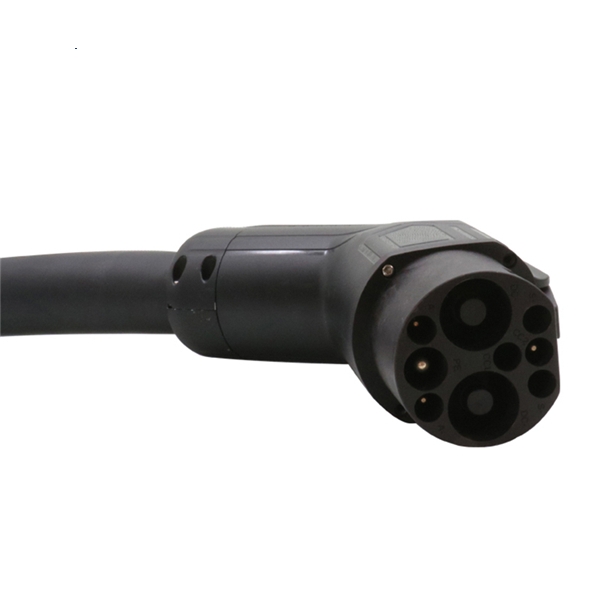

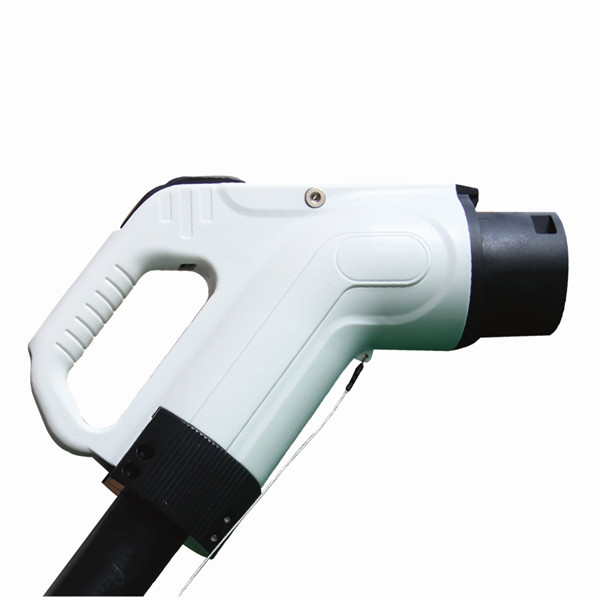

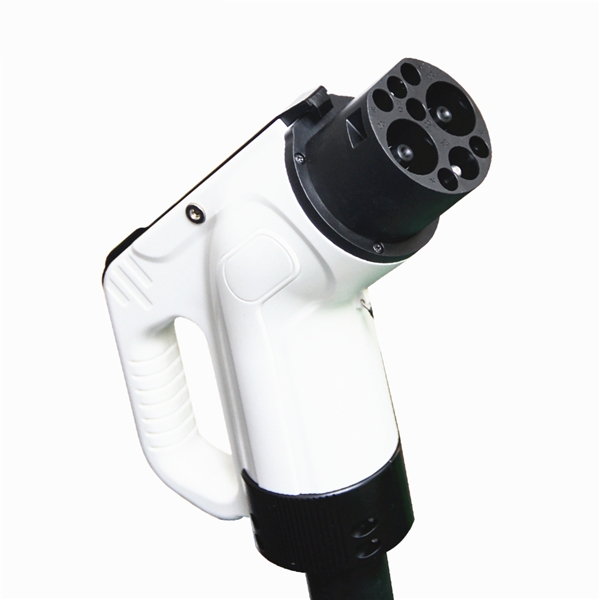

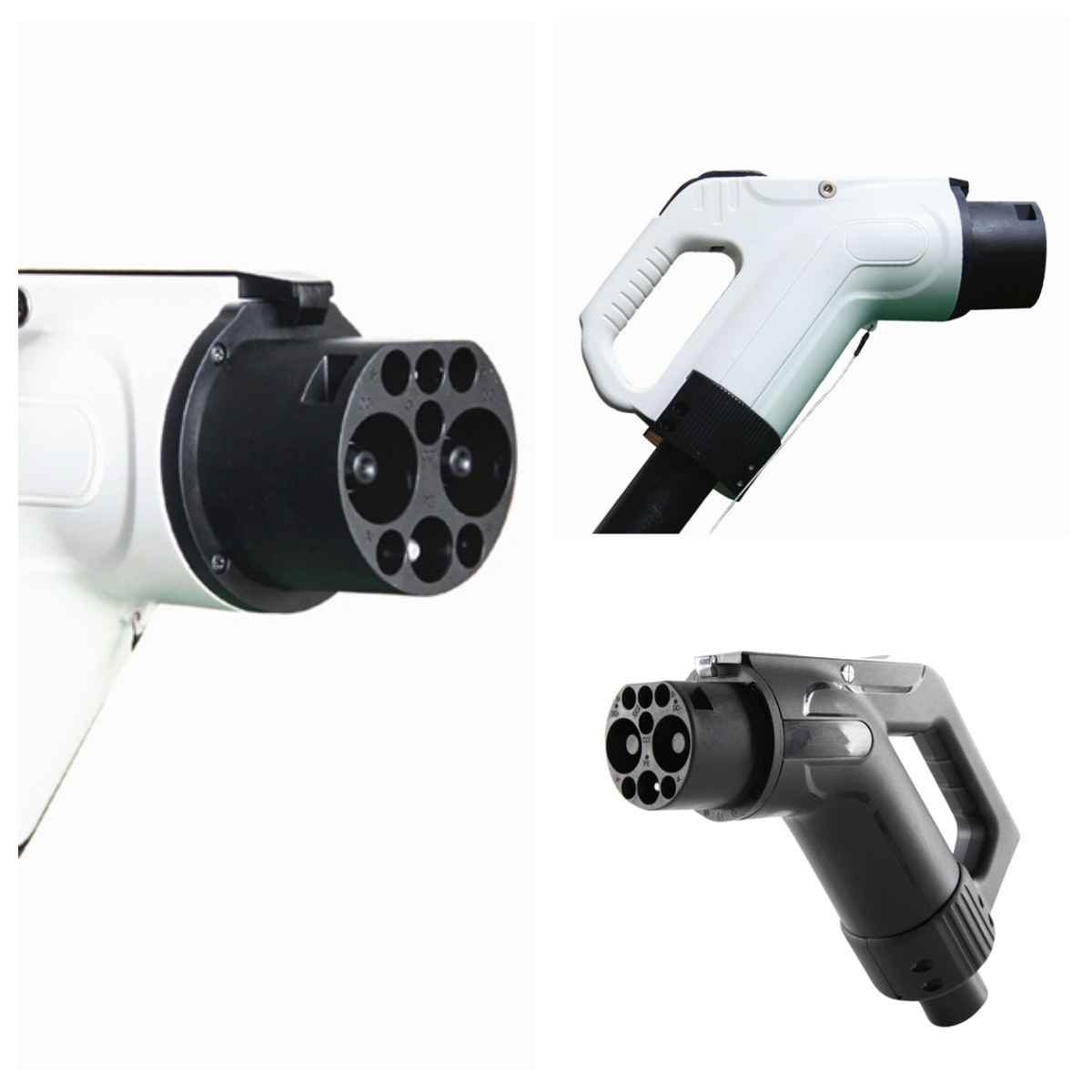

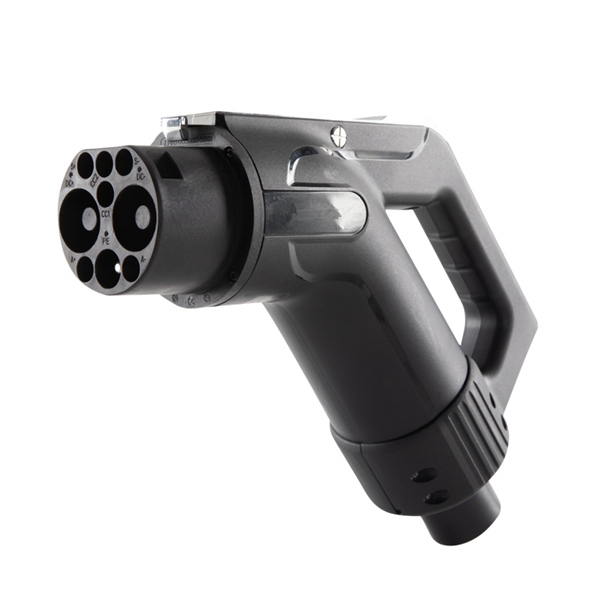

The 120KW GB/T EV Charging Gun 250A DC Fast Charging Connector is a cutting-edge solution for electric vehicle (EV) charging stations, designed to meet the increasing demands of the EV market with efficiency, safety, and reliability.
| Features | Meet GB/T 20234.2-2015 regulations and requirements |
| Nice appearance, hand-held ergonomic design, easy plug | |
| Safety pins insulated head design to prevent accidental direct contact with staff | |
| Excellent protection performance, protection grade IP55 (working condition) | |
| Mechanical properties | Mechanical life: no-load plug in/pull out > 10000 times |
| Impact of external force: can afford 1m drop and 2t vehicle run over pressure | |
| Applied Materials | Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| Pin: Copper alloy, silver + thermoplastic on the top | |
| Environmental performance | Operating temperature: -30℃ to +50℃ |
| Model | Rated Current | Cable Specification |
|---|---|---|
| BH-GBT-EVDC80 | 80A | 3 X 16mm² + 2 X 4mm² + 2P(4 X 0.75mm²) + 2P(2 X 0.75mm²) |
| BH-GBT-EVDC125 | 125A | 2 X 35mm² + 1 X 16mm² + 2 X 4mm² + 2P(4 X 0.75mm²) + 2P(2 X 0.75mm²) |
| BH-GBT-EVDC200 | 200A | 2 X 70mm² + 1 X 25mm² + 2 X 4mm² + 2P(4 X 0.75mm²) + 2P(2 X 0.75mm²) |
| BH-GBT-EVDC250 | 250A | 2 X 80mm² + 1 X 25mm² + 2 X 4mm² + 2P(4 X 0.75mm²) + 2P(2 X 0.75mm²) |
This charging connector is ideal for various applications, including:
Enhance charging efficiency and reduce waiting times for EV drivers.
Support rapid charging for commercial and government fleets.
Provide convenient and reliable charging for residents and tenants.
