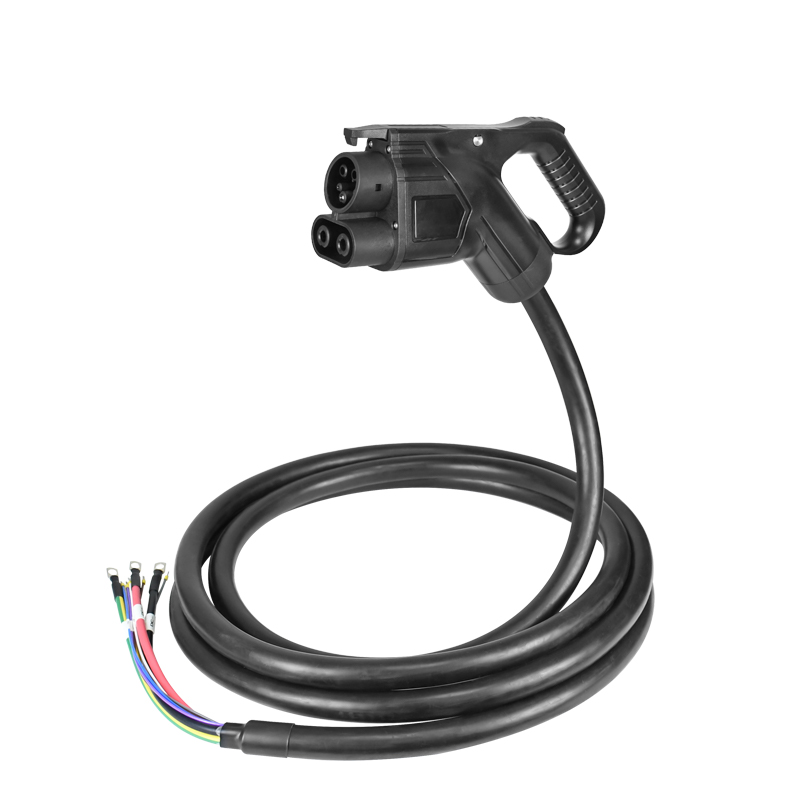

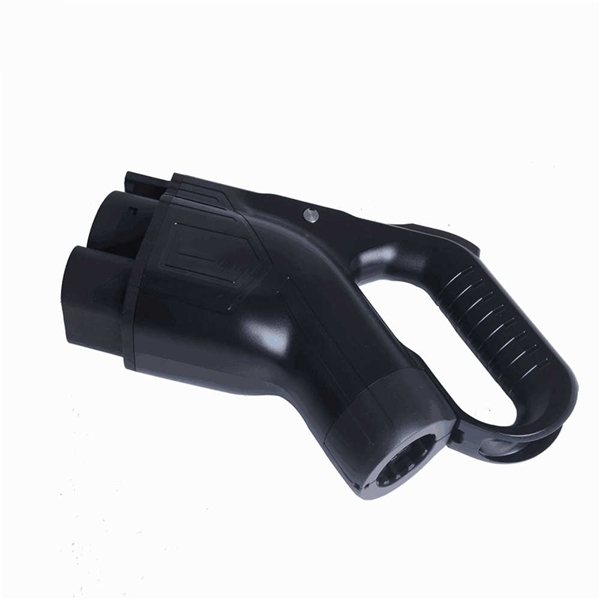

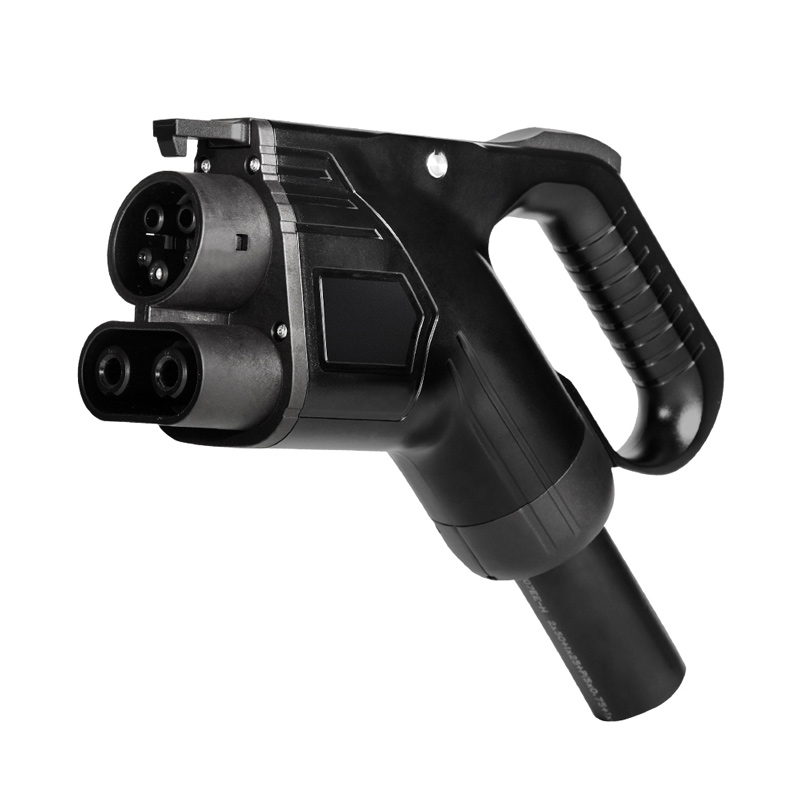

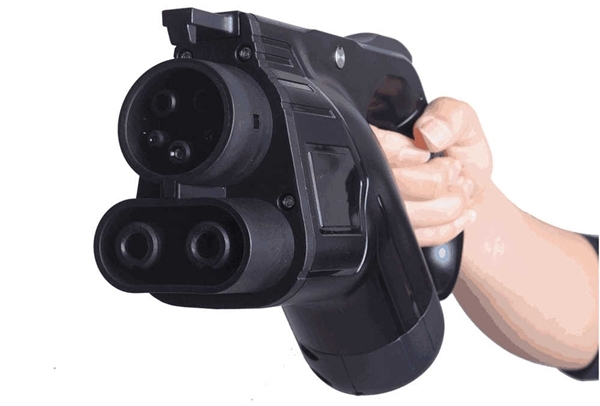

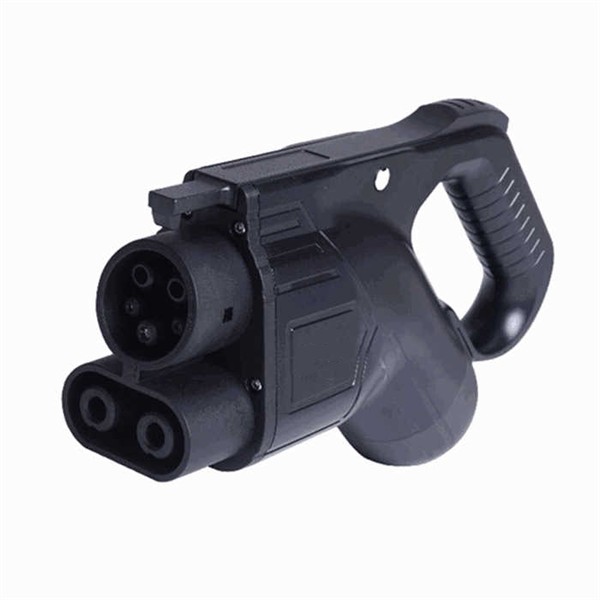

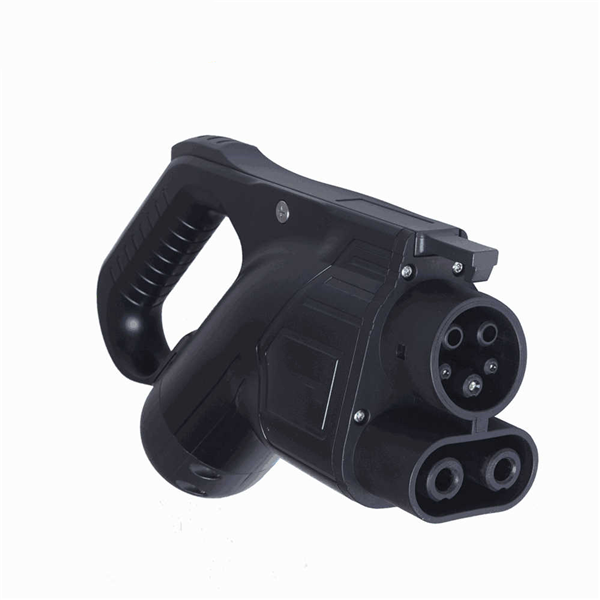

The CCS1 (Combined Charging System 1) EV charging plug is an efficient and convenient charging solution designed specifically for North American electric vehicles. Supporting current options of 80A, 125A, 150A, 200A, 350A and a maximum voltage of 1000V (Liquid Cooling), it combines AC charging and DC fast charging functions to support a variety of charging modes from home charging to highway fast charging. The CCS1 plug adopts a standardised design to make the charging process simpler and safer, and is highly compatible with a wide range of brands of electric vehicles. Equipped with high-quality contact points to ensure stable current during charging, and multiple protection mechanisms such as overload and over-temperature protection to ensure safe use. In addition, the CCS1 supports intelligent communication to monitor the battery charging status in real time, optimising charging efficiency and prolonging battery life.
| Rated voltage | 1000V Max. | Cable bending radius | ≤300mm |
| Voltage Current | 500A Max. (continue) | Max. Cable length | 6m Max. |
| Power | 500KW Max. | Cable weight | 1.5kg/m |
| Withstanding voltage | 3500V AC / 1min | Operating altitude | ≤2000m |
| Insulation resistance | Normal condition ≥ 2000MΩ | Plastic part material | Thermoplastic |
| Meet requirements of Chapter 21 of IEC 62196-1 under damp and hot conditions | Contact material | Copper | |
| Contact Plating | Silver plating | ||
| Temperature sensor | PT1000 | Cooling device size | 415mm*494mm*200mm (W*H*L) |
| Conductive operating temperature | 90℃ | Cooling device rate voltage | 24V DC |
| Protection (connector) | IP55 | Cooling device rated current | 12A |
| Protection (Cooling device) | Pump & Fan: IP54 / Device no protection | Cooling device rated power | 288W |
| Insertion/withdrawal force | ≤100N | Cooling device noise | ≤58dB |
| Insertion/withdrawal cycles | 10000 (No load) | Cooling device weight | 20kg |
| Operating temperature | -30℃ ~ 50℃ | Coolant | Silicon oil |
| Charger Connector Model | Rated Current | Cable Specification | Cable Color |
|---|---|---|---|
| BH-CSS1-EV500P | 350A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
| BH-CCS1-EV200P | 200A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
| BH-CCS1-EV150P | 150A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
| BH-CCS1-EV125P | 125A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
| BH-CCS1-EV80P | 80A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
This CCS1 Plug is ideal for use in public DC fast charging stations, highway service areas, fleet charging depots, and commercial EV charging hubs. Its high current and voltage capabilities make it suitable for charging both passenger vehicles and commercial EVs, including trucks and buses.
This product complies with international CCS1 standards, ensuring compatibility with a wide range of electric vehicles and charging stations. It is tested to meet rigorous quality and safety standards, making it a dependable choice for fast-charging networks.
