63A Three-Phase Type 2 EV Charging Plug (IEC 62196-2)

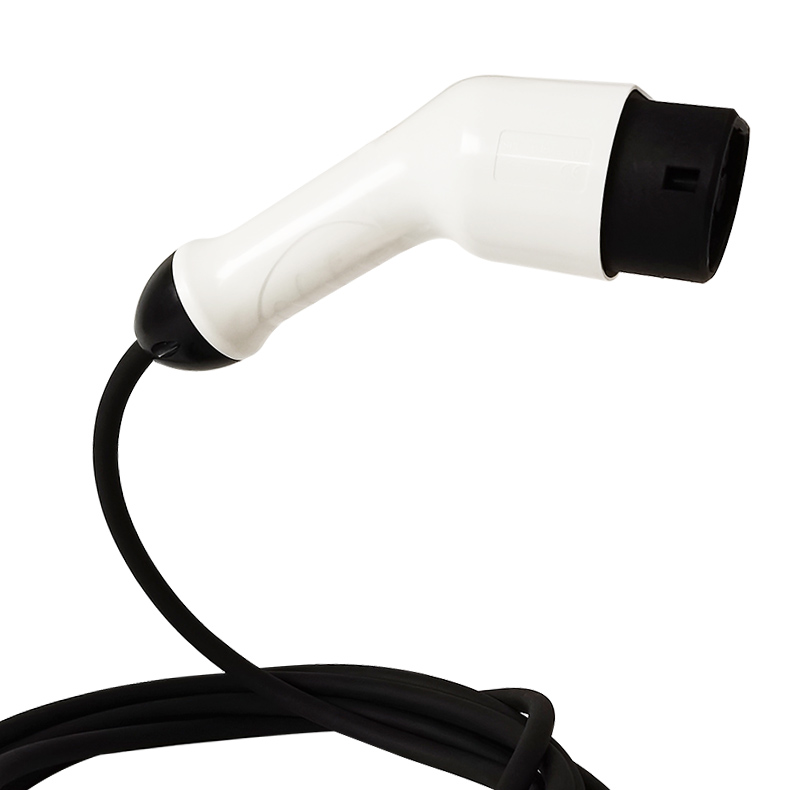

The 16A 32A Type 2 Electric Car Charging Connector (IEC 62196-2) is a widely used AC charging plug designed for electric vehicles (EVs). Compliant with the IEC 62196-2 standard, this Type 2 connector is primarily used in Europe and other regions that follow international EV charging standards. The connector supports both 16A and 32A current ratings, offering flexible charging options depending on the power supply and the vehicle's charging requirements.
The Type 2 EV Charging connector is built for durability and reliability, featuring robust construction with high-quality materials that ensure safe and efficient charging. It is equipped with a lock mechanism to prevent accidental unplugging during the charging process and includes multiple safety features like overcurrent protection, thermal protection, and secure grounding.
The 16A and 32A variants allow for different charging speeds: 16A offers a standard charging rate, while 32A provides faster charging for compatible vehicles. This versatility makes the Type 2 connector an ideal choice for home charging stations, public charging points, and commercial EV infrastructure.
EV Charger Connector Details
| Category |
Technical Specifications |
| Charger Connector Features |
Meet 62196-2 IEC 2010 SHEET 2-IIe standard |
| Nice appearance, hand-held ergonomic design, easy plug |
| Excellent protection performance, protection grade IP65 (working condition) |
| Mechanical Properties |
Mechanical life: no-load plug in/pull out > 5000 times |
| Coupled insertion force: > 45N < 80N |
| Impact of external force: can afford 1m drop and 2t vehicle run over pressure |
| Electrical Performance |
Rated current: 16A, 32A, 40A, 50A, 70A, 80A |
| Operation voltage: AC 120V / AC 240V |
| Insulation resistance: > 1000MΩ (DC500V) |
| Terminal temperature rise: < 50K |
| Withstand Voltage: 3200V |
| Contact Resistance: 0.5mΩ Max |
| Applied Materials |
Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| Contact bush: Copper alloy, silver plating |
| Environmental |
Operating temperature: -30°C ~ +50°C |

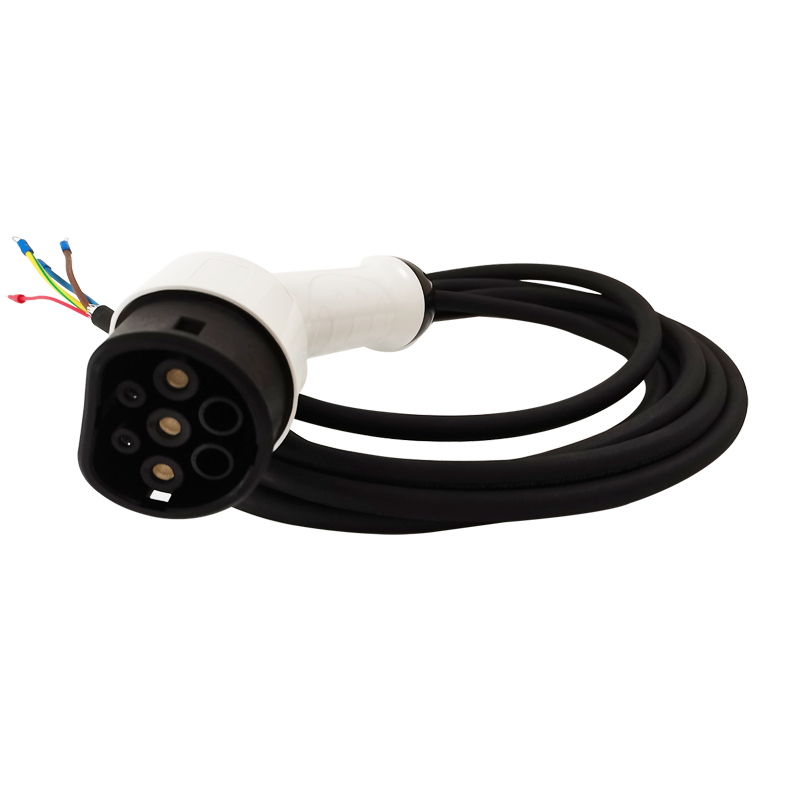

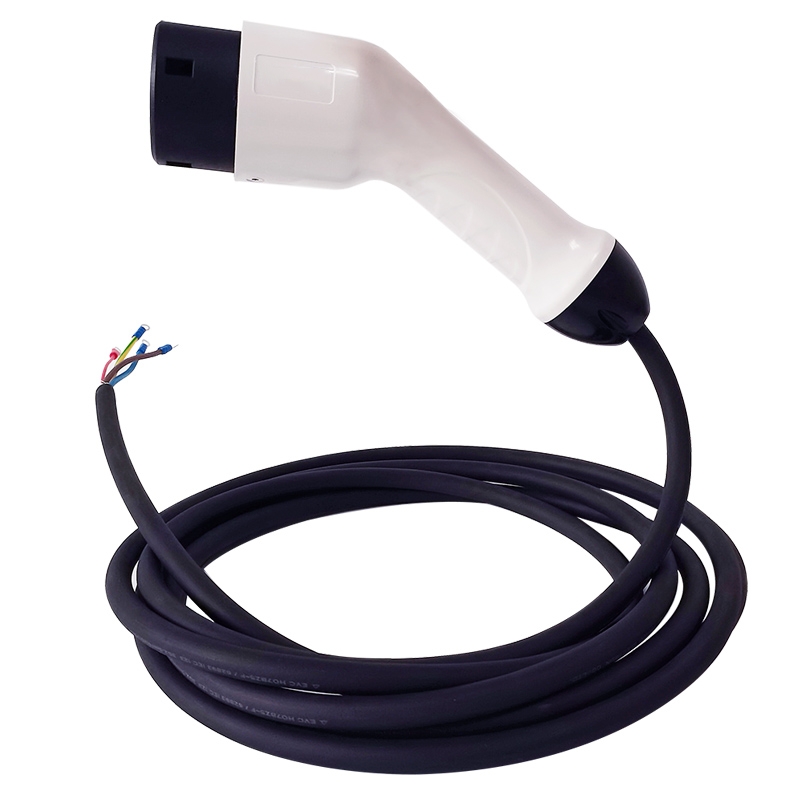

Model Selection and Standard Wiring
| Model Name |
Rated Current |
Cable Specification |
| T2-16A-SP |
16A Single phase |
5 X 6mm² + 2 X 0.5mm² |
| T2-16A-TP |
16A Three phase |
5 X 16mm² + 5 X 0.75mm² |
| T2-32A-SP |
32A Single phase |
5 X 6mm² + 2 X 0.5mm² |
| T2-32A-TP |
32A Three phase |
5 X 16mm² + 5 X 0.75mm² |
Charger Connector Key Features
Wide Compatibility
Fully compatible with all Type 2 interface EVs, including leading brands like BMW, Mercedes-Benz, Audi, Volkswagen, and Tesla (with adapter). Ideal for home use, public charging stations, and commercial EV fleets.
Durable and Weatherproof Design
Constructed with high-quality, temperature-resistant materials that ensure long-lasting performance. Certified with an IP54 protection rating, safeguarding against dust, water, and adverse weather conditions.
Enhanced Safety and Reliability
Equipped with a robust grounding system and high-quality conductive components to ensure a safe and stable connection. Advanced contact technology minimizes heat generation.
Ergonomic and Practical Design
The plug features a comfortable grip and a lightweight design for effortless handling. Easy to connect and disconnect, making it suitable for daily use by EV owners.
Frequently Asked Questions (FAQ)
Q1: Is this Type 2 connector compatible with my Tesla?
A: Yes, this Type 2 (IEC 62196-2) connector is compatible with Tesla vehicles in Europe directly, and other Tesla models when using a standard Type 2 adapter.
Q2: What is the difference between 16A and 32A charging?
A: 32A allows for faster power delivery, significantly reducing charging time compared to the 16A version, provided your vehicle's onboard charger supports the higher current.
Q3: Can this plug be used outdoors in the rain?
A: Yes, the connector is designed with an IP65 or IP54 protection grade (depending on the specific working condition), making it resistant to water splashes and dust.
Q4: What safety certifications does this product meet?
A: This connector fully complies with the IEC 62196-2 international standard and features UL94 V-0 flame-retardant materials for maximum safety.
Q5: How many times can the plug be used before it wears out?
A: The mechanical life of the connector is rated for over 10,000 mating cycles (plugging in and pulling out) under normal conditions.
Q6: Does it support both single-phase and three-phase charging?
A: Yes, we offer models that support both single-phase and three-phase configurations to suit your specific home or commercial power supply.
