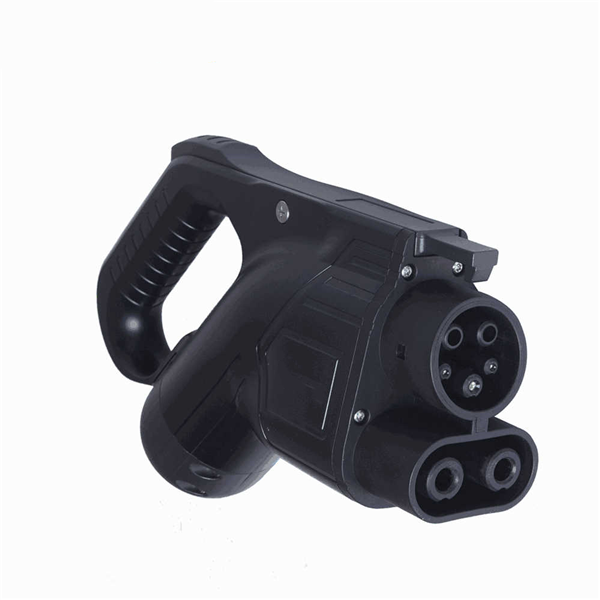

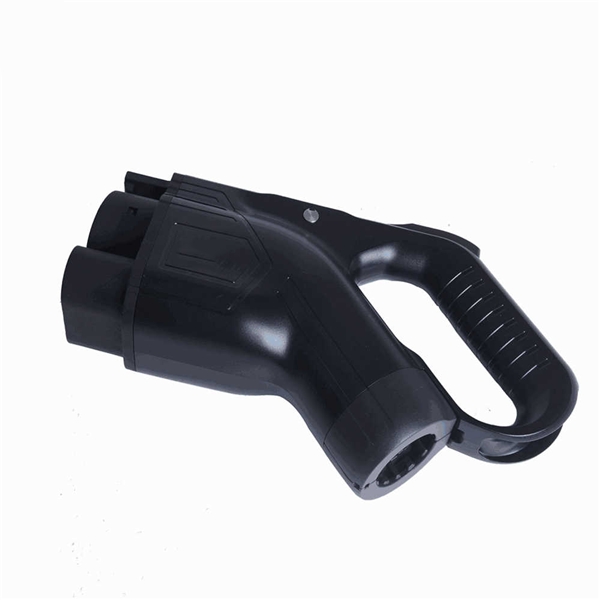

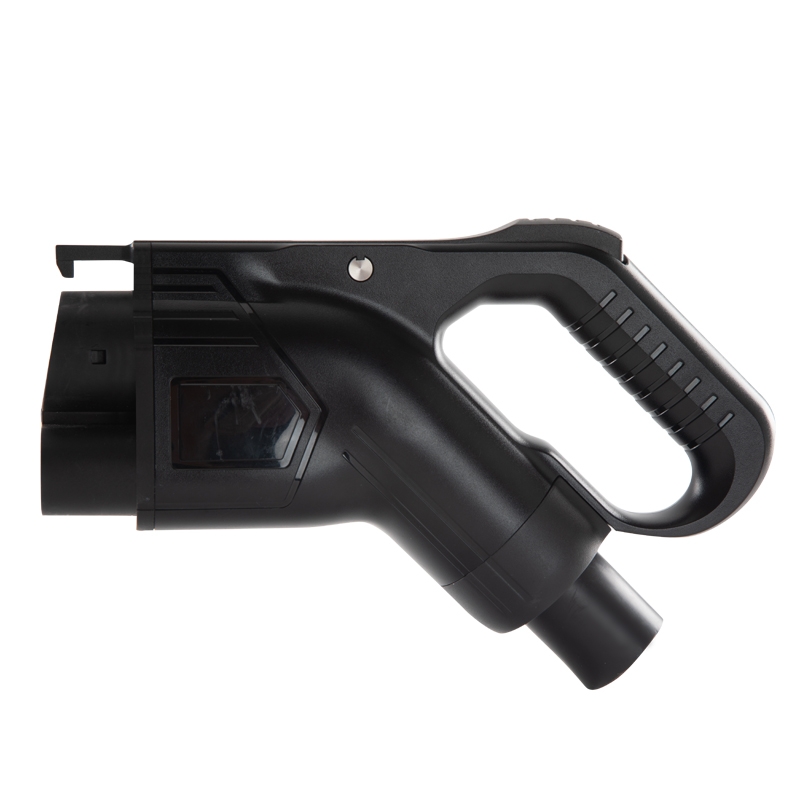

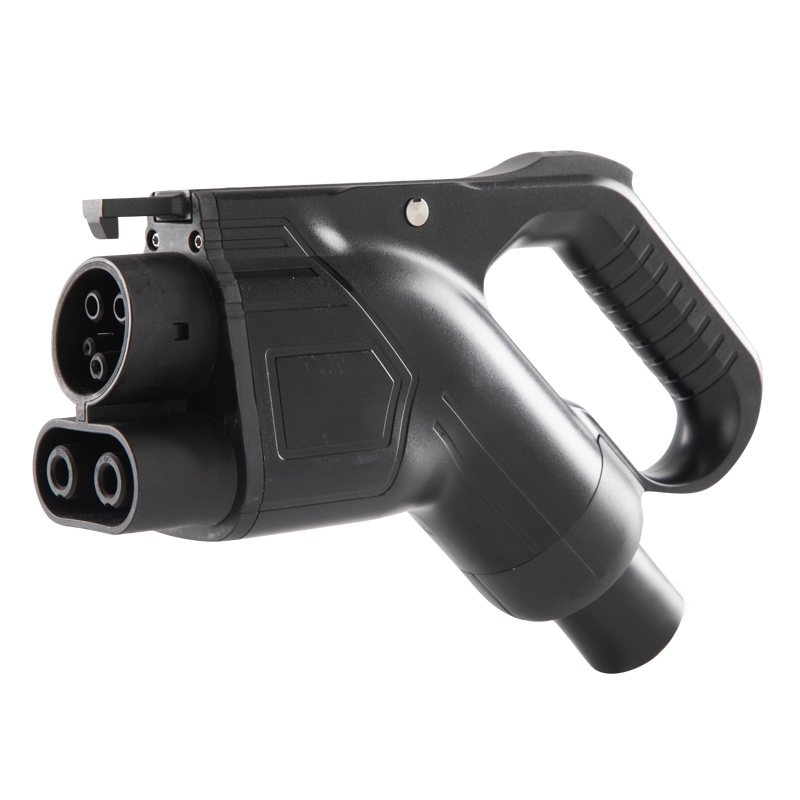

The CCS1 (Combined Charging System 1) EV charging plug is an efficient and convenient charging solution designed specifically for North American electric vehicles. Supporting current options of 80A, 125A, 150A, 200A and a maximum voltage of 1000V, it combines AC charging and DC fast charging functions to support a variety of charging modes from home charging to highway fast charging.
The CCS1 plug adopts a standardised design to make the charging process simpler and safer, and is highly compatible with a wide range of brands of electric vehicles. This connector is equipped with high-quality contact points to ensure stable current during charging, and multiple protection mechanisms such as overload and over-temperature protection to ensure safe use. In addition, the CCS1 supports intelligent communication to monitor the battery charging status in real time, optimising charging efficiency and prolonging battery life.
| Charger Connector Features |
• Meet 62196-3 IEC 2014 SHEET 3-IIIB standard • Concise appearance, support back installation • Back Protection class IP65 • DC Max charging power: 90kW • AC Max charging power: 41.5kW |
| Mechanical Properties |
• Mechanical life: no-load plug in/pull out > 10000 times • Impact of external force: can afford 1m drop and 2t vehicle run over pressure |
| Electrical Performance |
• DC input: 80A, 125A, 150A, 200A 1000V DC MAX • AC input: 16A 32A 63A 240/415V AC MAX • Insulation resistance: > 2000MΩ (DC1000V) • Terminal temperature rise: < 50K • Withstand Voltage: 3200V • Contact resistance: 0.5mΩ Max |
| Applied Materials |
• Case Material: Thermoplastic, flame retardant grade UL94 V-0 • Pin: Copper alloy, silver + thermoplastic on the top |
| Environmental Performance | Operating temperature: -30°C ~ +50°C |

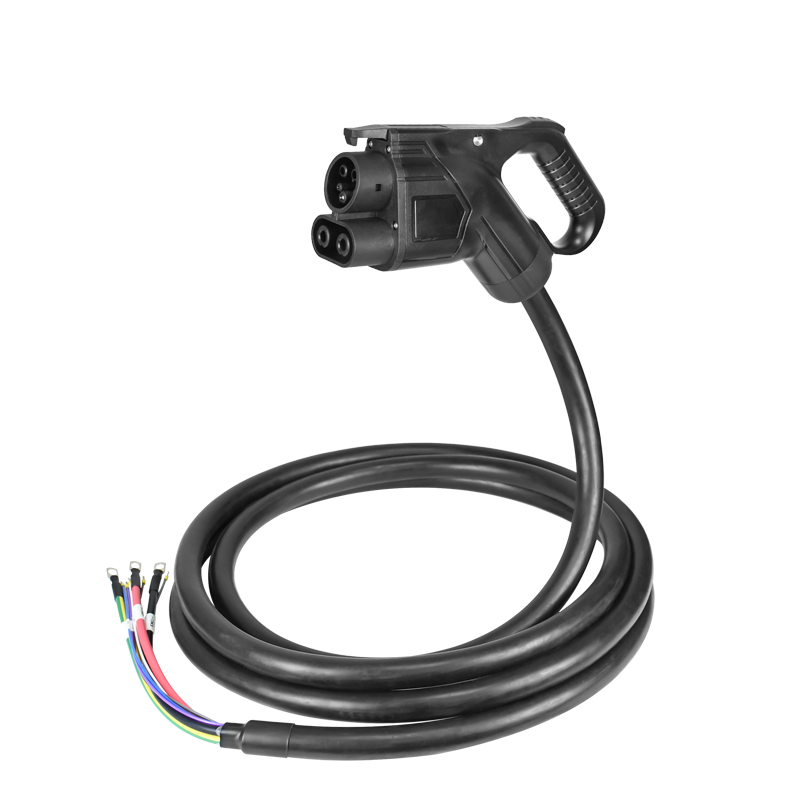

| Model | Rated Current | Cable Specification | Cable Color |
|---|---|---|---|
| EV200P Series | 200A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
| EV150P Series | 150A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
| EV125P Series | 125A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
| EV80P Series | 80A | 2 X 50mm² + 1 X 25mm² + 6 X 0.75mm² | Black or customized |
Ideal for use in public DC fast charging stations, highway service areas, fleet charging depots, and commercial EV charging hubs. Its high current and voltage capabilities make it suitable for charging both passenger vehicles and commercial EVs, including trucks and buses.
This product complies with international CCS1 standards, ensuring compatibility with a wide range of electric vehicles and charging stations. It is tested to meet rigorous quality and safety standards, making it a dependable choice for fast-charging networks.
