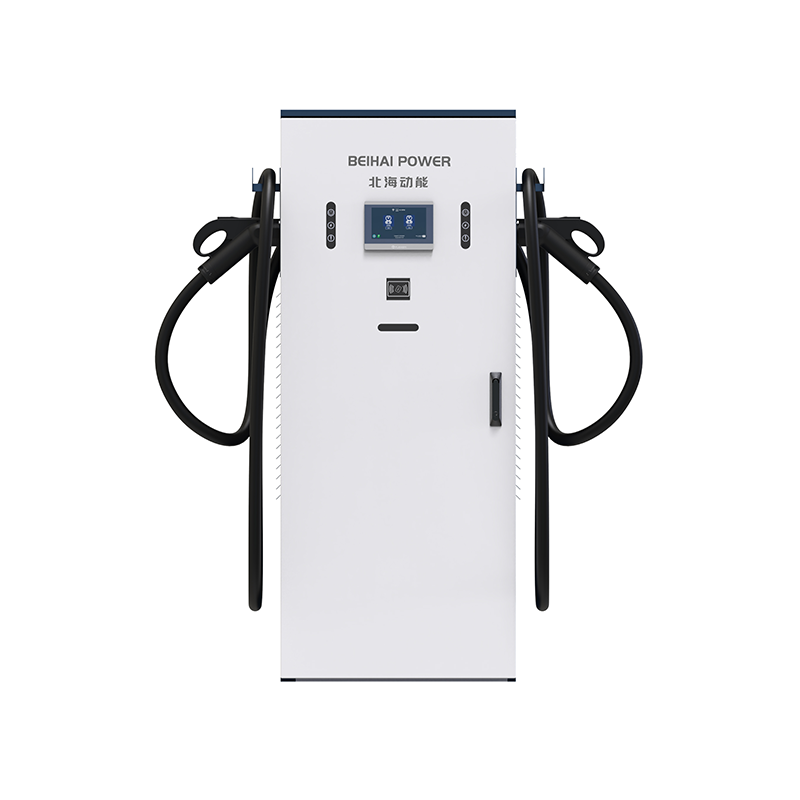

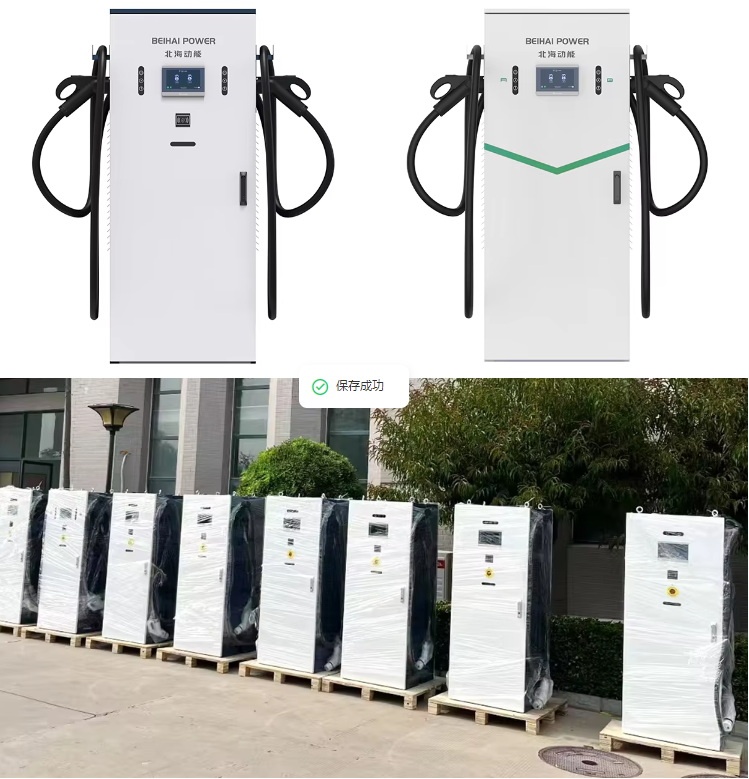

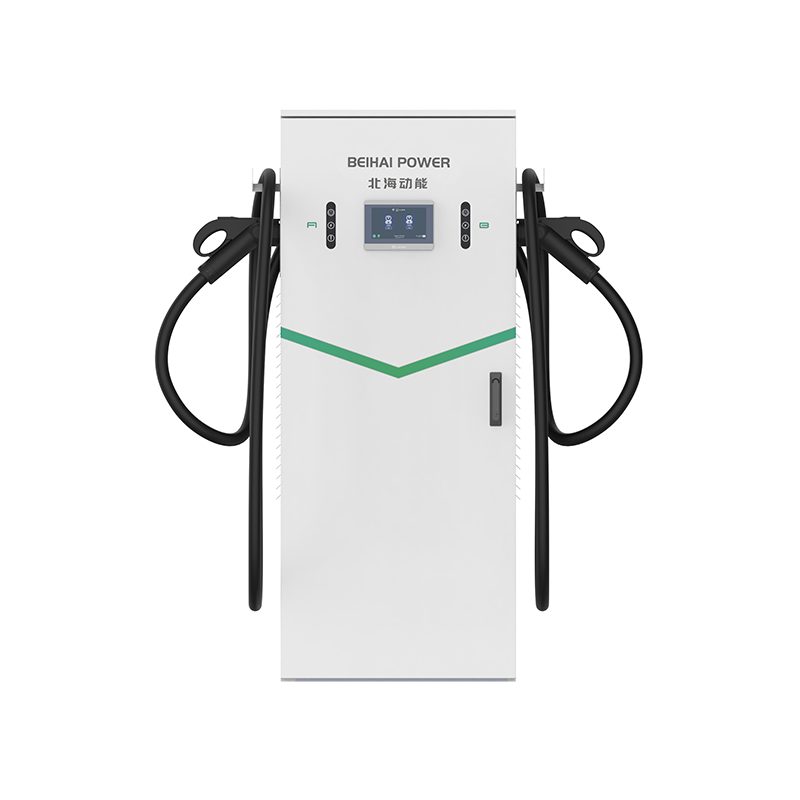

This 120kW high-efficiency electric vehicle charger boasts fast charging speed and supports dual-gun charging, enabling quick charging for vehicles with high power and large battery capacity.
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance Structure | Dimensions (L x D x H) | 700mm x 400mm x 1700mm |
| Weight | 200kg | |
| Length of charging cable | 5m | |
| Electrical Indicators | Connectors | CCS1 || CCS2 || CHAdeMO || GBT |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) | |
| Input frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC | |
| Output current | 0 to 400A | |
| Rated power | 120kW | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | 0.98 | |
| Communication protocol | OCPP 1.6J | |
| Functional Design | Display | 7’’ LCD with touch screen |
| RFID system | ISO/IEC 14443A/B | |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet – Standard || 3G/4G || Wifi | |
| Work Environment | Cooling | Air Cooled |
| Operating temperature | -30°C to 55°C | |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 | |
| Safety Design | Safety standard | GB/T, CCS2, CCS1, CHAdeMO, NACS |
| Safety protection | Overvoltage, lightning, overcurrent, leakage, waterproof protection, etc. | |
| Emergency Stop | Emergency Stop Button Disables Output Power |
