The 40-360kW Commercial DC Split Electric Vehicle Charger is a game-changing charging device. It offers unrivaled power output and flexibility to meet the needs of a wide range of EV models. With a power range from 40 kW to 360 kW, it provides easy and fast charging for daily commuters, while dramatically reducing charging time for high-performance electric vehicles. This charger features a split design with modular installation and expandability, allowing operators to easily expand or upgrade charging stations as needed. It is floor-mounted for convenience and durability, and adapts to a variety of environments, such as urban parking lots, highway rest stops and commercial complexes. The charger is made of high-quality, corrosion-resistant materials that provide reliable charging in adverse weather conditions.
Spanning a power range from 40kW to an impressive 360kW, this charger caters to a diverse array of EV models. For daily commuters with smaller battery capacities, the 40kW option offers a convenient and swift top-up during a short stop. On the other end of the spectrum, high-performance EVs with large batteries can take full advantage of the 360kW power delivery, slashing charging times significantly. Imagine being able to add hundreds of kilometers of range in just a matter of minutes, making long-distance travel in an EV as seamless as refueling a traditional gasoline car.
The split design of the charger allows for modular installation and scalability, meaning charging station operators can start with a basic setup and easily expand or upgrade as demand grows. This flexibility optimizes initial investment and future-proofs the infrastructure.

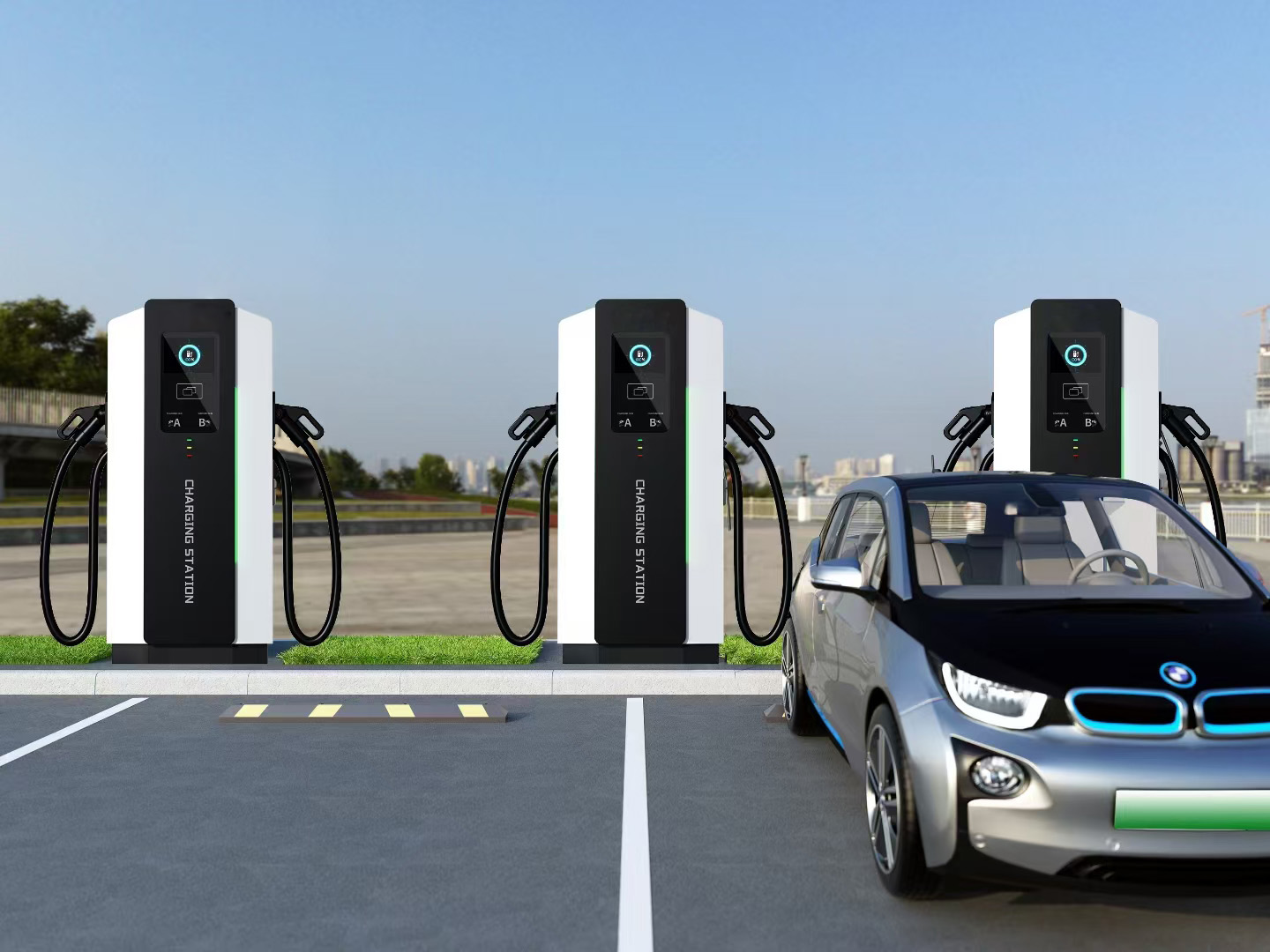

Positioned as a floor-mounted fast EV charger pile, it integrates seamlessly into various environments. Whether it's a bustling urban parking lot, a highway rest stop, or a commercial complex, its sturdy construction and ergonomic design make it both accessible and unobtrusive. The floor-mounted setup minimizes clutter and provides a clear charging area, reducing the risk of accidental damage to vehicles or the charger itself.
Built to withstand the rigors of heavy use and harsh weather conditions, the charger is fabricated from high-quality, corrosion-resistant materials. Rain, snow, extreme heat, or cold – it stands resilient, ensuring reliable charging services year-round. This durability translates to fewer maintenance downtimes, maximizing uptime for EV owners.
As more and more countries and cities commit to reducing carbon emissions and transitioning to sustainable transportation, this 40 - 360kW Commercial DC Split EV Charger is at the forefront of this revolution. It's not just a piece of charging equipment; it's a catalyst for change. By enabling faster, more efficient charging, it alleviates range anxiety — one of the major hurdles in EV adoption.
Moreover, it empowers businesses and municipalities to build comprehensive charging networks that can support the influx of EVs expected in the coming years. With its advanced technology and user-friendly features, such as intuitive touchscreen interfaces for easy operation and integrated payment systems, it offers a seamless charging experience for drivers.
| Model Name | HDRCDJ-40KW-2 | HDRCDJ-60KW-2 | HDRCDJ-80KW-2 | HDRCDJ-120KW-2 | HDRCDJ-160KW-2 | HDRCDJ-180KW-2 |
| AC Nominal Input | ||||||
| Voltage (V) | 380 ± 15% | |||||
| Frequency (Hz) | 45-66 Hz | |||||
| Input power factor | ≥ 0.99 | |||||
| Current Harmonics (THDI) | ≤ 5% | |||||
| DC Output | ||||||
| Efficiency | ≥ 96% | |||||
| Voltage (V) | 200~750V | |||||
| Power | 40KW | 60KW | 80KW | 120KW | 160KW | 180KW |
| Current | 80A | 120A | 160A | 240A | 320A | 360A |
| Charging port | 2 | |||||
| Cable Length | 5M | |||||
| Category | Parameter Item | Specification Details |
| Other Equipment Information | Noise (dB) | < 65 |
| Precision of steady current | ≤ ±1% | |
| Voltage regulation accuracy | ≤ ±0.5% | |
| Output current error | ≤ ±1% | |
| Output voltage error | ≤ ±0.5% | |
| Average current imbalance degree | ≤ ±5% | |
| Screen | 7 Inch industrial screen | |
| Charging Operation | Swiping Card | |
| Energy Meter | MID certified | |
| LED Indicator | Green/yellow/red color for different status | |
| Communication mode | Ethernet network | |
| Cooling method | Air cooling | |
| Protection Grade | IP 54 | |
| BMS Auxiliary Power Unit | 12V/24V | |
| Reliability (MTBF) | 50000 hours | |
| Installation | Installation Method | Pedestal installation |
1. What is the power output range of this Commercial DC Split EV Charger?
The charger features an extensive power output range spanning from 40kW to 360kW, allowing it to efficiently serve diverse EV models from daily commuters to high-performance vehicles.
2. What are the operational advantages of the charger's split design?
The split design provides excellent engineering modularity and scalability. Charging station operators can initiate setups with basic capacities and seamlessly expand or upgrade them as demand increases.
3. Where can this floor-mounted charging equipment be installed?
Due to its robust pedestal installation method and resilient design, it integrates perfectly into various settings such as bustling urban parking lots, highway rest stops, and modern commercial complexes.
4. How well does the charger perform under severe environmental weather conditions?
Constructed with premium, high-quality, corrosion-resistant materials and featuring an IP54 protection grade, the charger delivers stable, year-round operation through rain, snow, extreme heat, and severe cold.
5. What kind of user interface and control systems does the unit utilize?
The charger is equipped with a user-friendly 7-inch industrial touchscreen interface, integrated smart payment mechanisms, card-swiping operational setups, and multi-colored LED status indicators for real-time tracking.
6. What are the key input and structural technical standards of the infrastructure?
It operates on a nominal AC input voltage of 380V ± 15% with an input power factor of ≥ 0.99. It features air-cooling, MID certified energy metering, Ethernet communication connectivity, and an MTBF rating of 50,000 hours.
