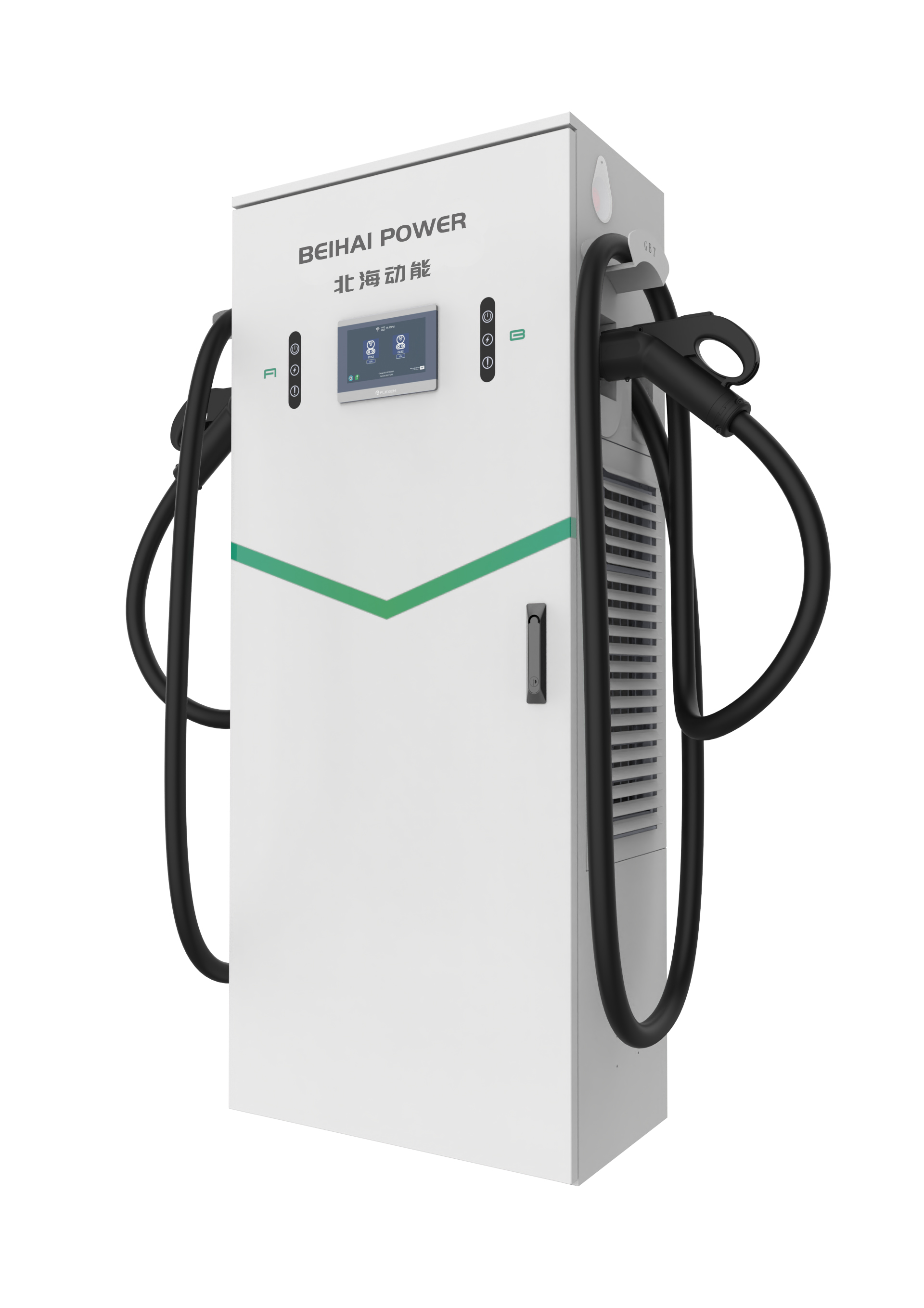

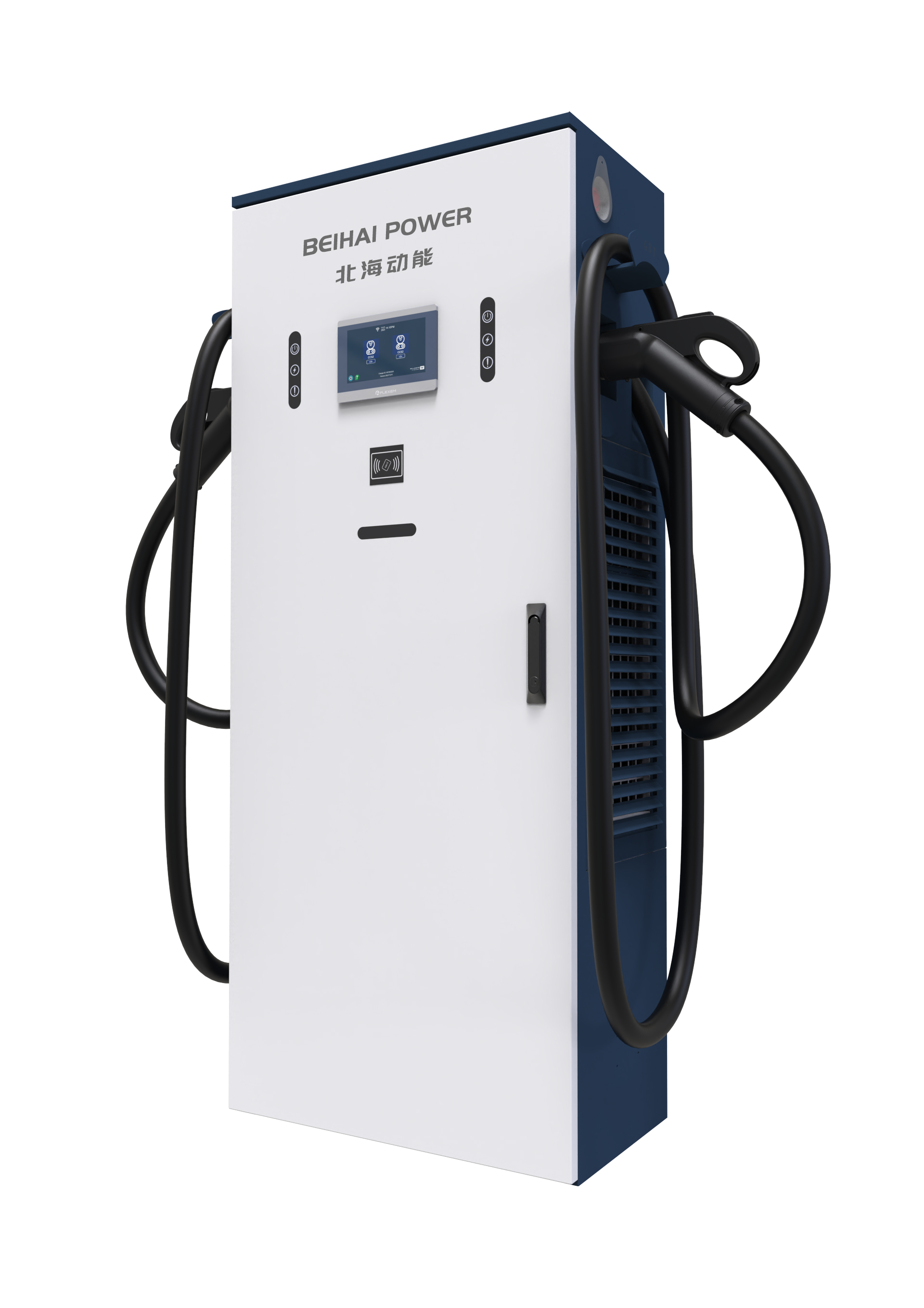

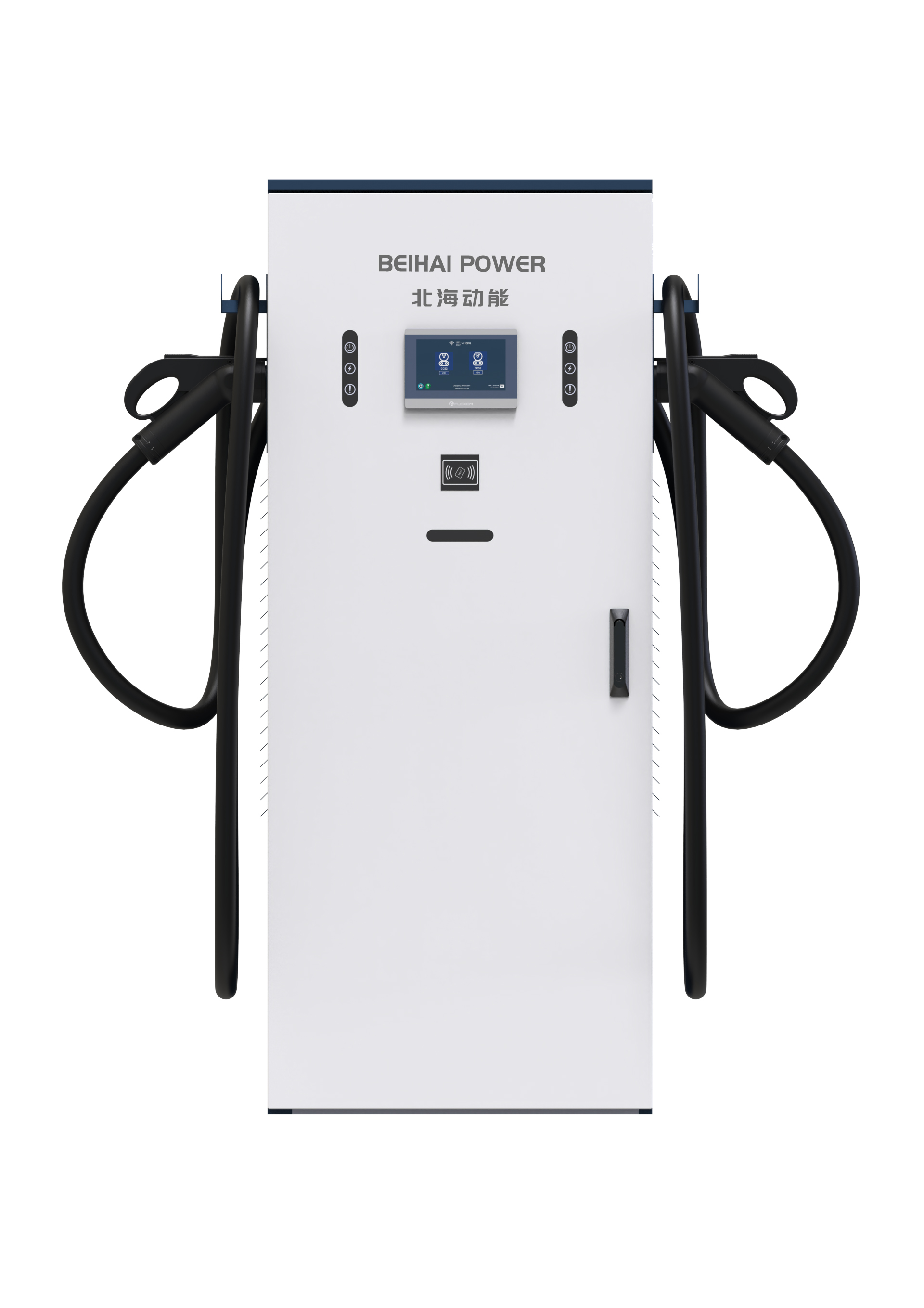

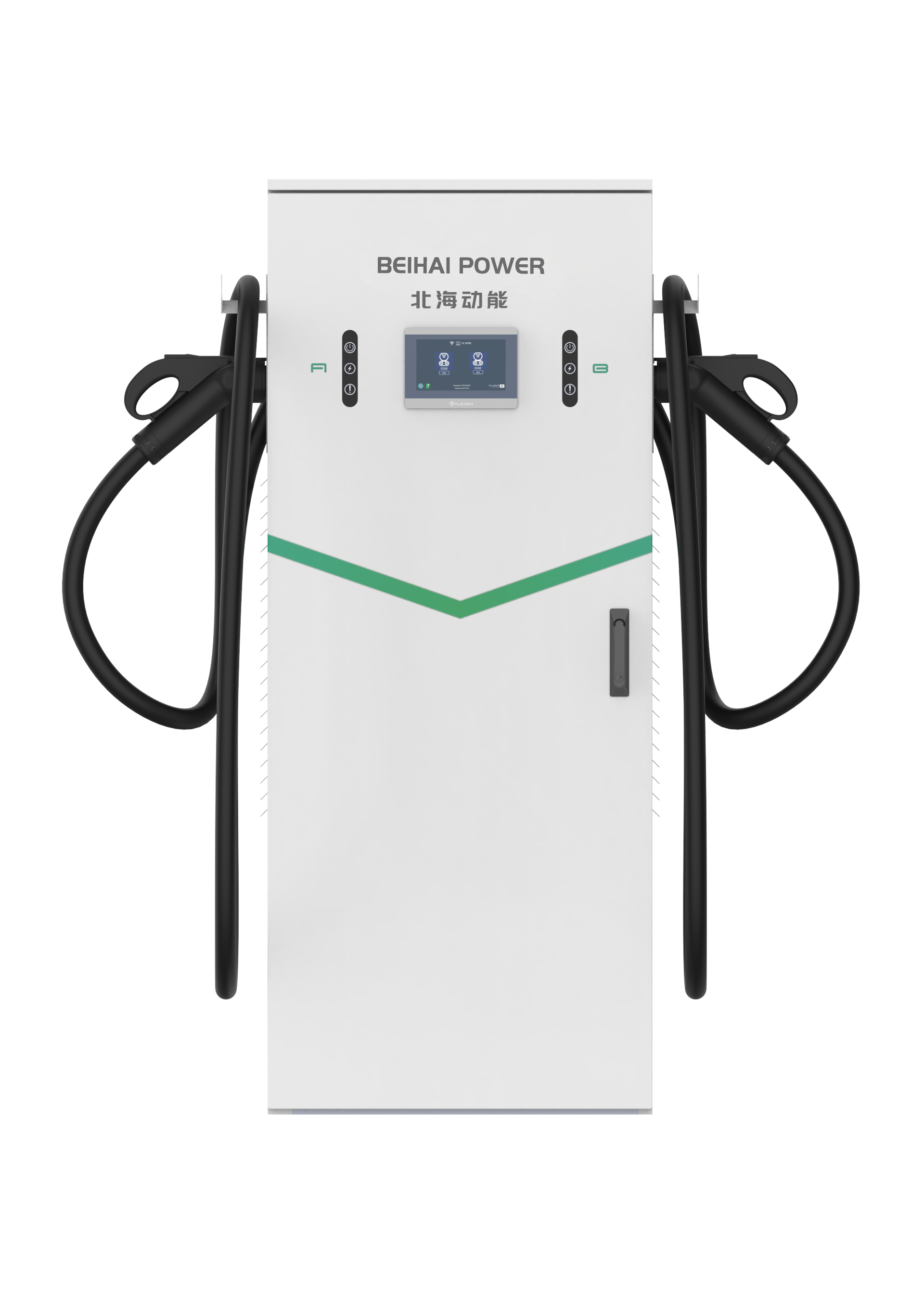

High-Speed Electric Car Charger (120kW) offers a powerful, reliable, and efficient solution for electric vehicle charging. Compatible with CCS1, CCS2, and GB/T plugs, it ensures broad vehicle compatibility. With dual charging plug, it can simultaneously charge two vehicles, reducing wait times and maximizing efficiency, perfect for high-traffic areas. A user-friendly 7-inch touchscreen provides easy operation, while the robust IP54 enclosure ensures durability in various environments. Plus, it features smart charging management, remote monitoring, and maintenance, making it a top choice for public charging stations, commercial spaces, and residential complexes.
Powerful Fast Charging: With a high output of 120kW DC, this charging station provides ultra-fast charging speeds for electric vehicles. It can charge compatible EVs in a fraction of the time compared to standard chargers, ensuring maximum uptime and availability, especially in commercial settings.
Universal Compatibility: The station supports the most widely used charging standards in the world, including CCS1 CCS2 and GB/T, ensuring broad compatibility with a wide range of electric vehicles. The CCS1 CCS2 and GB/T connectors offer flexible charging options for both European and Asian EVs.
Dual Charging Ports: Equipped with dual charging ports, the station allows two vehicles to charge simultaneously, optimizing space and reducing wait times for users.
AC & DC Fast Charging Options: Designed to support both AC and DC charging, this station is highly adaptable to various customer needs. DC fast charging significantly reduces charging times compared to AC chargers, making it ideal for commercial applications where quick turnaround times are crucial.
Reliable and Durable Design: Built to withstand the rigors of high-use environments, the 120kW DC fast charging station features a weatherproof design and robust construction, making it suitable for outdoor installations. It provides consistent, reliable performance in harsh climates or high-traffic areas.
| Category | Specifications | Data Parameters |
| Appearance structure | Dimensions (L x D x H) | 700mm x 400mm x 1700mm |
| Weight | 225kg | |
| Length of charging cable | 5m | |
| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS | |
| Electrical indicators | Input Voltage | 400VAC / 480VAC (3P + N + PE) |
| Input frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC | |
| Output current | 1 to 250A | |
| Rated power | ≤ 240kW | |
| Efficiency | Peak Power ≥ 96% | |
| Power factor | > 0.98 | |
| Communication protocol | OCPP, State Grid Corporation of China, YKC, Xiao ju and other operating platforms. | |
| Functional design | Display | 7’’ LCD with touch screen |
| Access Control | RFID: ISO/IEC 14443A/B || POS machine (Optional) | |
| Communication | WIFI || Ethernet || 3G/4G Modem (Optional) | |
| Power Electronics Cooling | Air Cooled | |
| Work environment | Operating temperature | -30°C to 75°C |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 | |
| Safety design | Safety protection | Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc |
| Emergency Stop | Emergency Stop Button Disables Output Power |
Faster Charging Times: This 120kW DC EV charger solves the pain point of long wait times by providing rapid DC charging, allowing for quicker vehicle turnaround in fleet operations.
High-Volume Use: With the ability to charge two vehicles at once, this unit is perfect for high-demand areas like public EV charging hubs and commercial facilities.
Scalability: Designed to scale with your needs, this charging station is flexible enough to grow from a single unit to a multi-unit setup as EV demand rises.
This EV charging station is an investment in the future of mobility. By adopting the latest CCS2 and CHAdeMO charging technologies, you provide cutting-edge solutions that ensure fast, safe, and efficient charging. Designed for public EV charging stations, electric vehicle fleets, and commercial properties, this electric car charger helps you stay ahead in an ever-evolving market.
Upgrade to the High-Speed 120kW DC EV Charging Station today, and provide your users with an exceptional charging experience that’s fast, efficient, and reliable.
