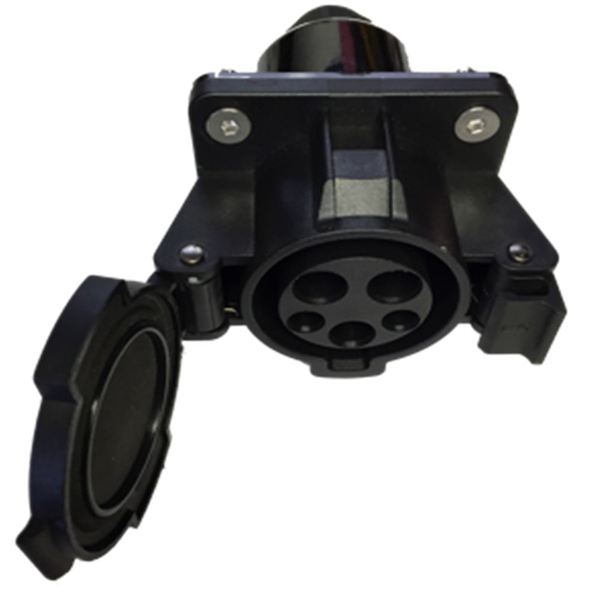

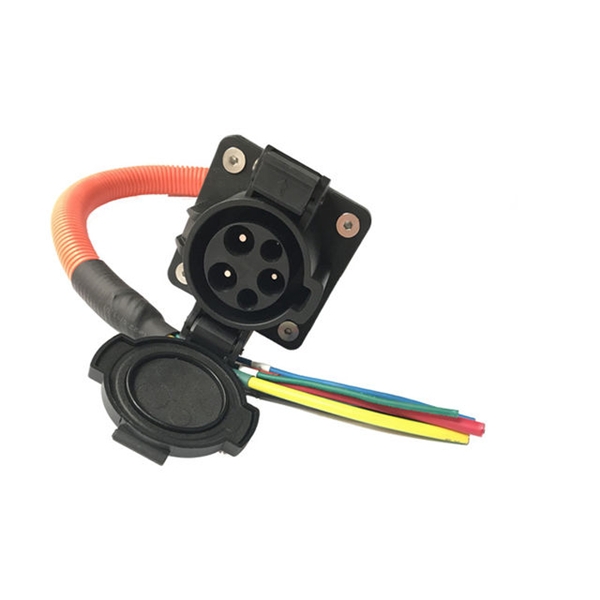

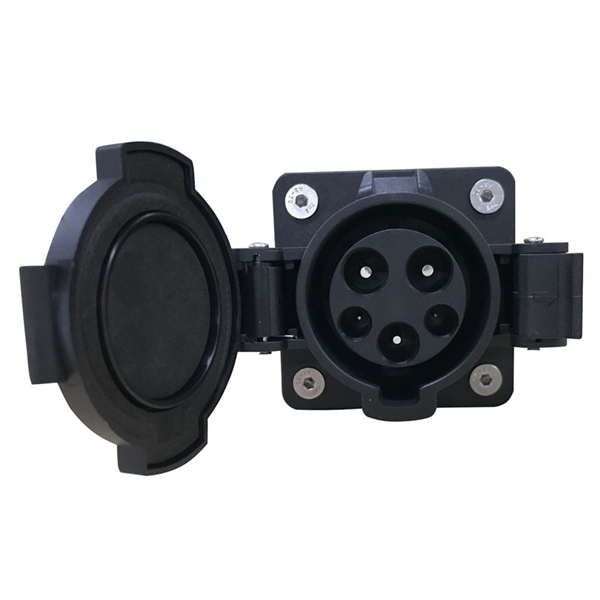

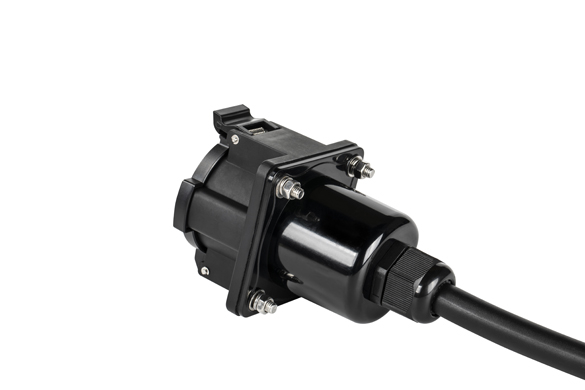

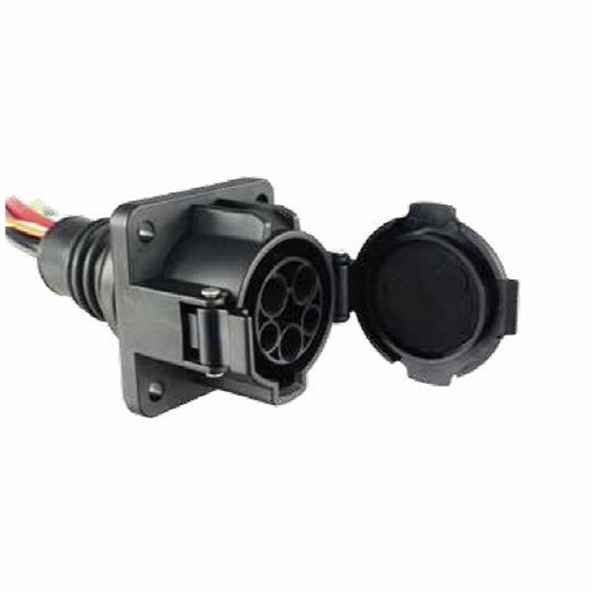

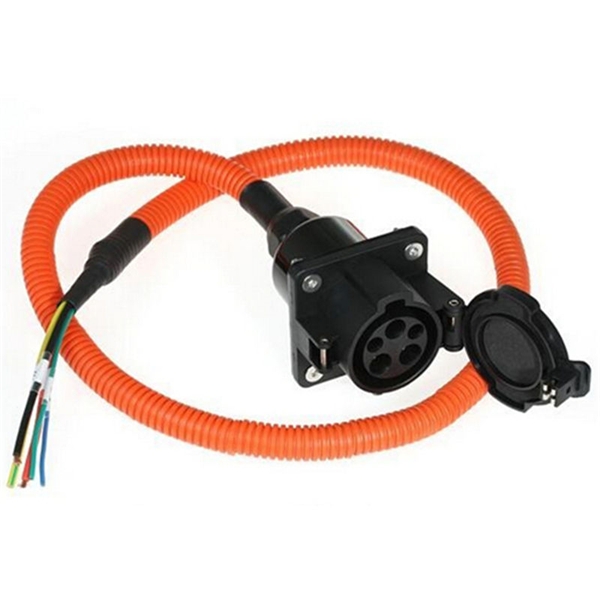

The 16A/32A SAE J1772 Type 1 240V AC Electric Vehicle Charging Socket is designed to provide a stable and efficient charging solution for electric vehicles. Built to meet international SAE J1772 standards, this socket supports both 16A and 32A current options, making it highly adaptable to various electric vehicle models. It is ideal for use in home garages, commercial charging stations, and public charging networks, offering both flexibility and reliability. Whether for individual car owners or businesses running multiple charging stations, this product ensures a smooth, efficient charging experience. Manufactured with high-quality, durable materials, the socket features advanced electrical performance and safety measures, ensuring a safe and reliable charging experience for electric vehicle users. With its IP54-rated protection, it is well-suited for both indoor and outdoor installations and can withstand diverse environmental conditions. Designed to operate effectively in various climates, this socket can deliver consistent and efficient charging, whether in hot summers or freezing winters, addressing the varied needs of electric vehicle owners.
Type 1 Charge Socket Detailed Specifications
| Category |
Technical Parameters |
| Features |
Standard |
Meet SAE J1772-2010 standard |
| Appearance |
Nice appearance, left flip protection, support front installation |
| Reliability |
Reliability of materials, antiflaming, pressure-resistant, abrasion resistance |
| Protection |
Excellent protection performance, protection grade IP44 (working condition) |
| Mechanical |
Mechanical Life |
No-load plug in/pull out > 10000 times |
| Insertion Force |
Coupled insertion force: >45N < 80N |
| Electrical |
Rated Current |
16A / 32A / 40A / 50A |
| Operation Voltage |
110V / 240V |
| Insulation Resistance |
> 1000MΩ (DC500V) |
| Terminal Temp Rise |
< 50K |
| Withstand Voltage |
2500V |
| Contact Resistance |
0.5mΩ Max |
| Materials |
Case Material |
Thermoplastic, flame retardant grade UL94 V-0 |
| Pin Material |
Copper alloy, silver plating |
| Environment |
Operating Temp |
-30°C ~ +50°C |
Model Selection & Wiring Standard
| Model |
Rated Current |
Cable Specification |
Cable Color |
| BH-T1-EVAS-16A |
16A |
3 X 2.5mm² + 2 X 0.5mm² / 3 X 14AWG + 1 X 18AWG |
Orange or Black |
| BH-T1-EVAS-32A |
32A |
3 X 6mm² + 2 X 0.5mm² / 3 X 10AWG + 1 X 18AWG |
| BH-T1-EVAS-40A |
40A |
2X8AWG + 1X10AWG + 1X16AWG |
| BH-T1-EVAS-50A |
50A |
2X8AWG + 1X10AWG + 1X16AWG |
Product Key Features
🔌
High Compatibility
Fully compliant with SAE J1772 Type 1 standards, compatible with most electric vehicles including Tesla (with adapter), Nissan Leaf, and Chevrolet Bolt.
⚡
Flexible Current Options
Offers 16A, 32A, 40A, and 50A choices, enabling personalized charging solutions based on varying needs.
🛡️
Safety & Reliability
Equipped with overload protection, short-circuit protection, and IP54 water/dust resistance for a safe charging process.
🏗️
Durable Design
Made from UL94 V-0 flame-retardant plastics and silver-plated copper alloy contacts for heat and corrosion resistance.
Applications
- Home Charging: Perfect for residential garages, offering EV owners a convenient and reliable charging solution at home.
- Commercial Charging: Ideal for shopping malls, parking lots, and hotels for customer vehicle charging.
- Public Charging Stations: A key component in public charging networks for long-distance travel support.
- Fleet Charging: Suitable for corporate fleets or shared car systems requiring centralized management.
This charging socket is an essential component in electric vehicle charging solutions, widely used in home, commercial, public, and fleet applications. It provides efficient, eco-friendly, and safe charging services, playing a critical role in the global development of electric vehicle charging networks.
Frequently Asked Questions (FAQ)
What standard does this EV charging socket follow?
This socket is fully compliant with the international SAE J1772-2010 (Type 1) standard, ensuring compatibility with a wide range of electric vehicles.
What are the available current ratings for this product?
We offer multiple current options including 16A, 32A, 40A, and 50A to suit different charging speed requirements and vehicle specifications.
Can this socket be installed outdoors?
Yes, the socket features an IP54 protection rating (and IP44 in working condition), making it resistant to dust and water splashes, suitable for both indoor and outdoor environments.
What materials are used for the contact pins?
The pins are made of high-quality copper alloy with silver plating to ensure excellent conductivity and durability over 10,000 plug-in cycles.
Is the socket flame retardant?
Absolutely. The case material is made of high-strength thermoplastic with a flame retardant grade of UL94 V-0 for maximum safety.
What is the operating temperature range?
The socket is designed to perform reliably in extreme climates, with an operating temperature range of -30°C to +50°C.
