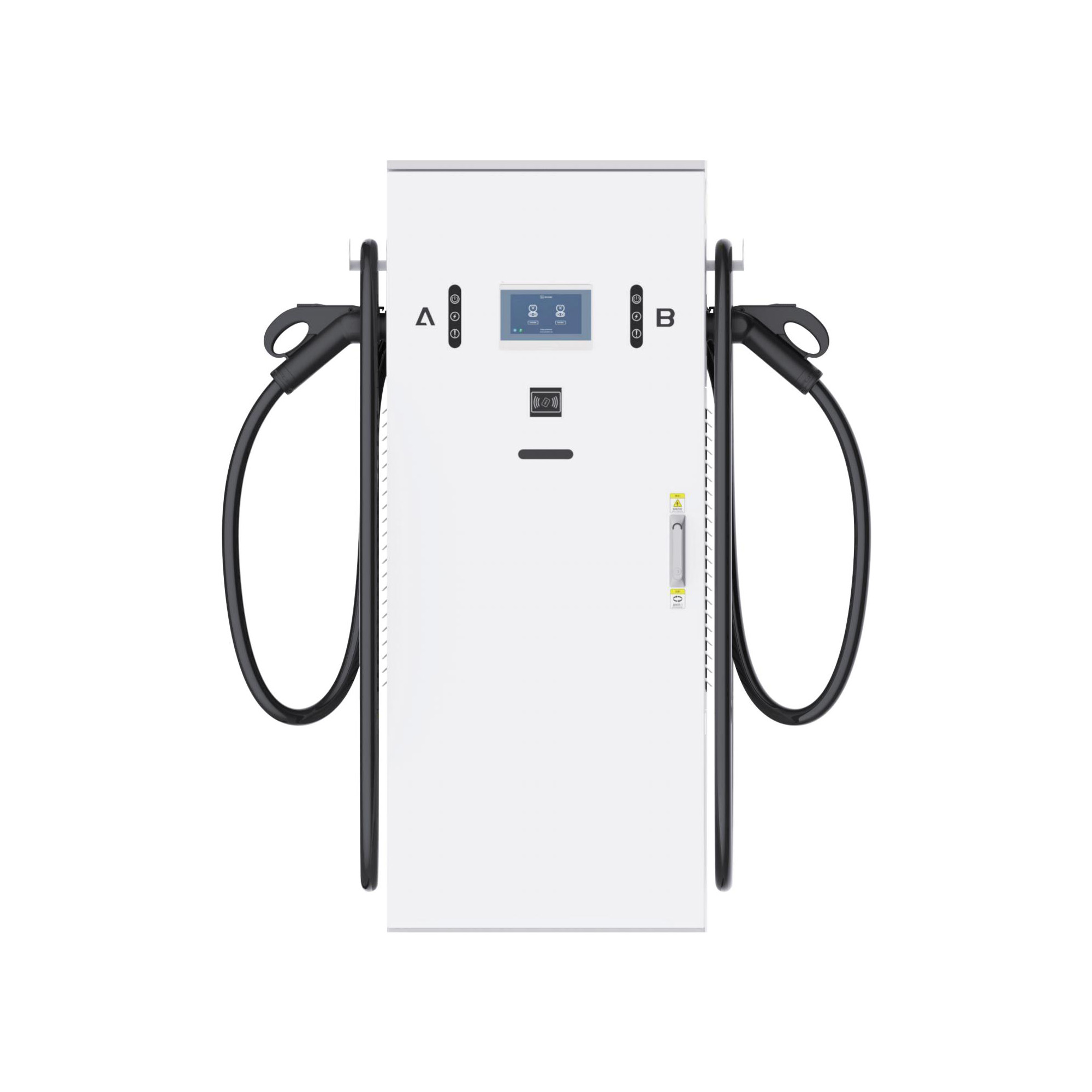

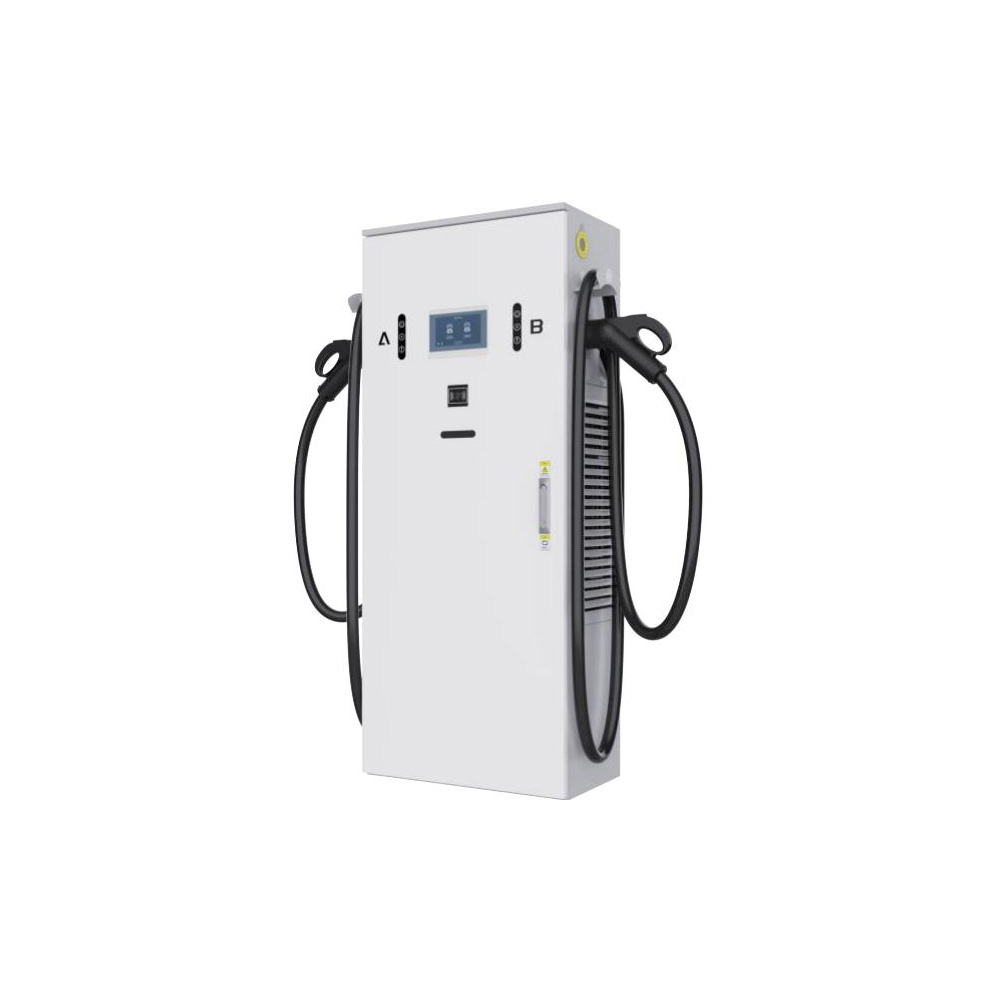

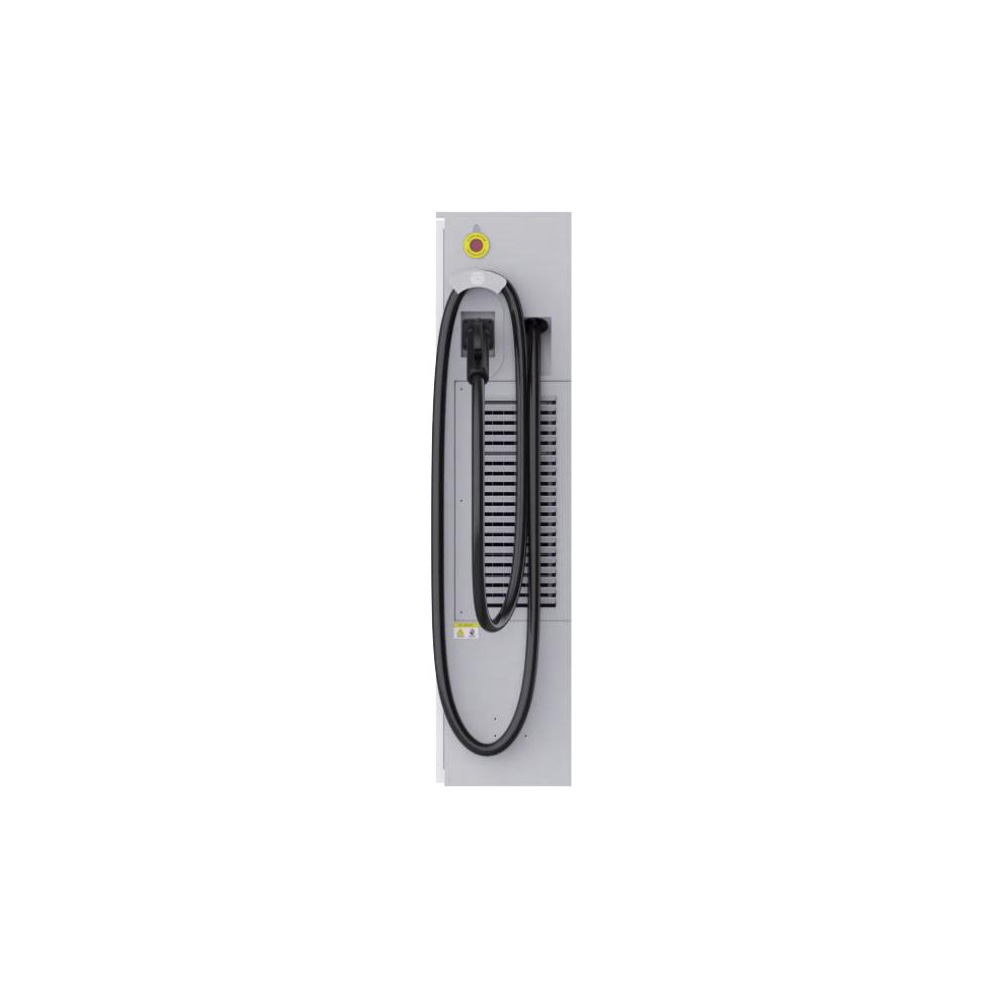

This 120kw series charging station boasts fast charging speed and supports dual-gun charging, enabling quick charging for vehicles with high power and large battery capacity.
Equipped with an advanced control system and communication module for intelligent scheduling and fault diagnosis.
Offers remote monitoring and connectivity with major mainstream charging station management platforms.
Monitor real-time operational status and perform remote maintenance and upgrades via the cloud platform.
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance Structure | Dimensions (L x D x H) | 700mm x 400mm x 1700mm |
| Weight | 200kg | |
| Length of charging cable | 5m | |
| Electrical Indicators | Connectors | CCS1 || CCS2 || CHAdeMO || GBT |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) | |
| Input frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC | |
| Output current | 0 to 400A | |
| Rated power | 120kW | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | 0.98 | |
| Communication protocol | OCPP 1.6J | |
| Functional Design | Display | 7’’ LCD with touch screen |
| RFID system | ISO/IEC 14443A/B | |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet – Standard || 3G/4G || Wifi | |
| Work Environment | Power Electronics Cooling | Air Cooled |
| Operating temperature | -30 °C to 55 °C | |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 | |
| Safety Design | Safety standard | GB/T, CCS2, CCS1, CHAdeMo, NACS |
| Safety protection | Overvoltage, lightning, overcurrent, leakage, waterproof protection, etc. | |
| Emergency Stop | Emergency Stop Button Disables Output Power |
