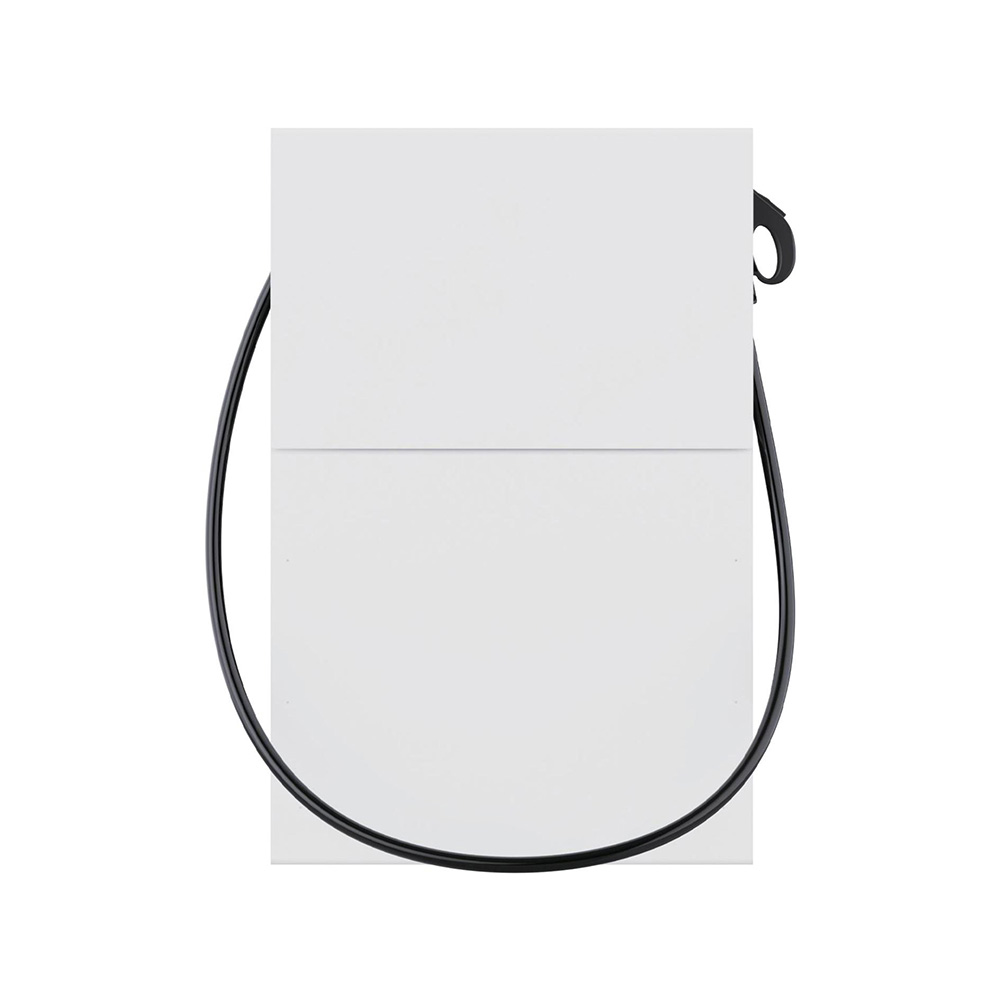

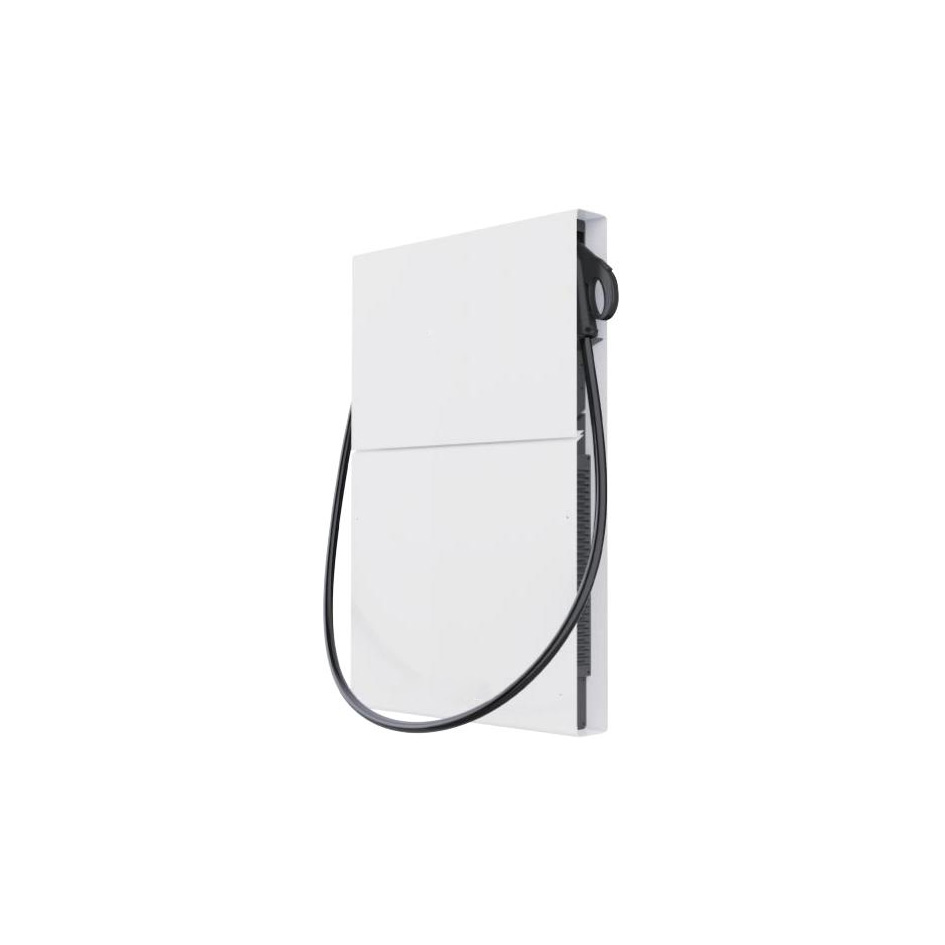

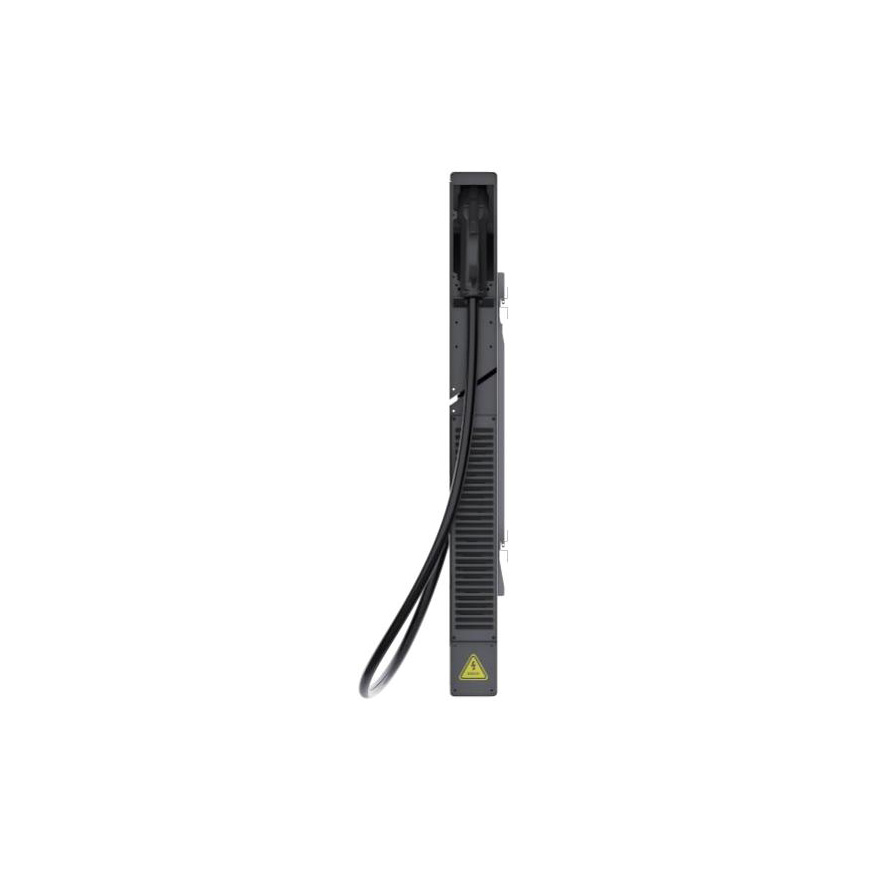

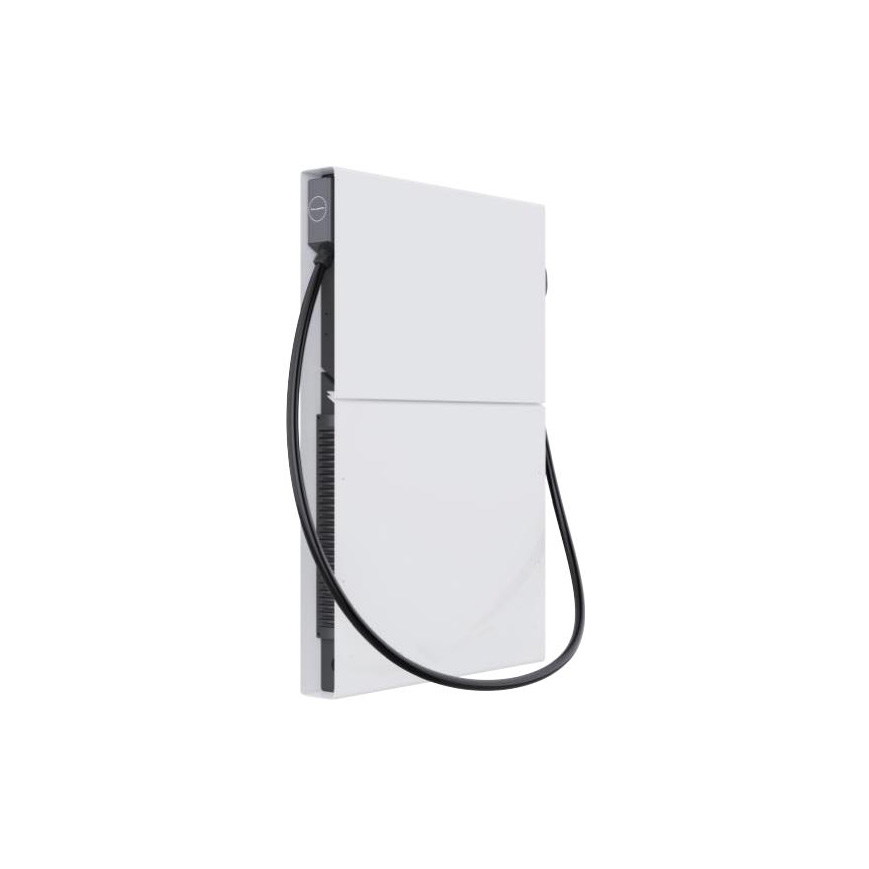

This is a small wall mounted DC ev charger, simple and elegant, without any complicated details. The operation is very simple and suitable for use by all groups of people. 40kw and 60kw are optional for the module.
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance structure | Dimensions (L x D x H) | 850mm x 120mm x 1300mm |
| Weight | 90kg | |
| Length of charging cable | 3.5m | |
| Connectors | CCS1 / CCS2 / CHAdeMO / GBT Single gun | |
| Electrical indicators | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Input frequency | 50/60Hz | |
| Output Voltage | 200 - 750VDC | |
| Output current | CCS1- 120A / CCS2 - 120A / CHAdeMO - 120A / GBT- 120A | |
| Rated power | 40KW - 60kW | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | >0.98 | |
| Communication protocol | OCPP 1.6J | |
| Functional design | Display | No |
| RFID system | ISO/IEC 14443A/B | |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet - Standard || 3G/4G Modem (Optional) | |
| Power Electronics Cooling | Air Cooled | |
| Work environment | Operating temperature | -30°C to 75°C |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP30 | |
| Safety design | Safety standard | GB/T, CCS2, CCS1, CHAdeMo, NACS |
| Safety protection | Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc |
