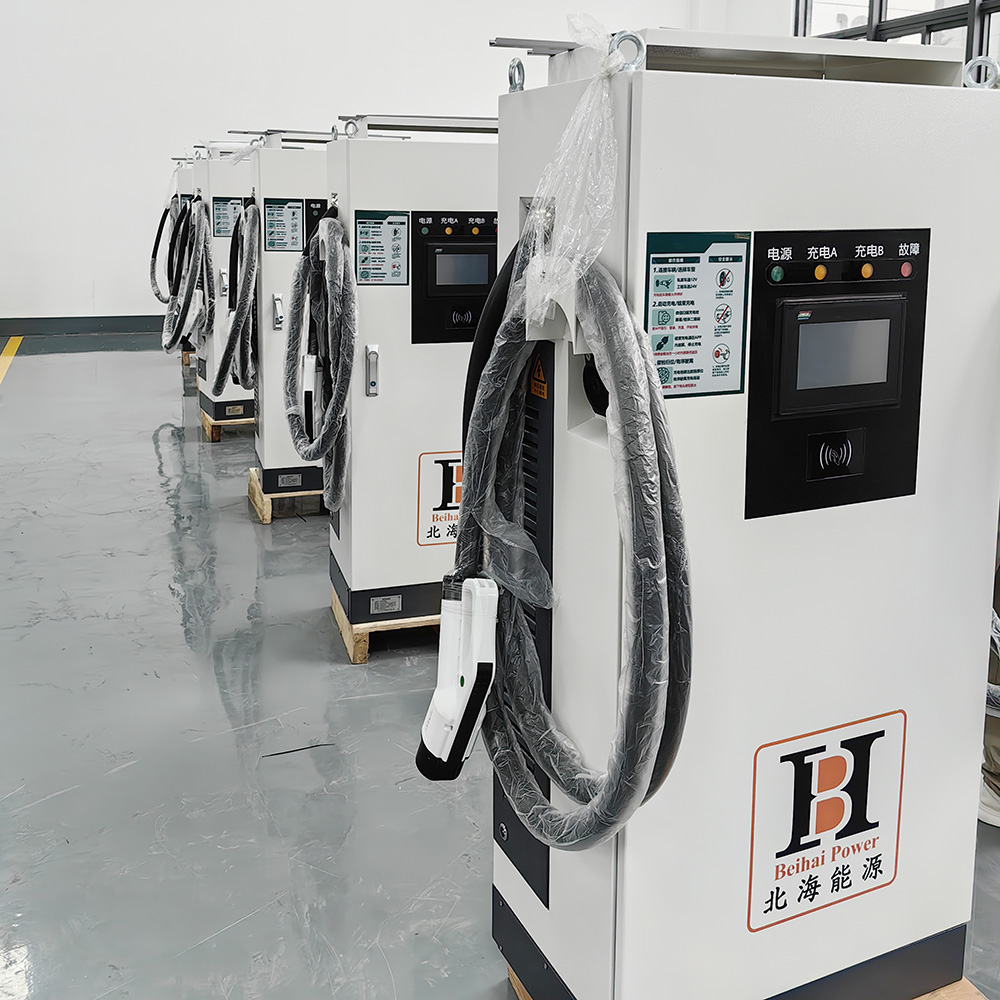

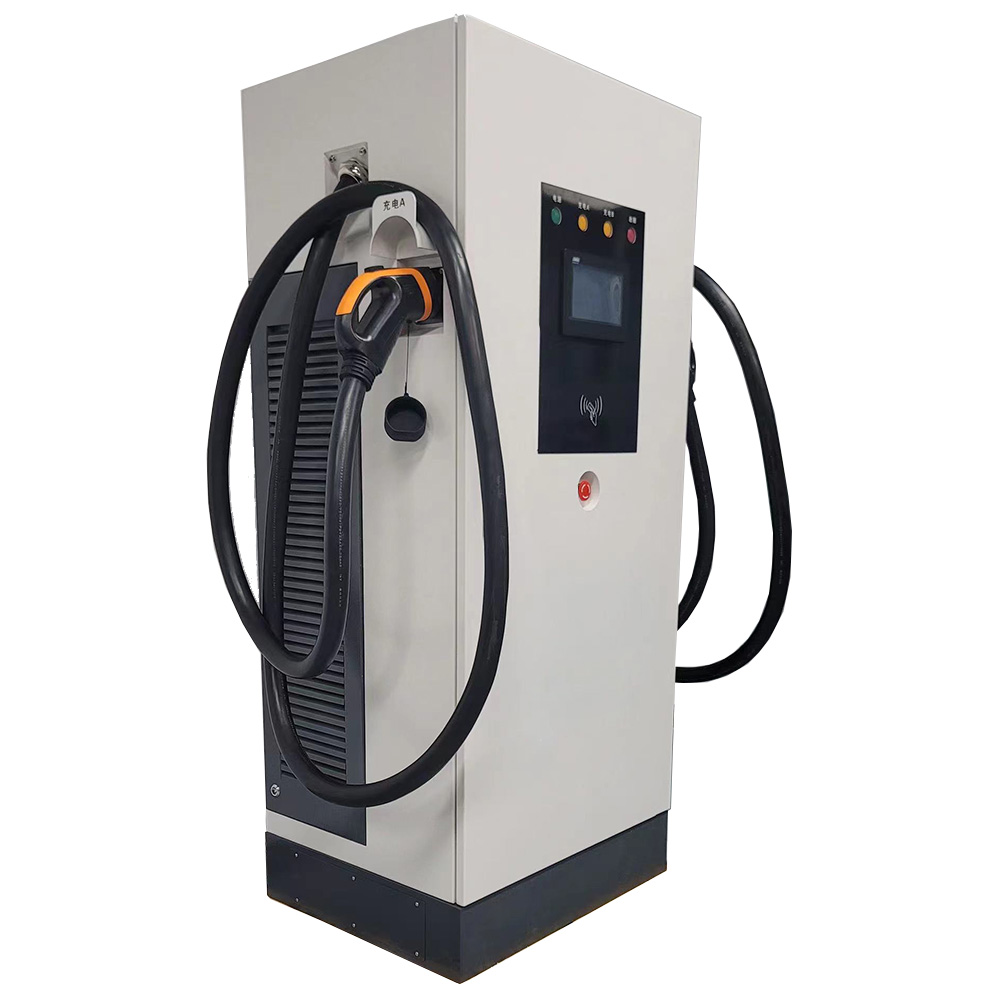

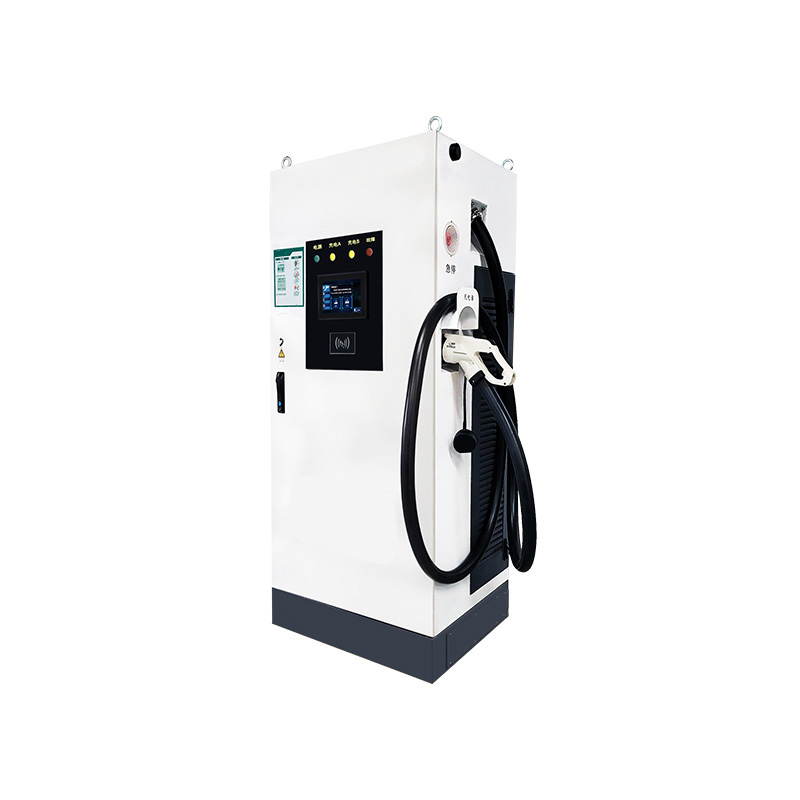

DC charging pile is a kind of charging equipment specially designed to provide DC power supply for electric vehicles. DC charging pile can convert AC power into DC power and directly charge the power battery of electric vehicles, which has higher charging power and larger voltage and current adjustment range. It can realise rapid charging and provide electric vehicles with fast replenishment of electric power. During the charging process, the DC charging pile can utilise the electric energy more efficiently and reduce the energy loss, and is applicable to various models and brands of electric vehicles with wider compatibility.
DC charging piles can be classified in different dimensions, such as power size, number of charging guns, structural form, and installation method. Mainstream classifications include integrated DC charging piles and split DC charging piles; single gun and double gun charging piles; and floor-standing or wall-mounted types.
| DC EV Charger Specifications | |||
| Equipment Models | BHDC-180KW-2 | ||
| Technical Parameters | |||
| AC Input | Voltage range (V) | 380±15% | |
| Frequency range (Hz) | 45~66 | ||
| Input power factor | ≥0.99 | ||
| Fluoro wave (THDI) | ≤5% | ||
| DC Output | Workpiece ratio | ≥96% | |
| Output Voltage Range (V) | 200~750 | ||
| Output power (KW) | 180KW | ||
| Maximum Output Current (A) | 360A | ||
| Charging interface | 2 | ||
| Charging gun length (m) | 5m | ||
| Operation & Display | Voice (dB) | <65 | |
| Stabilized Precision | Voltage ≤±0.5% / Current <±1% | ||
| Machine Display | 7 inch color touch screen | ||
| Charging Operation | Swipe or Scan | ||
| Metering | DC watt-hour meter | ||
| Communication | Ethernet (Standard Protocol) | ||
| Heat Dissipation | Air cooling | ||
| Size (W*D*H) mm | 990*750*1800 | ||
DC charging piles are widely used in public charging stations, highway service areas, commercial centers, and more.
