"Efficient, Compact, and Versatile: The 7KW Wall Mounted DC Fast Charger for Homes and Businesses"
As electric vehicles (EVs) become increasingly popular, the demand for efficient and reliable DC EV chargers has never been higher. To meet this growing need, we proudly introduce our 7KW Wall Mounted DC Fast Charging Station, designed to deliver fast, efficient, and hassle-free charging for electric vehicles. This compact, factory-direct charger is perfect for both residential and commercial use, offering versatility and advanced features that make it a top choice for businesses, homeowners, and public charging stations alike.

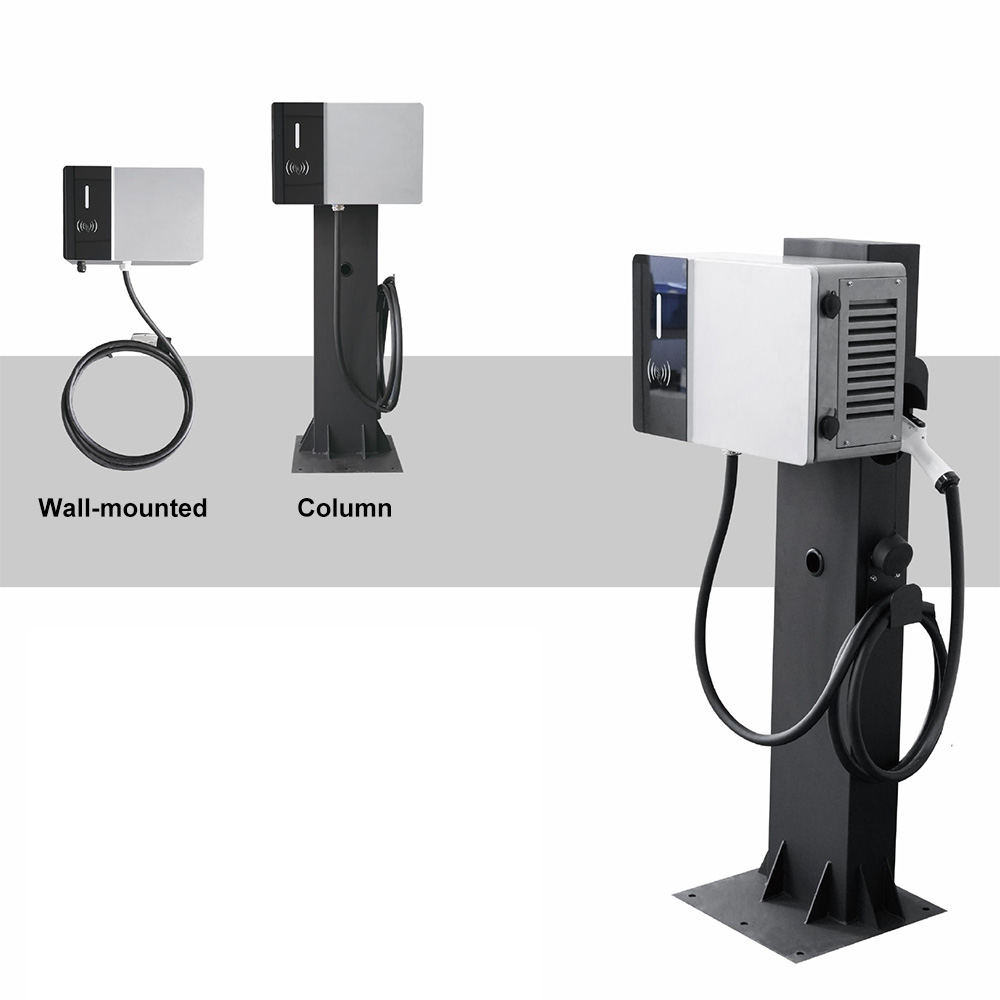

| 7KW Wall-mounted / Column DC Charger | |
|---|---|
| Equipment Parameters | |
| Item No. | BHDC-7KW-1 |
| Standard | GB/T / CCS1 / CCS2 |
| Input Voltage Range (V) | 220±15% |
| Frequency Range (HZ) | 50/60±10% |
| Power Factor | ≥0.99 |
| Current Harmonics (THDI) | ≤5% |
| Efficiency | ≥96% |
| Output Voltage Range (V) | 200-1000V |
| Voltage Range of Constant Power (V) | 300-1000V |
| Output Power (KW) | 7kw |
| Maximum Output Current (A) | 20A |
| Charging Interface | 1 |
| Length of Charging Cable (m) | 5m (can be customized) |
| Other Information | |
|---|---|
| Steady Current Accuracy | ≤±1% |
| Steady Voltage Accuracy | ≤±0.5% |
| Output Current Tolerance | ≤±1% |
| Output Voltage Tolerance | ≤±0.5% |
| Current Imbalance | ≤±0.5% |
| Communication Method | OCPP |
| Heat Dissipation Method | Forced Air Cooling |
| Protection Level | IP55 |
| BMS Auxiliary Power Supply | 12V |
| Reliability (MTBF) | 30000 |
| Dimension (W*D*H)mm | 500*215*330 (wall-mounted) / 500*215*1300 (Column) |
| Input Cable | Down |
| Working Temperature (℃) | -20 ～ +50 |
| Storage Temperature (℃) | -20 ～ +70 |
| Option | Swipe card, scan code, operation platform |
