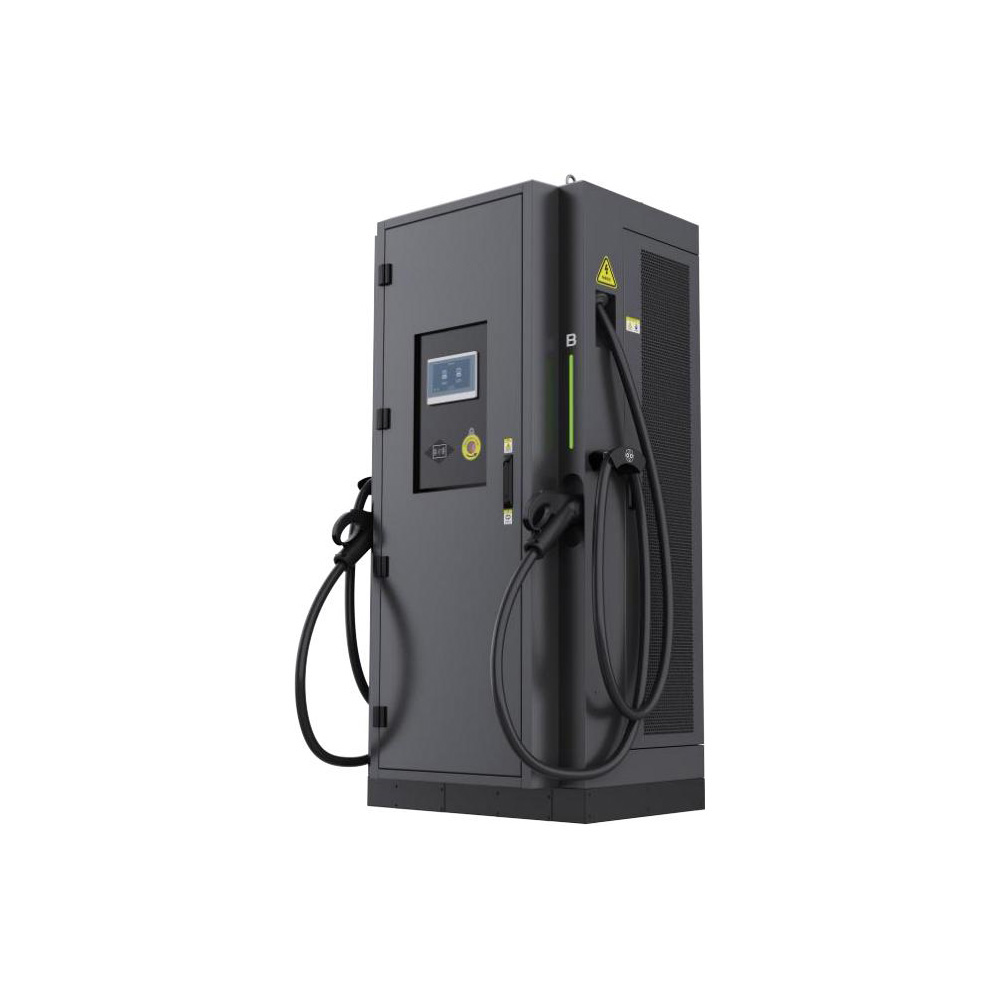

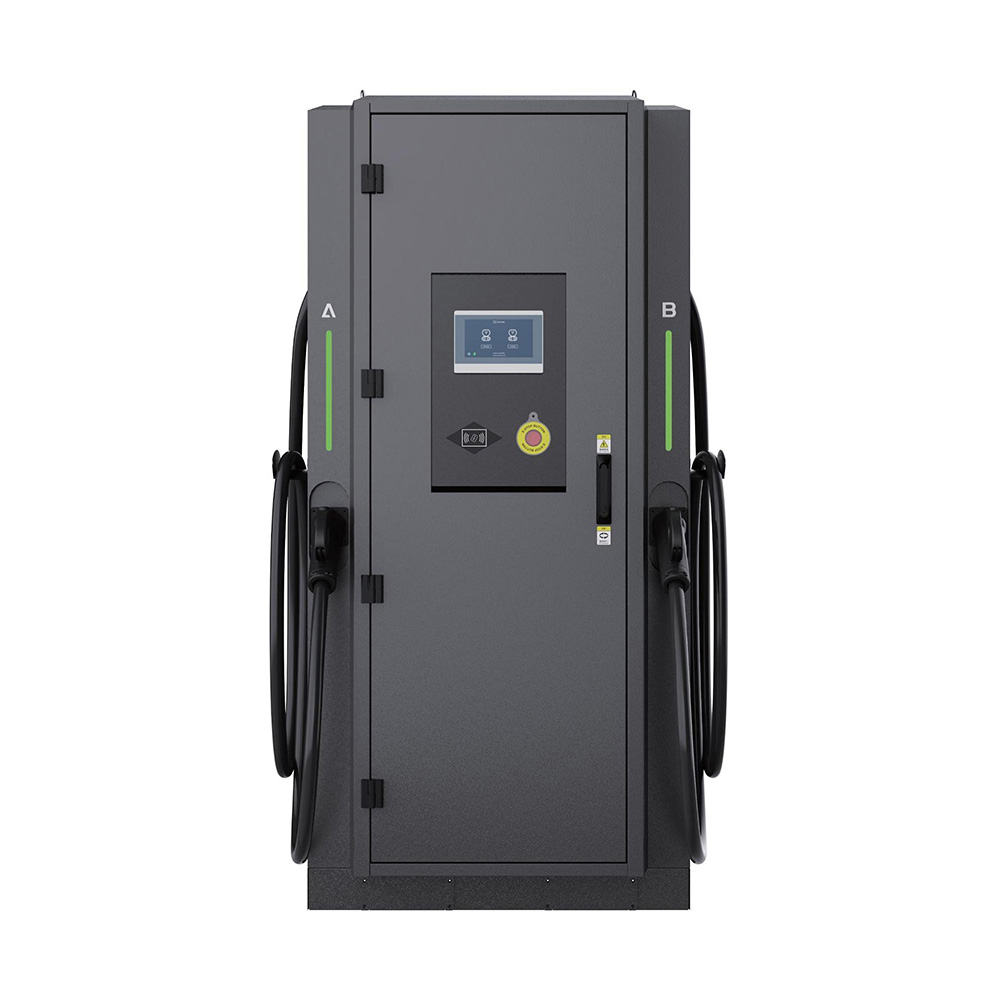

This series of DC charging piles boasts a rugged design and can be scaled up to 320kW (liquid cooled DC electric car charging pile 400KW). The charging piles feature fast charging speeds and support dual-gun charging, enabling quick charging for high-power, large-battery-capacity vehicles. The product is equipped with an advanced control system and communication module, supporting functions such as intelligent scheduling, remote monitoring, and fault diagnosis.
It supports connectivity with major mainstream charging pile management platforms. Through connection to the cloud platform, operators can monitor the real-time operating status of the charging piles and perform remote maintenance and upgrades.
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance Structure | Dimensions (L x D x H) | 900mm x 700mm x 1900mm |
| Weight | 400kg | |
| Length of charging cable | 5m | |
| Connectors | CCS1 || CCS2 || CHAdeMO || GBT || NACS | |
| Electrical Indicators | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC (Constant power: 300 - 1000VDC) | |
| Output current (Air Cooled) | CCS1–200A || CCS2–200A || CHAdeMO–150A || GBT-250A || NACS–200A | |
| Output current (Liquid Cooled) | CCS2–500A || GBT-800A || GBT-600A || GBT-400A | |
| Rated Power | 240-400kW | |
| Efficiency | ≥94% at nominal output power | |
| Functional Design | Display & System | 7’’ LCD touch screen with RFID (ISO/IEC 14443A/B) |
| Communication | Ethernet, 3G/4G, Wifi (OCPP 1.6J) | |
| Cooling Method | Air Cooled || Liquid Cooled | |
| Environment & Safety | Operating Temp | -30°C to 55°C |
| Ingress Protection | IP54 || IK10 | |
| Safety Protection | Overvoltage, lightning, overcurrent, leakage, waterproof, Emergency Stop |
