≥94% efficiency at nominal output power with a 0.98 power factor.
Includes overvoltage, lightning, leakage, and waterproof protection.
7’’ LCD touch screen with RFID system and OCPP 1.6J support.
| Category | Specifications | Data Parameters |
|---|---|---|

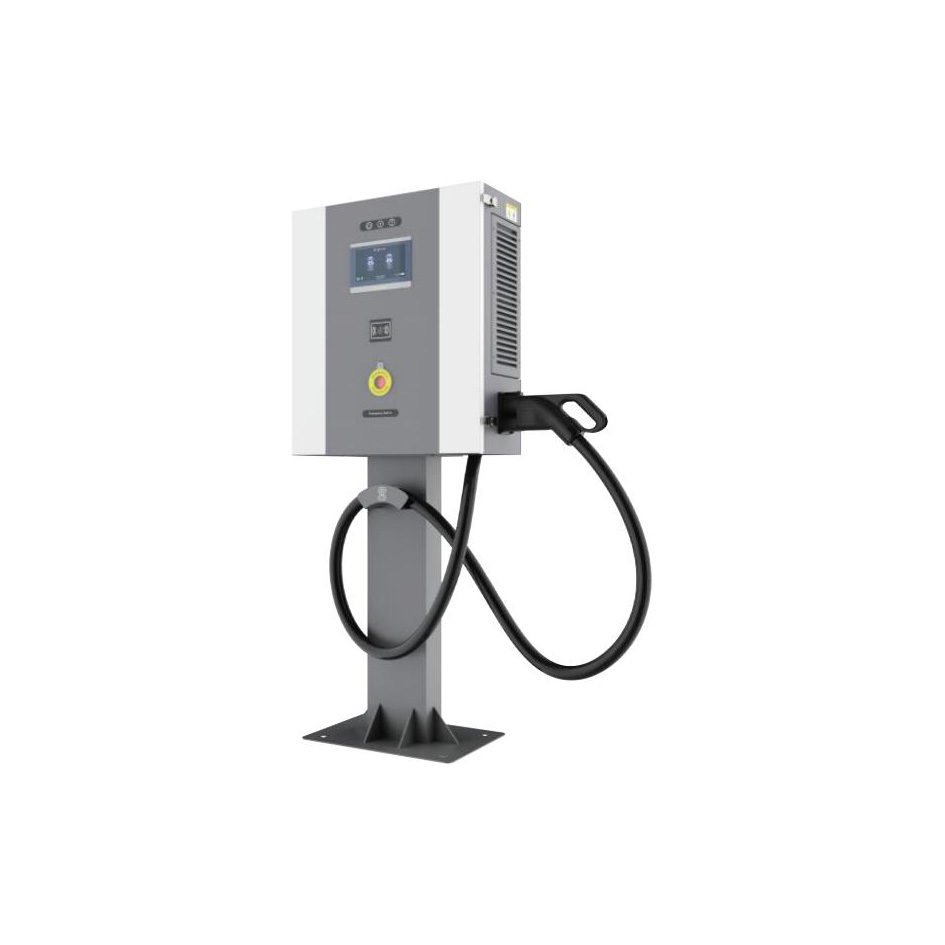

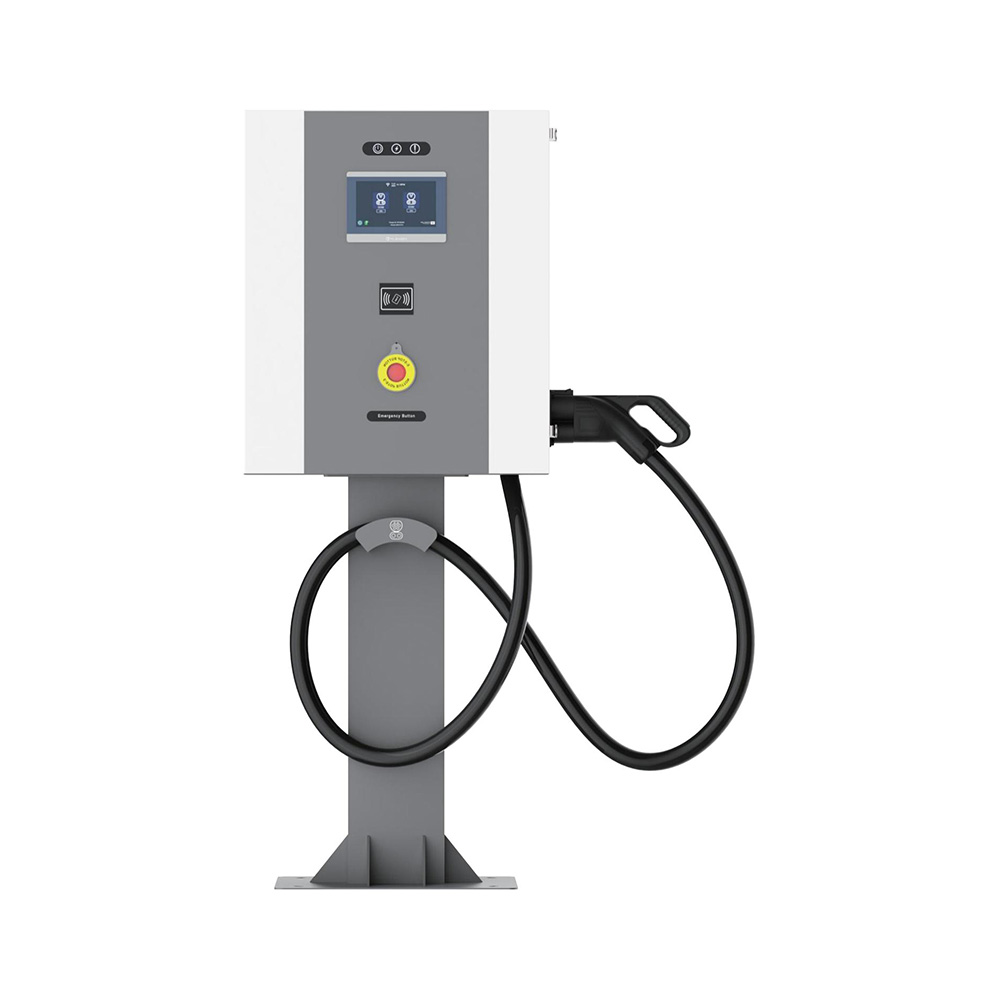

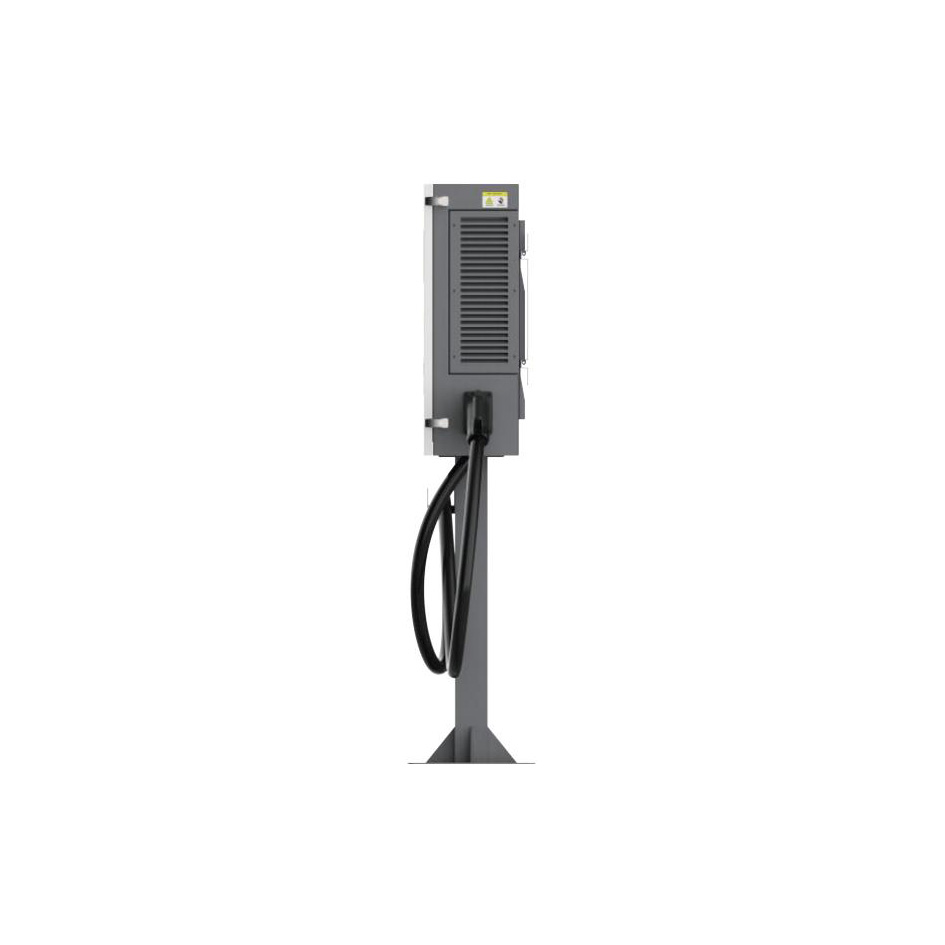

| Appearance Structure | Dimensions (L x D x H) | Pillar: 630mm x 260mm x 1600mm / Wall: 630mm x 260mm x 750mm |
| Weight | 100kg | |
| Length of charging cable | 5m | |
| Electrical Indicators | Connectors | CCS1 || CCS2 || CHAdeMO || GBT Single gun |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) | |
| Input frequency | 50/60Hz | |
| Output Voltage | 200 - 1000VDC | |
| Output current | CCS1–100A || CCS2–100A || CHAdeMO–100A || GBT- 100A | |
| Rated power | 20, 30, 40kW Series DC EV Charger | |
| Efficiency | ≥94% at nominal output power | |
| Power factor | 0.98 | |
| Communication protocol | OCPP 1.6J | |
| Functional Design | Display | 7’’ LCD with touch screen |
| RFID system | ISO/IEC 14443A/B | |
| Access Control | RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional) | |
| Communication | Ethernet – Standard || 3G/4G || Wifi | |
| Work Environment | Power Electronics Cooling | Air Cooled |
| Operating temperature | -30 °C to 55 °C | |
| Working || Storage Humidity | ≤ 95% RH || ≤ 99% RH (Non-condensing) | |
| Altitude | < 2000m | |
| Ingress Protection | IP54 || IK10 | |
| Safety Design | Safety standard | GB/T, CCS2, CCS1, CHAdeMo, NACS |
| Safety protection | Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc | |
| Emergency Stop | Emergency Stop Button Disables Output Power |
