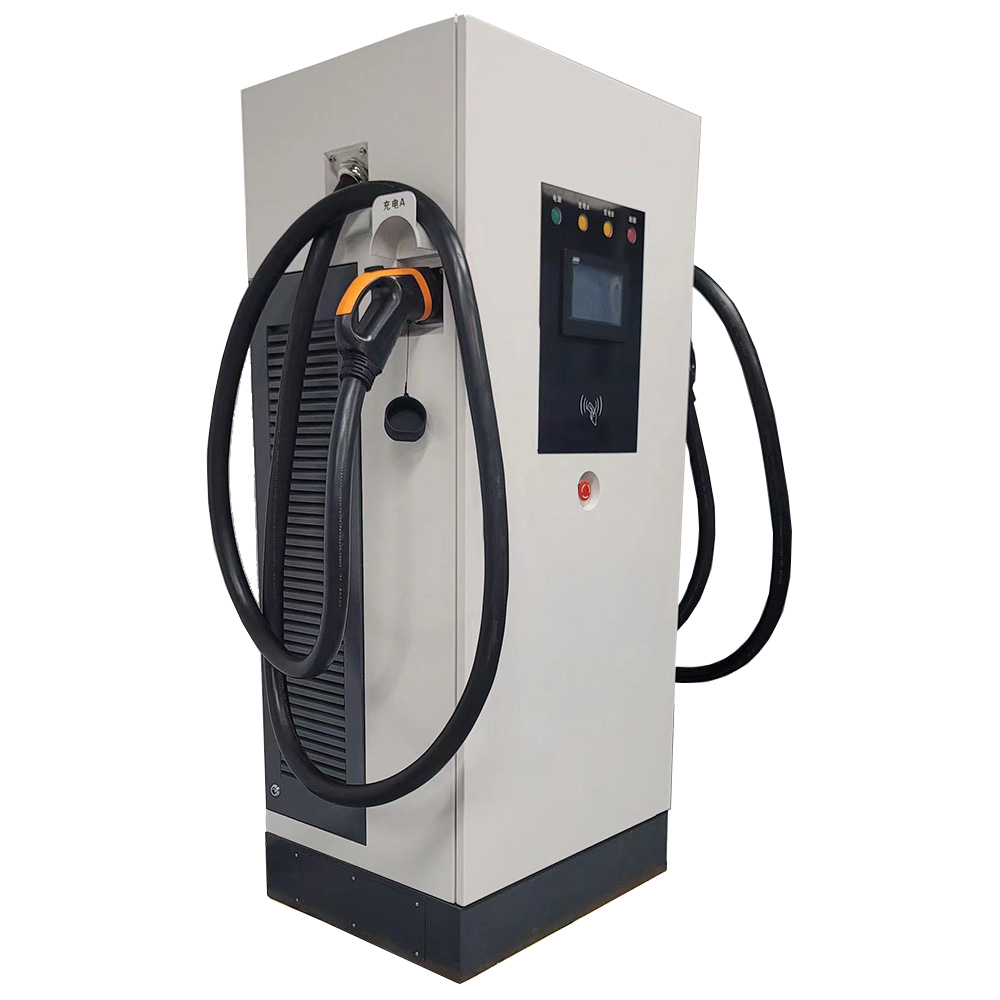

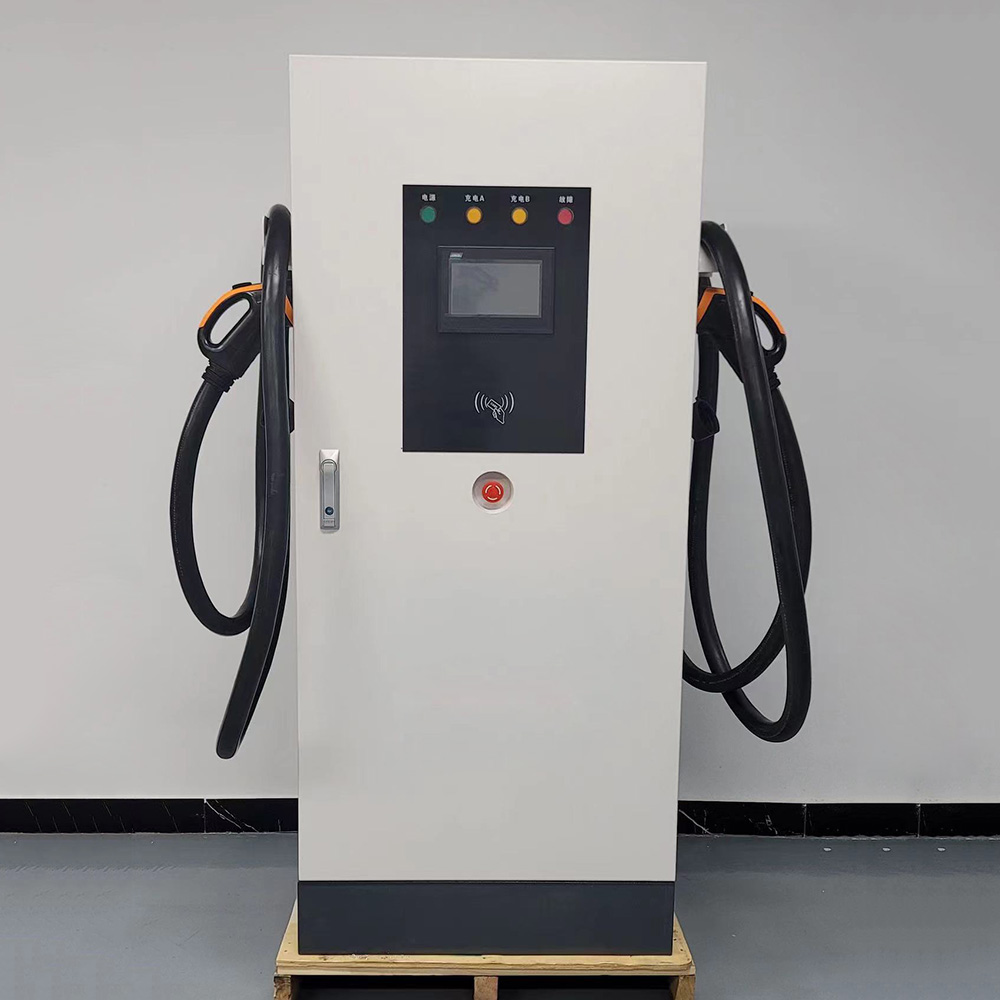

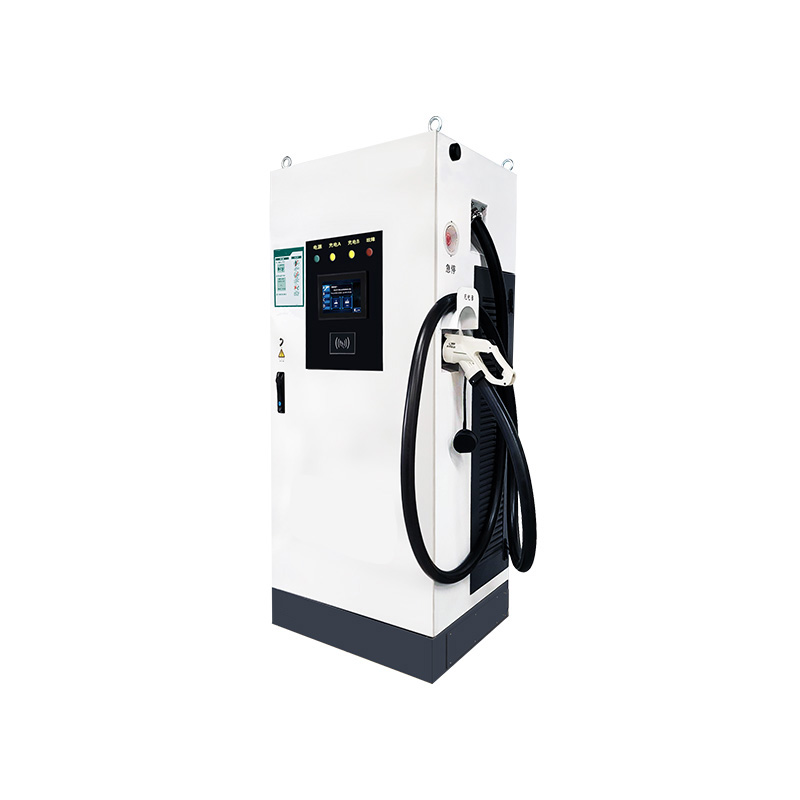

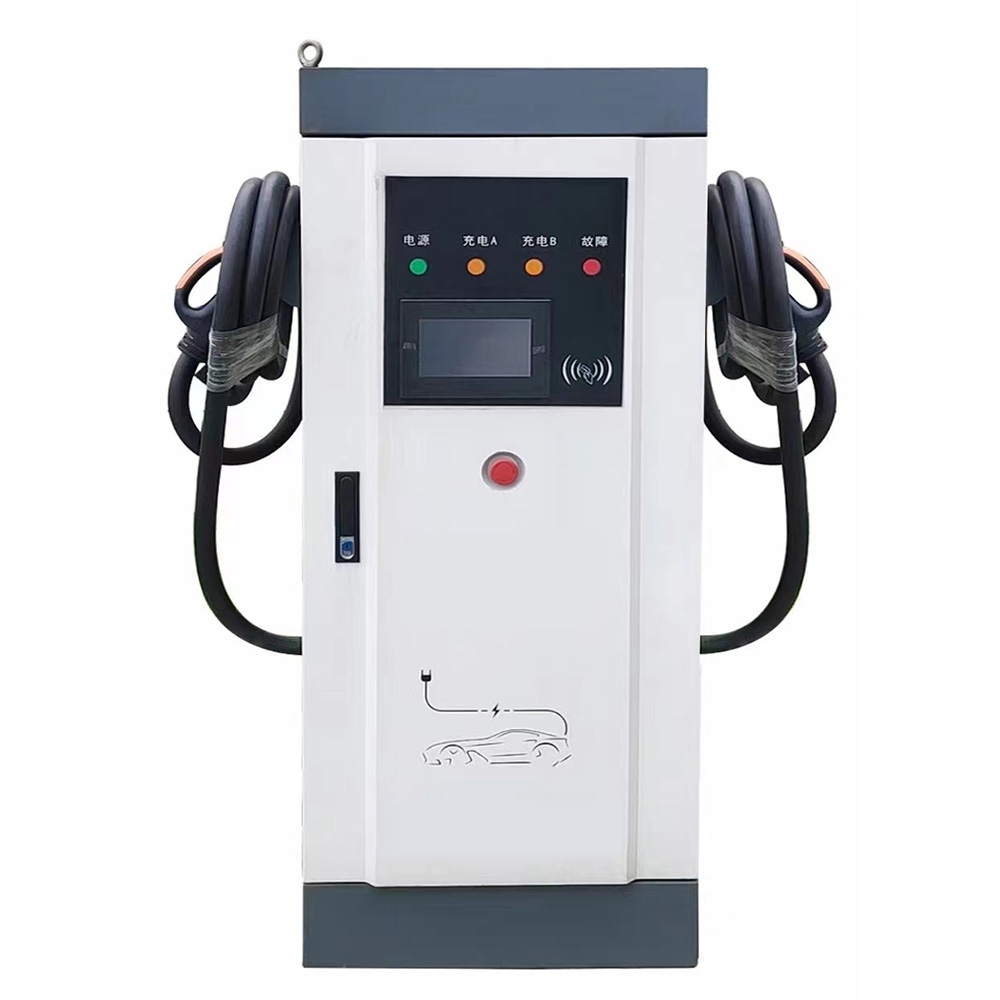

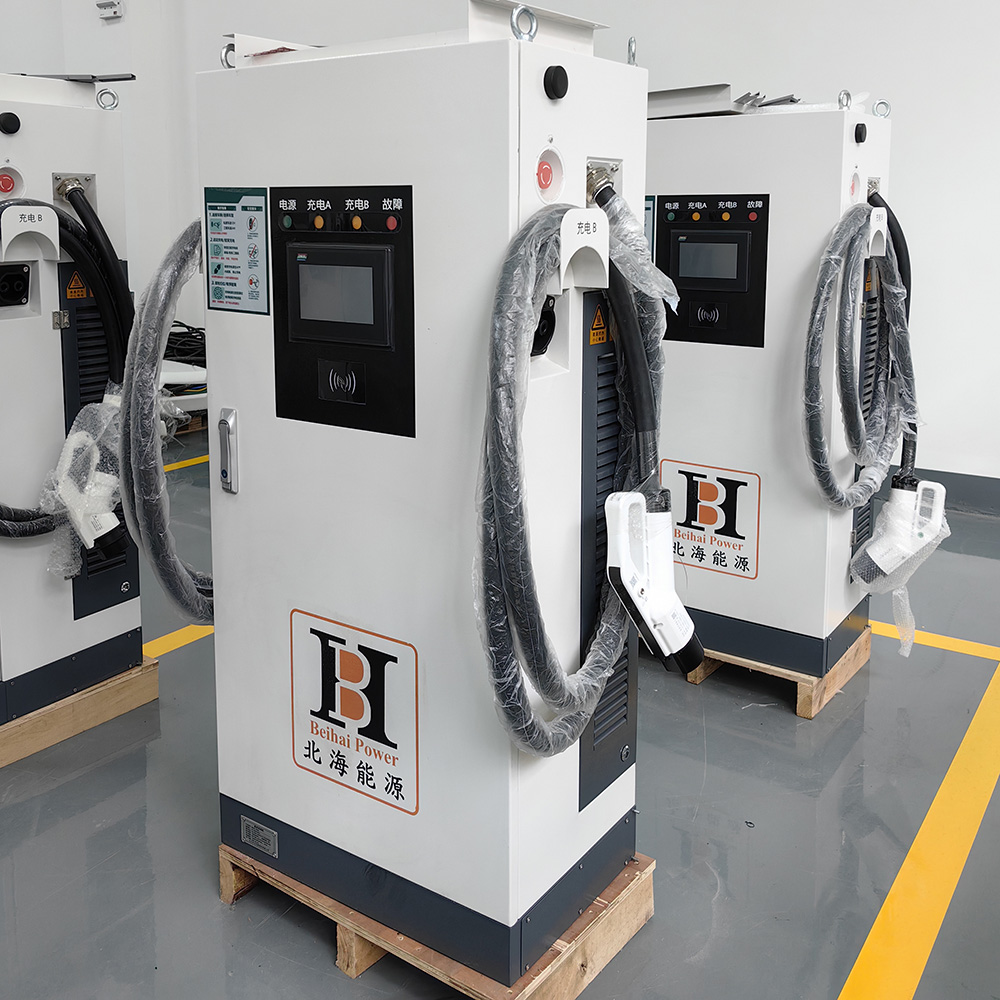

Product Description
DC charging pile is a kind of charging equipment specially designed to provide DC power supply for electric vehicles. It can convert AC power into DC power and directly charge the power battery of electric vehicles, which has higher charging power and larger voltage and current adjustment range. This allows for rapid charging and provides electric vehicles with fast replenishment of electric power. During the charging process, the DC charging pile can utilize the electric energy more efficiently and reduce energy loss, offering wider compatibility across various models and brands.
DC charging piles can be classified by power size, number of charging guns, structural form, and installation method. Mainstream classifications include integrated vs. split DC charging piles, and single gun vs. double gun configurations. Depending on the installation environment, they are available in floor-standing or wall-mounted types.
Product Parameters
| Equipment Model |
BHDC-240KW |
| AC Input |
Voltage range (V) |
380±15% |
| Frequency range (Hz) |
45~66 |
| Input power factor |
≥0.99 |
| Fluoro wave (THDI) |
≤5% |
| DC Output |
Efficiency |
≥96% |
| Output Voltage Range (V) |
200~750 |
| Output Power (KW) |
240KW |
| Maximum Output Current (A) |
480A |
| Charging Interface |
2 Guns |
| Charging Gun Length (m) |
5m (Standard) |
| System Info |
Noise (dB) |
<65 |
| Display Screen |
7 inch color touch screen |
| Operation |
Swipe card or Scan |
| Communication |
Ethernet (Standard) / 4G (Optional) |
| Dimensions (W*D*H)mm |
700*565*1630 |
| Installation |
Floor type |
Product Features
⚡ AC Input
Adjusts voltage via internal transformer to suit circuitry needs.
🔋 DC Output
Rectified DC power via modular design, supporting parallel connection for high power.
⚙️ Control Unit
Technical core managing switching, voltage, and current for safety and efficiency.
📊 Metering Unit
Essential DC watt-hour meter for accurate energy management and billing.

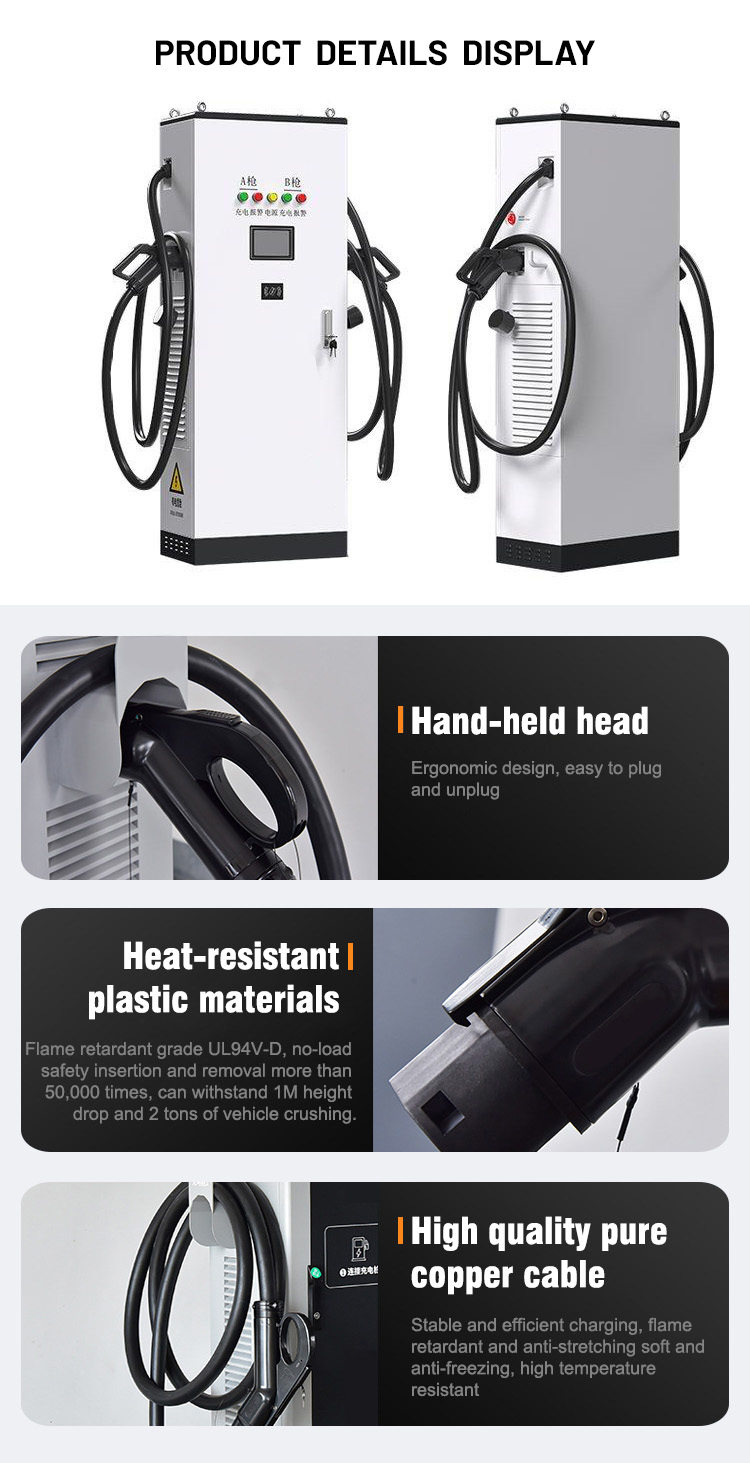

🔌 Interface
Standard-compliant connectors ensuring high compatibility and vehicle safety.
🖥️ HMI
User-friendly 7-inch touch screen for real-time monitoring and operation.

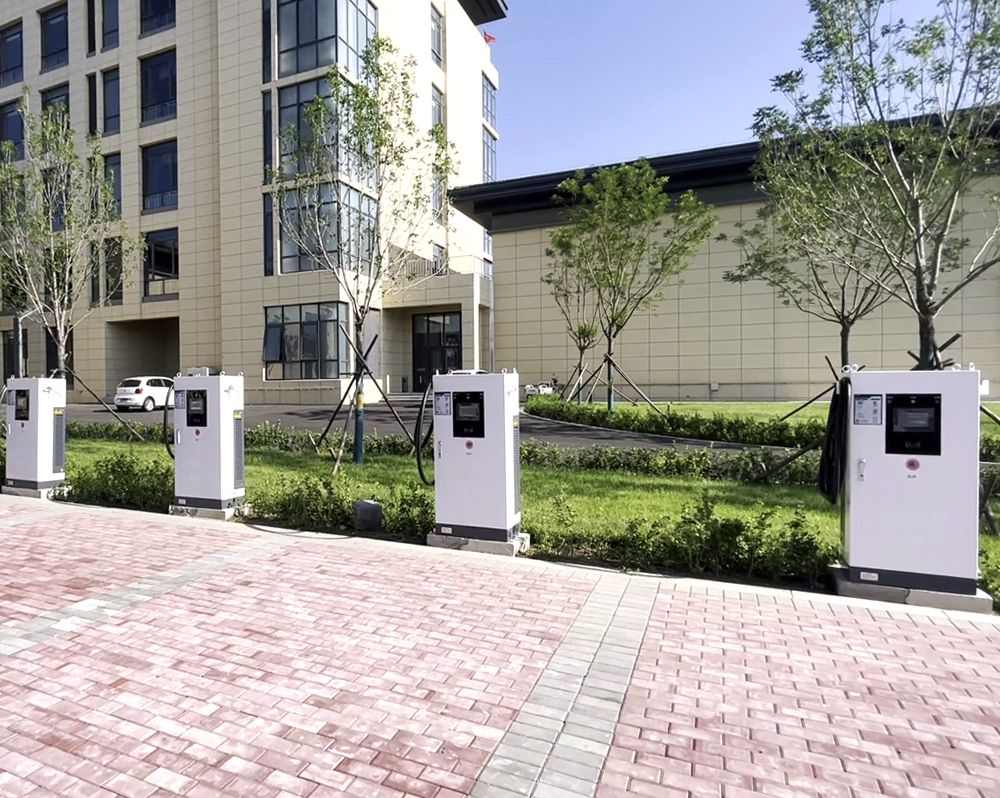

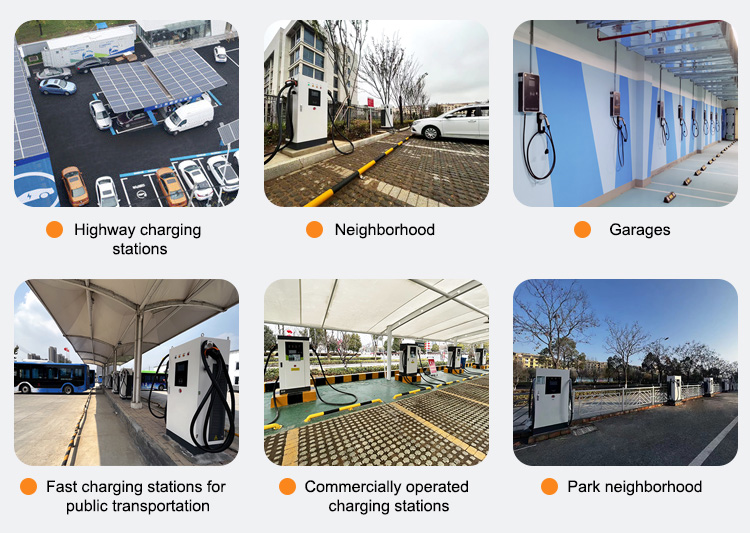

Applications
DC charging piles are widely utilized in scenarios requiring fast power replenishment:
Public Transport: Essential for city buses and taxi fleets.
Commercial Areas: Ideal for shopping malls, hotels, and industrial parks.
Highway Services: Providing rapid charging for long-distance EV travelers.
Residential Areas: Increasing demand for high-speed home charging solutions.
Frequently Asked Questions
1. What is the main advantage of a DC charging pile over an AC charger?
DC charging piles provide much higher power and directly charge the vehicle's battery, allowing for significantly faster charging times compared to standard AC chargers.
2. Does the 240KW DC charger support simultaneous charging?
Yes, models equipped with double guns can distribute power intelligently to charge two electric vehicles at the same time.
3. What safety protections are included in the DC charging station?
The units include comprehensive protection such as over-voltage, under-voltage, over-current, short-circuit, and leakage protection to ensure safe operation.
4. Is the charging pile compatible with all electric vehicle brands?
Our DC charging piles use standard communication protocols and interfaces, making them compatible with most mainstream electric vehicle brands globally.
5. Can the charging gun length be customized?
While the standard length is 5 meters, options for 8-meter or 10-meter charging guns are available to suit specific site requirements.
6. How do users start the charging process?
Users can easily initiate charging through the 7-inch touch screen by either swiping an authorized card or scanning a QR code via a mobile app.
